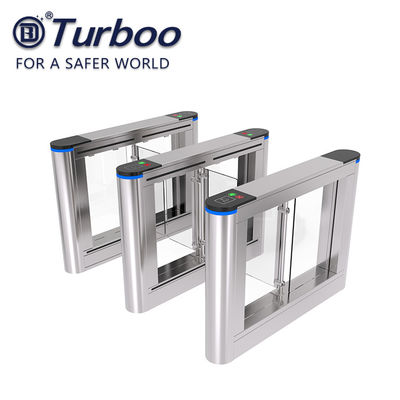

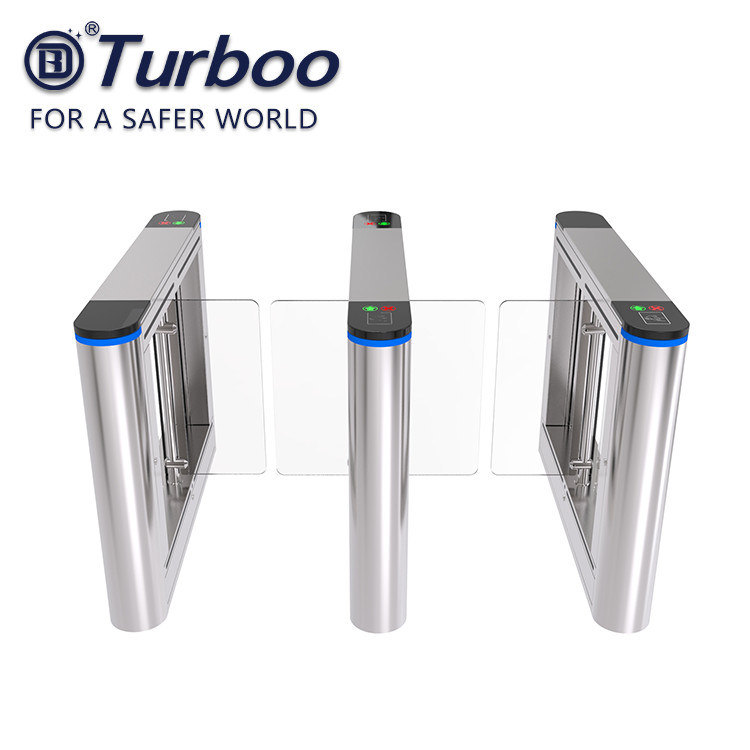

outdoor biometric access control fingerprint turnstile IP65 protection level

Swing gate

• The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
• It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
• Auto reset function, if no passing during identified card-reading time, the system will reset automatically the passagers are prohibited to pass until their second identified reading.
• The barrier can be set to delay closing 1-60s after a valid card reading.
• Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping.
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smoth passage

Features and Benefits

1.Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.

2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.

3.Display has been in use for statistics and numbers

4. A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.

5.Communication

•Dry contact relay with 12 volt or 24 volt pulse

•Rs485, or Tcp-lp communication with computer

6. Anti-tail, prevent people follow pass without verified
7. Prevent wrong direction pass, go through wrong direction will be alarm by beep
8. RFID access controller for standard, fingerprint reader, facial identify reader, barcode reader, consume system optional.
9. Combine IR detector, support people counting, prevent follower, wrong way alarm function.
10. Option temperature controller, support machine working fine in cold weather.
11. Option bluetooth remote controller, support remote open.
12. Option the crashproof function, turnstile integrated angle coder and clutch, can protect the door while people or bicycle crash it

Operating modes

1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked

Materials

1. Housing: In stainless steel AISI 304 or AISI316.
2. Barrier arm- stainless steel bar.

Specifications
