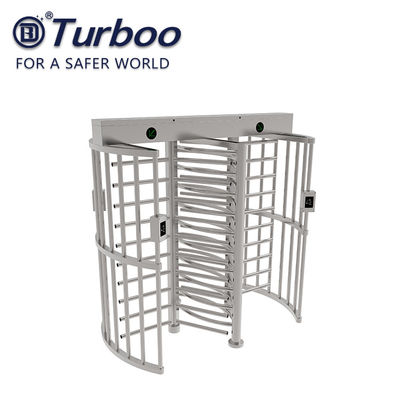

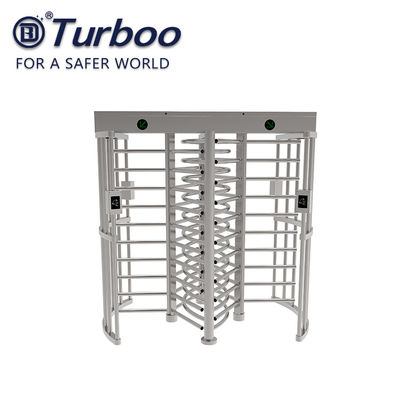

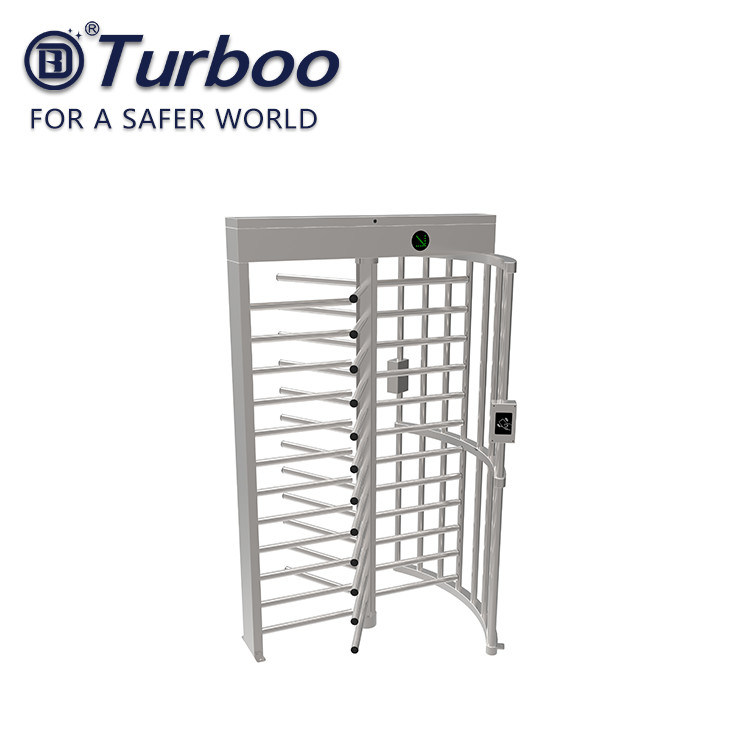

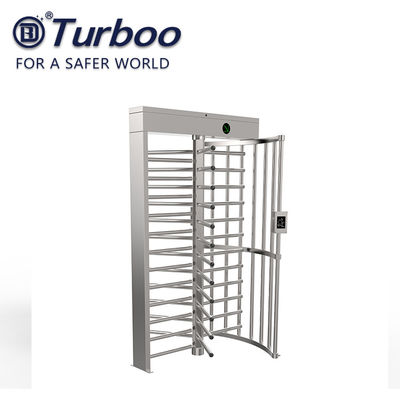

Double Side Operations Pedestrian Barrier Gate / Full Height Turnstile

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number G538
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month
Product Details
Type Full Height Turnstile Material 304 Stainless Steel
Pass Width ≤650mm Reliability 3 Million ,no Fault For The Machine Core
Environment Temperature Minus 25 Degree To 70 Degree Transit Speed 30 Persons / Min
Unlock Time 0.2s Input 220V ,50Hz
Net Weight 240kg
High Light

mechanical swing gate

,

turnstile gate systems

Leave a Message
Product Description

Double Side Operations A Full height double security passage for industrial factory





The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management. .The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.





Features and Benefits



• Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.

• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.

• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.







OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



MATERIALS

• Housing: In stainless steel AISI 304 or AISI316.

• Barrier arm- stainless steel bar.
