| Brand Name: | Turboo |
| Model Number: | H306 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, L/C |

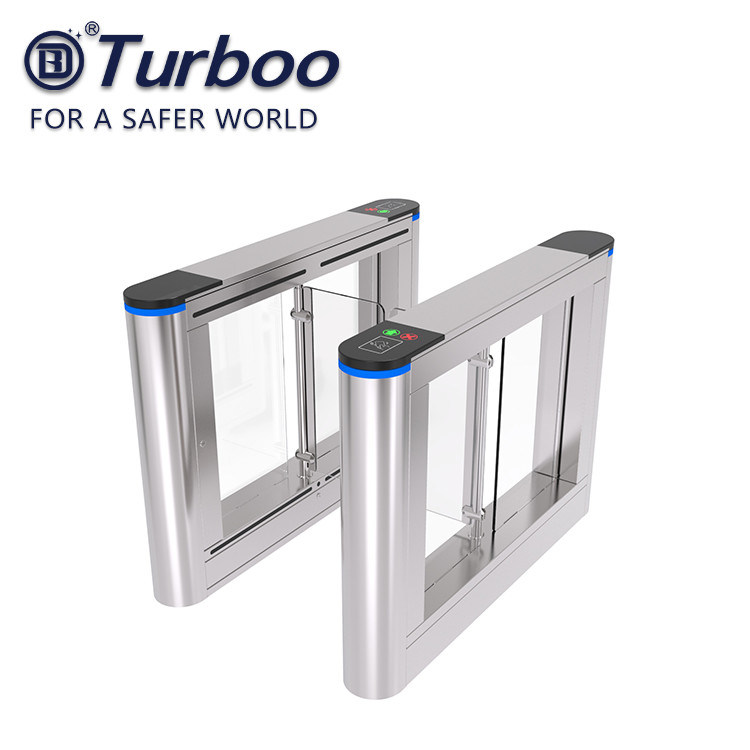

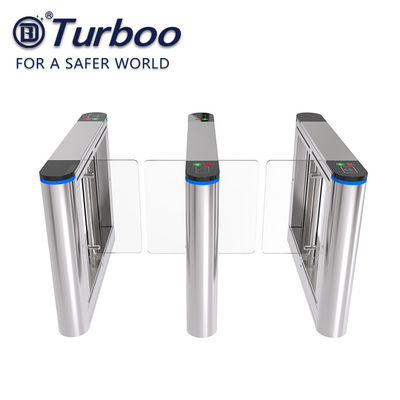

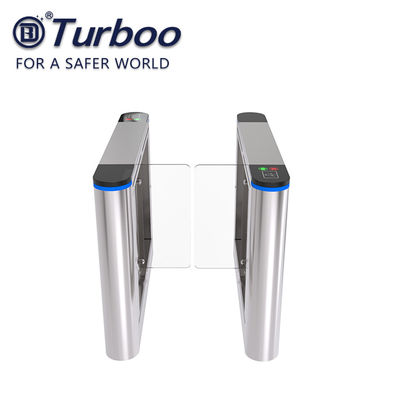

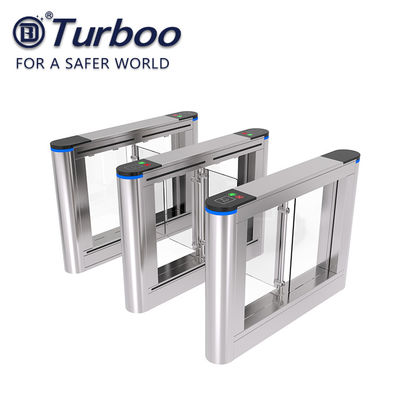

Highly cost-performance Swing Gate Semi-automatic Door
OPERATING MODES
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked
MATERIALS
• Housing: Made in stainless steel AISI 304 o AISI316.
• Barrier swings-Acrylic, PC, stainless steel frame.
FEATURES AND BENEFITS
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading
| Technical Data | Unit | H306 |
| Passage width | mm | <=900 |
| Throughput rate | p/m | 35 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 35 |
| Frequency | hz | 50-60 |
| prectection level | ip | 44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 1400X185X1020 |
| Net weight including bars | Kg | 95 |
