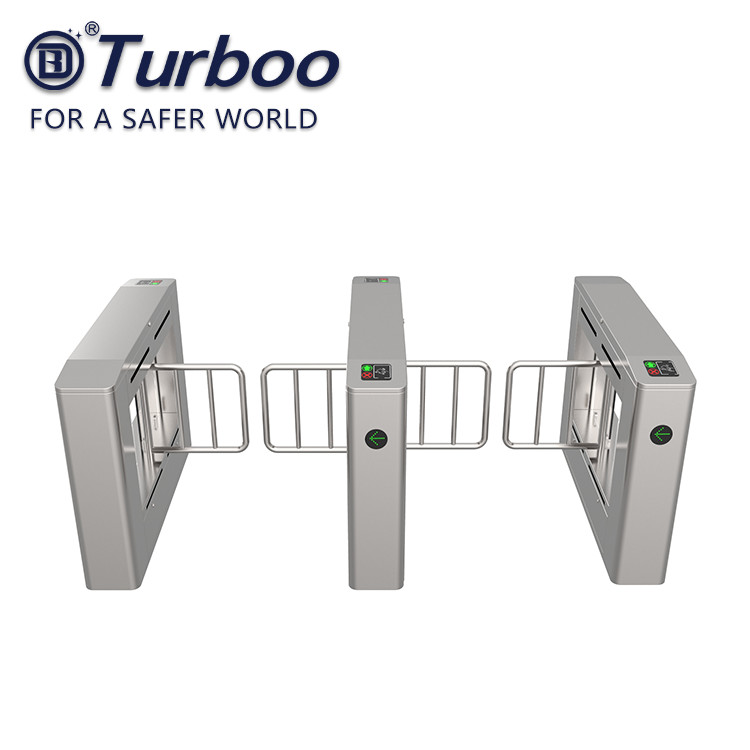

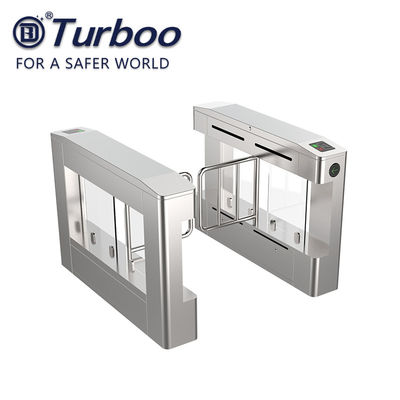

Access Control System Pedestrian Barrier Gate , Stainless Steel Swing Gate

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSize | 1400x250x980mm | Material | 304 Stainless Steel |
---|---|---|---|
Net Weight | 67kg | Input | 220V ,50Hz |
Gross Weight | 90kg | Transit Speed | 35 Persons/min |
High Light | mechanical swing gate,access control turnstiles,SS Pedestrian Barrier Gate |
Pedestrian Barrier Gate Swing Barrier Turnstile Stainless Steel Optical Pedestrian Access control
Features and Benefits
1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Flap barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: If there is no open single, arm will be holding tightly.
9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
10. Flap barrier is with standard electrical interface for the integration of various readers and writers.
11. Flap barrier can count how many passenger has passed and will show it in the LED display.
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Flap barrier can control the population inside in the control of software
Technical Data | Unit | H322 |
Passage width | mm | <900 |
Throughput rate | p/m | 35 |
Power supply | V(ac) | 100-240 |
Operational voltage | V(dc) | 24 |
Max power consumption | w | 35 |
Frequency | hz | 50-60 |
prectection level | ip | >44 |
Working temperature | degree | -25 to +70 |
Dimension excluding bars | mm | 1400X250X980 |
Net weight including bars | Kg | 67 |
