| Brand Name: | Turboo |
| Model Number: | R623 |
| MOQ: | 1 PC |
| Price: | bargain |
| Delivery Time: | 5~8 working days |
| Payment Terms: | L/C, T/T |
Product Describtion

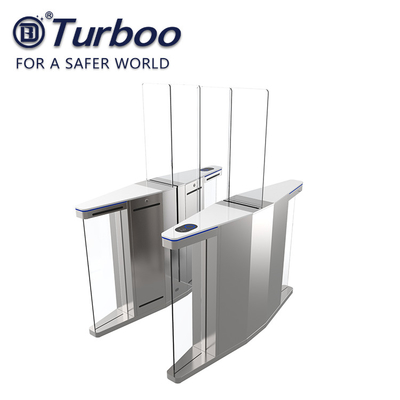

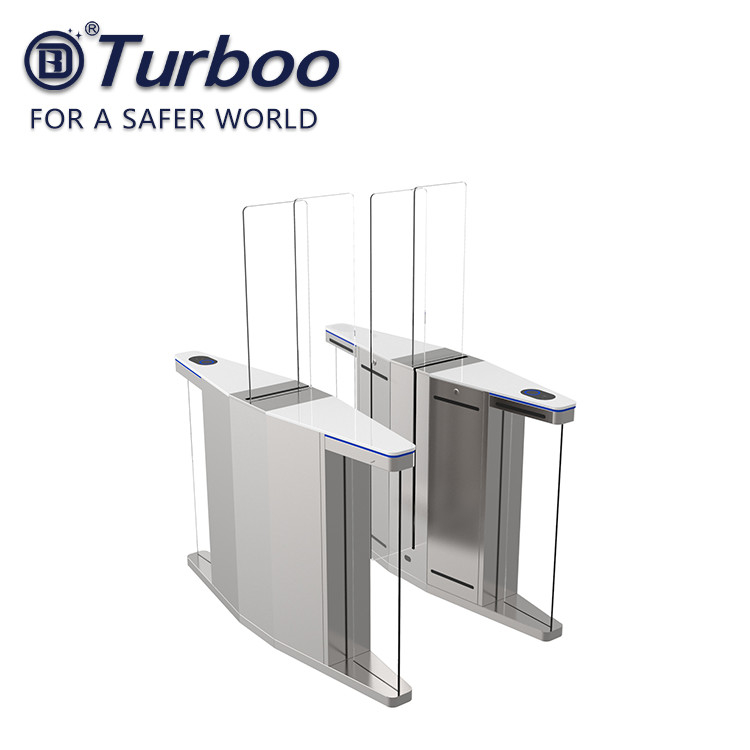

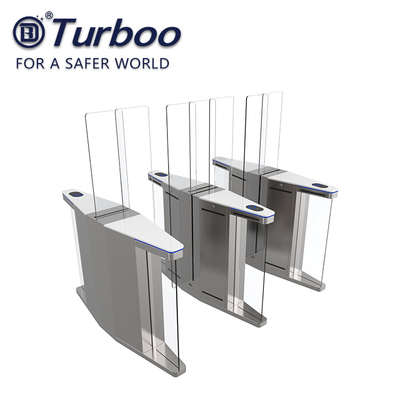

The retractable sliding gate turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable sliding gate to block the pedestrian’s path.
The sliding turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc
| Model Number: | R623 |
| Product Size: | 1500*300*980mm |
| Pass Width: | 600mm |
| Net Weight: | 140kg |
| Thickness: | 2.0mm |
| Material: | Imported SUS304+marble cover |
| Arm Material: | Tempered glass |
| Driver: | High-end sliding gate machine core +Brushless motor |
| Infrared Sensor: | 9pairs |
| Throughput rate: | 35p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 30w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
| Unlock Time: | 0.2s |
STANDARD FEATURES & FUNCTIONS
-> Obstacle safety detection with audible alarm, to convenient for users to maintain and use.
-> The running status of device can be set up through pressing the built-in small keyboard of the main control board.
-> With a variety of operating models and functions, it can be programmed to be bi-directional access, or exit by sensors.
-> Equipped with infrared photo beam sensors, mechanical double anti-folding feature, effectively protects against pedestrian accidents / injuries.
-> Reset automatically, anti-tail, anti-reverse intrusion, dual anti-pinch and stop unauthorized access.
-> Acoustic signal for announcement of unauthorised use.
-> Barrier locked in closed position to prevent force intrusion, until a valid access control signal is received.
-> Time out reclosing feature, if never detect anyone pass thru the barrier, will auto reclose at defined value. The standard default is 10 seconds. (1 to 60 second adjustable);
-> Emergency-escape function: When power failure, barrier will auto open to meet the request of fire protection. Also barrier will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
-> Standard fire alarm input interface, requires N.C normally close contact
