| Brand Name: | Turboo |
| Model Number: | R623 |
| MOQ: | 1 PC |
| Price: | Bargain |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |

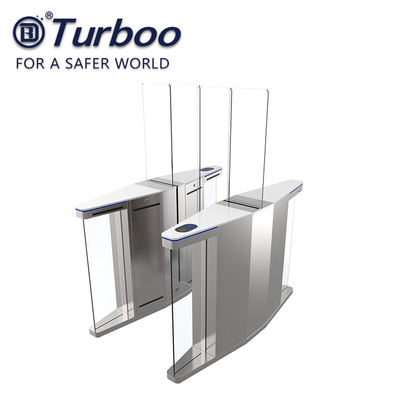

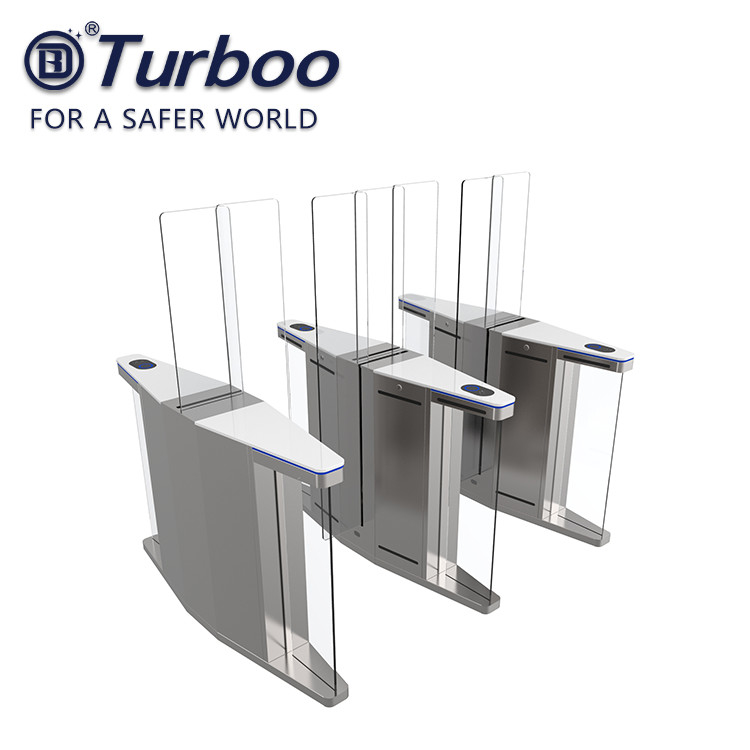

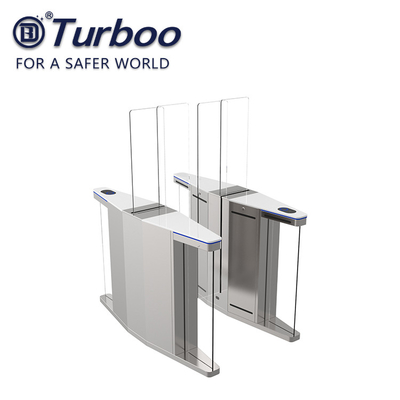

Access Control Mechanism High Turnstile Office Sliding Security Gates
R623 is a Sliding gate which ideal for indoor applications requiring free access in one direction and ban on passage in the opposite. Their elegant and versatile design presents a secure and stylish solution that can blend into numerous locations. After each passage the gate arm panel is smoothly reset to home position
| Model Number: | R623 |
| Product Size: | 1500*300*980mm |
| Pass Width: | 550mm |
| Net Weight: | 140kg |
| Thickness: | 2.0mm |
| Material: | SUS304,Snowflake Sand |
| Top cover Material: | 12mm Marble+Metal Plate |
| Arm Material: | 10mm Tempered Glass |
| Filling Panel Material: | 10mm Tempered Glass |
| Driver: | Brushless Servo Motor |
| Infrared Sensor: | 9 pairs |
| Throughput rate: | 35p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 40w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
| Unlock Time: | 0.2s |
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
6. Our LED indicator imported from American Bridgelux and Taiwan Epistar led chip.
