Full Height Turnstile Gate
Created with Pixso. Full Height Pedestrian Turnstile Gate Stainless Steel High Security IC ID

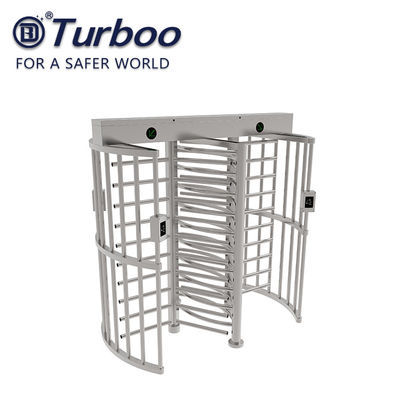

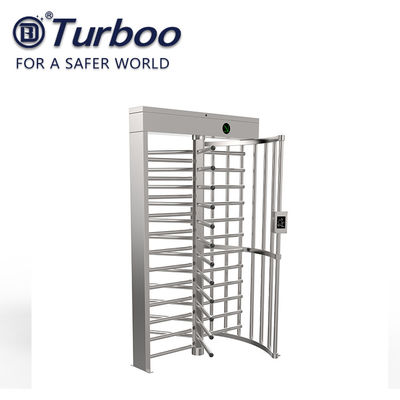

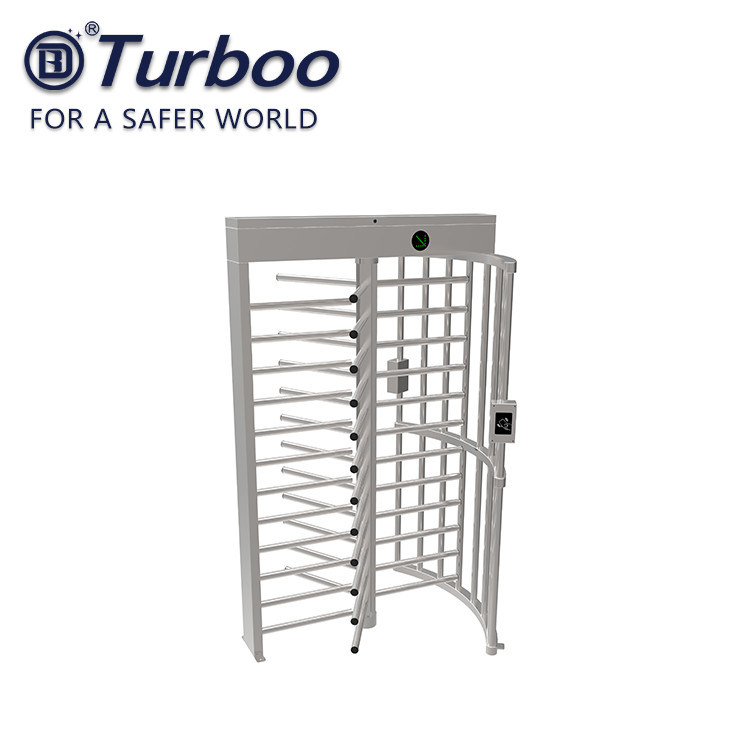

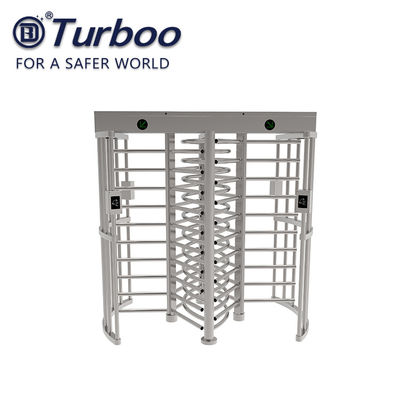

Full Height Pedestrian Turnstile Gate Stainless Steel High Security IC ID

Brand Name: Turboo
Model Number: G538
MOQ: 1 PC
Price: Negotiation
Delivery Time: 7 working days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Certification:
CE ISO9001
Size:
1400*1200*2310 Mm
Pass Width:
650mm
Net Weight:
120kg(Single Lane)
Material:
1.5mm SUS304
Top Cover:
Acrylic+ 1.5mm Metal Plate
Wings Panel:
10mm Dark Brown Transparent Acrylic
Side Panel:
10mm Dark Brown Transparent Acrylic
Machine Core:
Standard Speed Gate Machine Core+Servo Brushless Motor
Infrared Sensor:
G-TEK Square +Button Sensor 6pairs
Motor Parameters:
Reduction Ratio: 40:1 100W
Power Supply:
24V 500W
Access Controller:
Control Panel+Servo Motor+Tidy Wiring
Packaging Details:
Wooden case
Supply Ability:
1000 units per month
Highlight:

500W Full Height Turnstile

,

Stainless Steel Pedestrian Turnstile Gate

,

IC ID Pedestrian Turnstile Gate

Product Description

Hot Selling Access Control Turnstile Gate High Quality Elegant





Optional Functions

1. Sound, light alarm function: with trespassing, trailing alarm
2. Stainless steel Material :304 stainless
3. Stainless steel surface treatment : Satin treatment , brush / hairline finish , mirror finish

4. Operation Motor : Brushed motor / Brushless DC motor / Servo motor

5. The turnstile controller with counting function, LED digital display function



Features and Benefits



  • Safety first: In the fire or power-off,the door can be free to promote and ensure unimpeded
  • Sensor Analysis:The sensor got signal which real-time processing and analyzing a person or object for a variety of action, according to the results of analysis are to accurately control the action of machine core, indicator and alarm etc.
  • Two working modes: NC and NO, which is easy to deal with peak and normal use.
  • Precise positioning: precise positioning by photoelectric sensors, the work cycle of door is regular and precise positioning to ensure correct position after long work;​
  • Various Interfaces: I/O, RS232/485,CAN interfaces, which it is convenient to control signal input, and provides convenient centralized fire control interface.
  • Convenient setttings: With the screen and buttons consist of human-machine interface, the users can quickly and easily query and set channel parameters,no longer totally dependent on the host computer or extremely unfriendly pure key board to query and set parameters. This is not necessary functions, but once experience we believed that no one will forget it is great​
  • Multiple control modes: There are unidirectional, bidirectional, free passage and authorization passage to meet fully the users ‘needs, which consist of nine control modes;​

Our advantage​​

  • 90%of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly
  • We use Baoxin Stainless steel, the best brand in China
  • Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”
