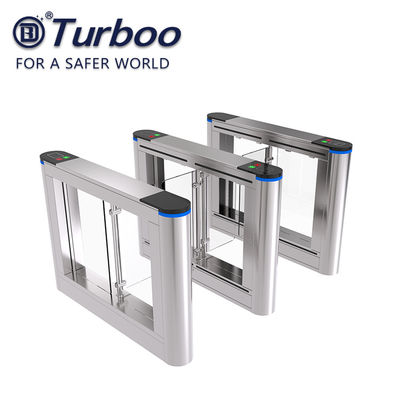

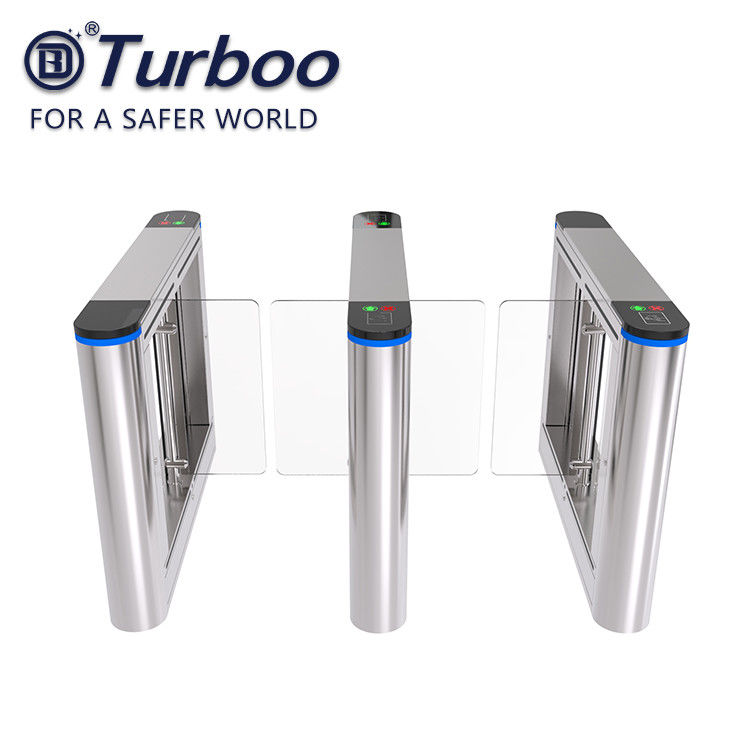

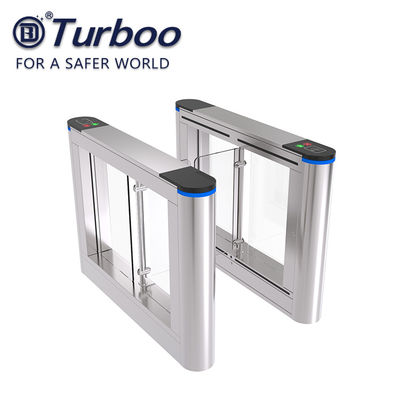

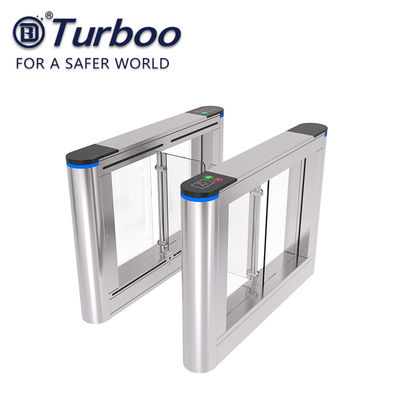

Self Closing Fast Lane Barrier Gate 304 Stainless Steel For Metro Station Mass Transit

Place of Origin Shenzhen,China
Brand Name Turboo
Certification ISO9001
Model Number H306
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Carton or Wooden Case Package
Delivery Time 7-15 Working Days
Payment Terms L/C, T/T
Supply Ability 1000 units per month
Product Details
Surface 304 SUS Color Silver
Thickness 2.0mm Motor Servo Brushless Motor
Voltage 100V-240V Driving Voltage 24 V
Environment Indoor Application Metro Station
Communication Interface TCP/IP/R485,RS485
High Light

mechanical swing gate


turnstile gate systems


Self Closing Lane Barrier Gate

Leave a Message
Product Description

Gate Barrier System Self Closing Fast lane Flap Barrier For Mass Transit In Metro Station



Intelligent barrier gate is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.


Swing Barrier Gate Description


Turboo offers a selection of standard rotating-arm tripod, half-height, and full-height turnstiles.swing barrier turnstile. This is our model H306 which can use for outside without damage by rain or water, Turnstiles monitor, count, and maintain reliable access control while permitting a high frequency of passage.Combined with infrared detector, temperature controller, revolving door series product design novel, can be widely used in subway, school, office, scenic area, gym, factory, residential, supermarket and other places.


Turnstile Model Number: H306
Product Size: 1400*185*1020mm
Pass Width: 600mm-900mm
Net Weight: 60kg
Thickness: 1.2mm body and 1.5mm top cover
Material: SUS304
Arm Material: 10mm Acrylic
Driver: Swing barrier turnstile machine core
Infrared Sensor: 5pairs
MCBF 5,000,000 Cycles
Application Airports, Hotels, Commercial buldings, etc


Swing gate H306 Fetures

  • Variable passage widths of 600 mm, 900 mm, or 1,000 mm
  • User-optimised scanner integration: card reader, QR scanner, Face device, or other device.
  • Discreet ambient lighting
  • Smart emergency exit and escape route
  • Secure separation sensors
  • Outside used type
