Wide Pass 900mm Retractable Pedestrian Barrier Gate With Red Soft Leather Baffles
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 1410x300x980mm | Material | 1.2mm SUS304 Hairline 400# |
|---|---|---|---|
| Pass Width | 900mm | Drive | Brushed Motor+Germany Belt |
| Arm Material | 15mm Acrylic+Led Light Bar | Photocells | 5 Pairs |
| Pass Rate | 35-40 Persons/minute | Operating Time | 0.2 Seconds |
| Input | 100-240V, 50/60HZ | Working Voltage | 24V |
| Communication Interface | RS485, Dry Contact | ||
| High Light | Retractable Pedestrian Barrier Gate,900mm Pedestrian Barrier Gate,900mm retractable flap barrier |
||
Product Description

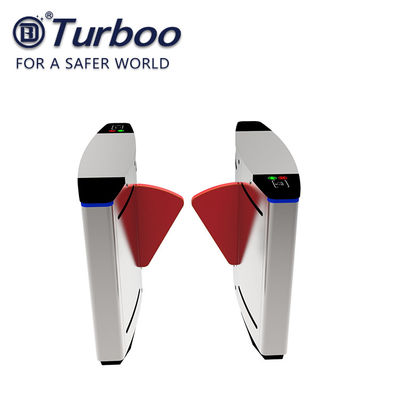

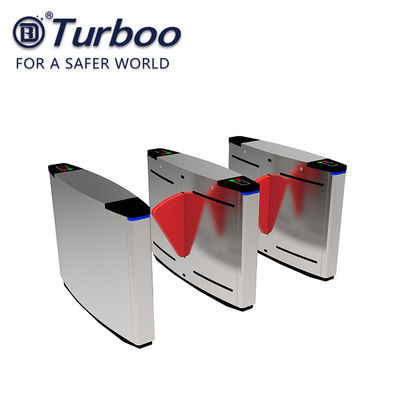

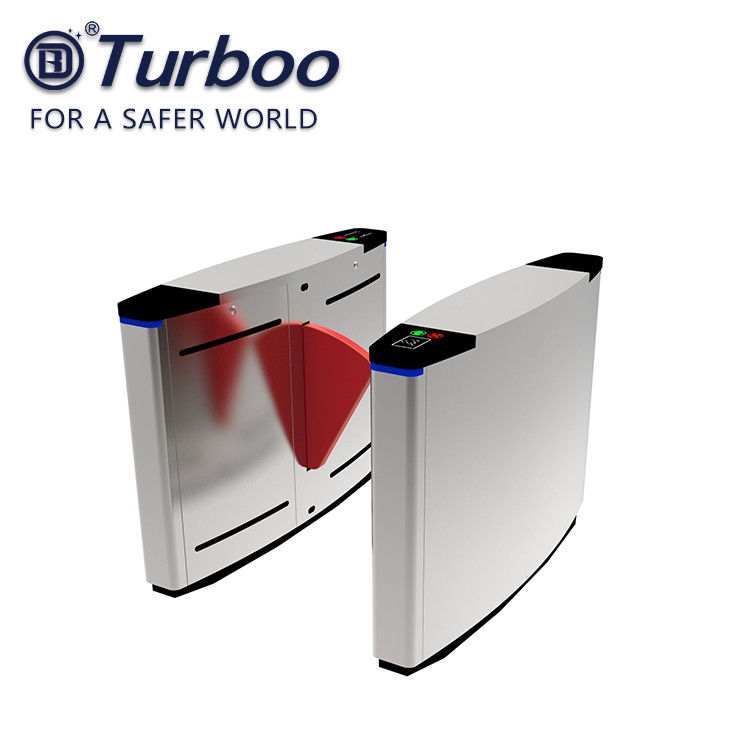

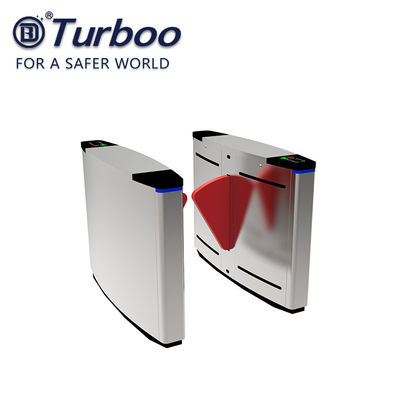

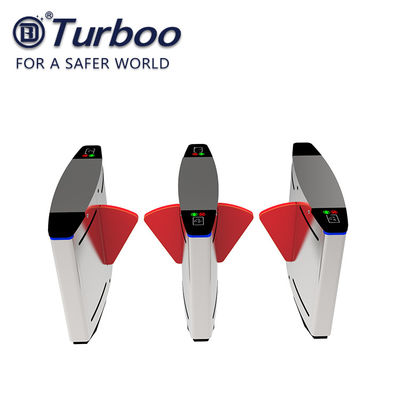

Wide Pass 900mm Retractable Pedestrian Barrier Gate With Red Soft Leather Baffles
Features and Benefits
• Wide lane 900mm, meet the handicapped usage or pass with luggage.
• Electronically controlled rapid wing movement for quick and smooth passages.
• Unique design, the flap gate wings are RGB LED illuminated.
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.
• Display has been in use for statistics and numbers
• A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.
Communication
• Dry contact relay with 12 volt or 24 volt pulse
• Rs485, or Tcp-lp communication with computer
| Technical Data | Unit | A221B |
| Passage width | mm | 900 |
| Throughput rate | p/m | 35 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 35 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25℃ ~ +70℃ |
| Dimension excluding bars | mm | 1410X320X1005 |
| Net weight including bars | Kg | 87 |
