Tripod Turnstile Gate
Created with Pixso. Semi Automatic RFID Tripod Access Control System Three Arm Turnstile

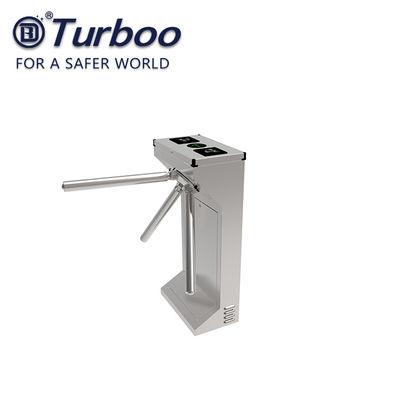

Semi Automatic RFID Tripod Access Control System Three Arm Turnstile

Brand Name: Turboo
Model Number: DL128
MOQ: 1 PC
Price: Negotiation
Delivery Time: 7-10 days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Product Size:
480*280*960mm
Pass Width:
550mm
Net Weight:
35kg
Material:
1.0mm 304 SUS Hairline #400
Pass Rate:
30-35p/m
Power Supply:
100-240V(AC)
Operational Voltage:
24V(DC)
Max Power Consumption:
35w
Working Temperature:
-25 To +70 ℃
MCBF:
5,000,000cycles
Unlock Time:
0.2s
Frequency::
50-60HZ
Packaging Details:
Wooden box
Supply Ability:
1000 units per month
Highlight:

RFID tripod access control system

,

550mm tripod access control system

,

Semi Automatic Three Arm Turnstile

Product Description

Semi- Automatic Tripod Turnstile RFID Access Control System 3 Arm Drop Arm Turnstile





Tripod Turnstiles offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The EL128 drop arm turnstile is an attractive tripod turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.



Model Number: DL128
Product Size: 480*280*960mm
Pass Width: 550mm
Net Weight: 35kg
Material: 1.0mm 304 SUS Hairline #400
Infrared Sensor: NA
Throughput rate: 30-35p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles
Unlock Time: 0.2s



OPERATING MODES


1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS



1.. Housing: Made in stainless steel AISI 304 o AISI316

2.. Barrier swings-Acrylic, PC , stainless steel frame.

Semi Automatic RFID Tripod Access Control System Three Arm Turnstile 0Semi Automatic RFID Tripod Access Control System Three Arm Turnstile 1Semi Automatic RFID Tripod Access Control System Three Arm Turnstile 2Semi Automatic RFID Tripod Access Control System Three Arm Turnstile 3
