Brand Name: | Turboo |
Model Number: | H309 |
MOQ: | 1 PC |
Price: | Negotiation |
Delivery Time: | 7~10 Working Days |
Payment Terms: | L/C, T/T |

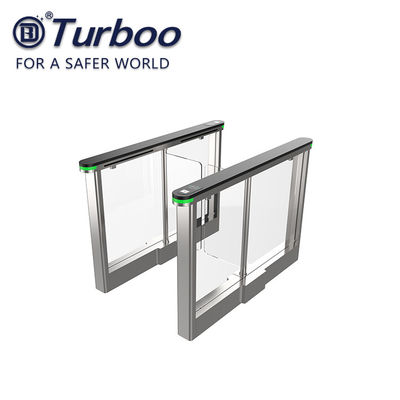

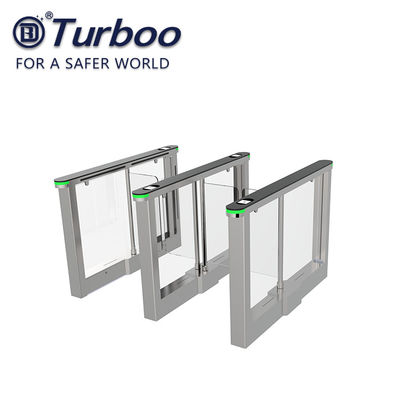

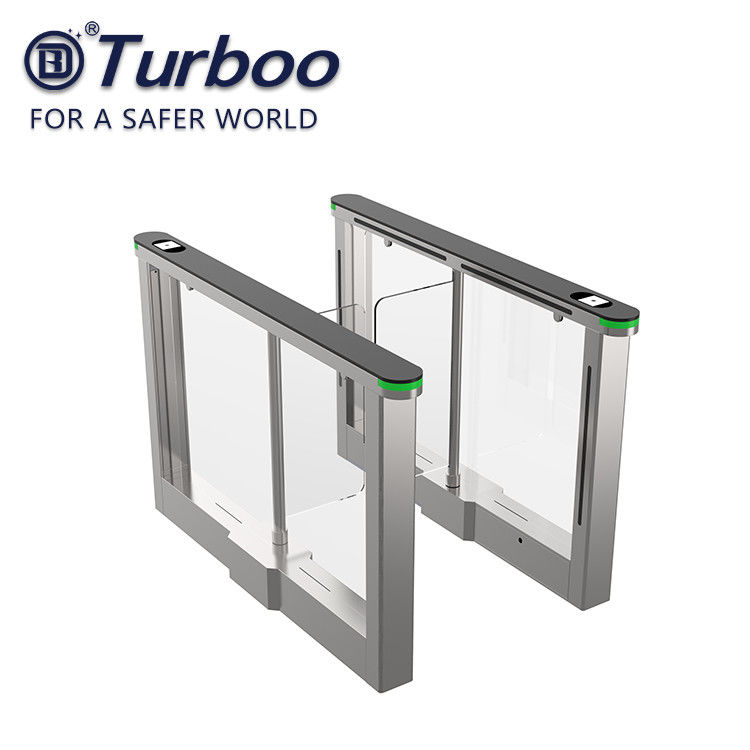

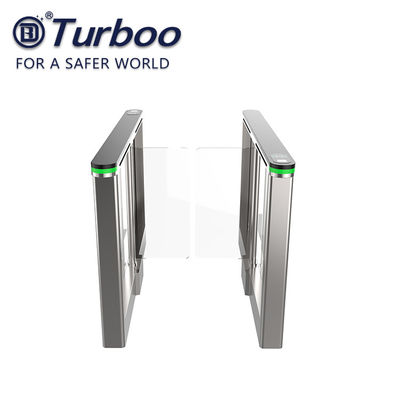

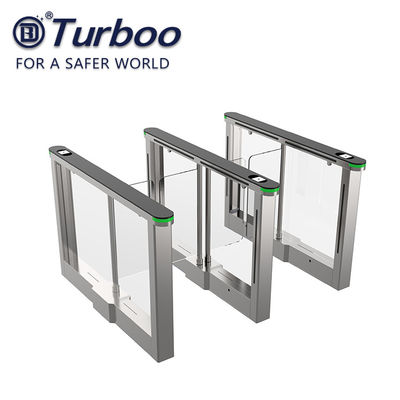

1.2mm SUS304 Optical Barrier Turnstiles For CBD Office Shopping Mall
Product Introduction
Swing Barrier Gate H309 access contro turnstiles is new elegant design for office, hotel, commercial building etc. It offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The H309 is an attractive swing turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.
Control System : All inputs are opto-coupler protected .Controlled by dry contact or grounding input. Compatible with all access control systems that provide dry contact or grounding outputs. Optional RS232/RS485/TCP IP control module is available.
System Features& Operation : Normally Closed Position: The wings are closed crossing the lane at standby. Wings open rapidly to allow passage when input is received by either direction. Internal dip switch selectable free passage by photocell detection, restricted access, controlled access on both or single direction modes are built in features.
Model No. | H309 |
Dimension | 1500*120*980mm |
Material | 1.2mm SUS304 Hairline 400# |
Flap material | 10mm Acrylic |
Passage Width | 600-900mm |
Passage direction | Single directional/Bi-directional |
Passing rate | 30-35 persons/minute |
Operating time | 0.2 seconds |
Power input | AC100-240V,50/60HZ |
Working voltage | 24V |
Working humidity | 30%~95% |
Working temperature | -40℃~+70℃ |
Working environment | Indoor/outdoor |
Communication interface | RS485, Dry contact |
Mechanism | Brushless motor |
Infrared sensor | 6 pairs |
MCBF | 5 million Cycles |
Application | Office, Hotels, Commercial buldings, etc |
![]() |
