Swing Barrier Gate
Created with Pixso. Anti Collision QR Rfid Swing Gate Turnstile With Brushless Servo Motor

Anti Collision QR Rfid Swing Gate Turnstile With Brushless Servo Motor

Brand Name: Turboo
Model Number: M368
MOQ: 1 PC
Price: Negotiable
Delivery Time: 7 days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Guangdong China(Mainland)
Certification:
CE ISO9001
Pass Width:
600-900mm
Material:
2.0mm Cold Rolling Sheet With Painting
Input Voltage:
100-240V
Working Voltage:
24V
Pass Rate:
35 Persons/minute
Operating Time:
0.2 Seconds
Infared Sensro:
14 Pairs
MCBF:
5,000,000 Cycles
Communication Interface:
RS485,Dry Contact
Packaging Details:
Wooden Case Package
Supply Ability:
1000 units per month
Highlight:

Rfid Swing Gate Turnstile

,

QR Swing Gate Turnstile

,

QR Swing turnstile barrier gate

Product Description

Anti Collision QR Rfid Swing Gate Turnstile With Brushless Servo Motor





Description



M368 swing gate which is made of cold rolling sheet with painting in a modern style. It has anti-collision and anti-clamp function. It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.



Model Number: M368
Product Size: 1700*200*1000mm
Pass Width: 600-900mm
Thickness: 2.0mm
Material: 2.0mm cold rolling sheet with painting
Infrared Sensor: 14 pairs
Pass rate: 35 p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 100w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles





FEATURES AND BENEFITS



Safety first: In the fire or power-off, the door can be free to promote and ensure unimpeded



Various Interfaces: I/O, RS232/485,CAN interfaces, which it is convenient to control signal input, and provides convenient centralized fire control interface.



Two working modes: NC and NO, which is easy to deal with peak and normal use. Multiple control modes: There are unidirectional, bidirection-
al, free passage and authorization passage to meet fully the users ‘needs, which consist of nine control modes;



Precise positioning: precise positioning by photoelectric sensors, the work cycle of door is regular and precise positioning to ensure correct position after long work;



Indicator control: the indicator is able to show three status of front and back indicator (allow through, no through, system maintenance).Also which show the passage direction and passage status (A to pass,B to pass,no through), According to reasonable indicator control, which is convenient for users to management.



Machine core control:the two sides machine core work with coordination and synchroniztion, and the control system provide convenient management functions. the passage controller can control the machine core of all functions and settings of all parameters, which is reasonable for consisting of the various components of the machine core operation flow, and which is more intelligent and safety to design a access control function

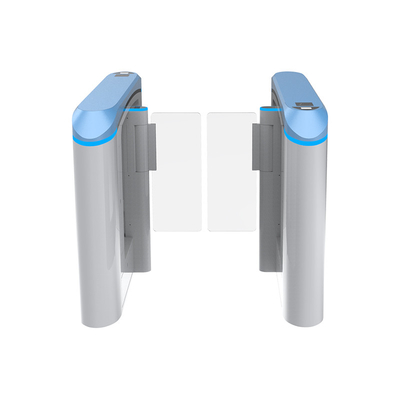

Anti Collision QR Rfid Swing Gate Turnstile With Brushless Servo Motor 0

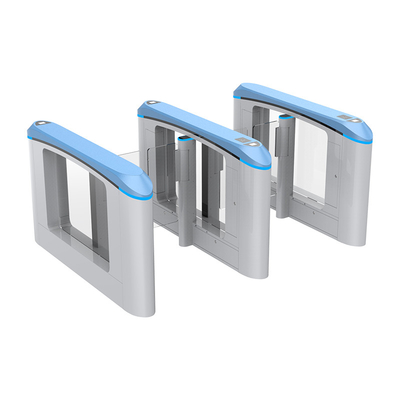

Anti Collision QR Rfid Swing Gate Turnstile With Brushless Servo Motor 1
