Access Control Swing Gate Turnstile Acrylic Metal Plate Pedestrian Speed Gate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Size | 1400*185*1020mm | Pass Width | 600-900mm |
|---|---|---|---|
| Material | 1.5/1.2 Mm SUS 304 | Top Cover Material | Acrylic+Metal Plate |
| Input Voltage | 100-240V | Working Voltage | 24V |
| Pass Rate | 35-40 Persons/minute | Operating Time | 0.2 S |
| Infared Sensro | 5 Pairs | Motor Power | 35W |
| High Light | Pedestrian Swing Gate Turnstile,Acrylic Metal Swing Gate Turnstile,SUS 304 Pedestrian Speed Gate |
||
Product Description

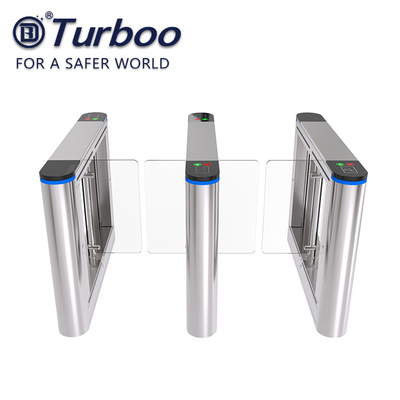

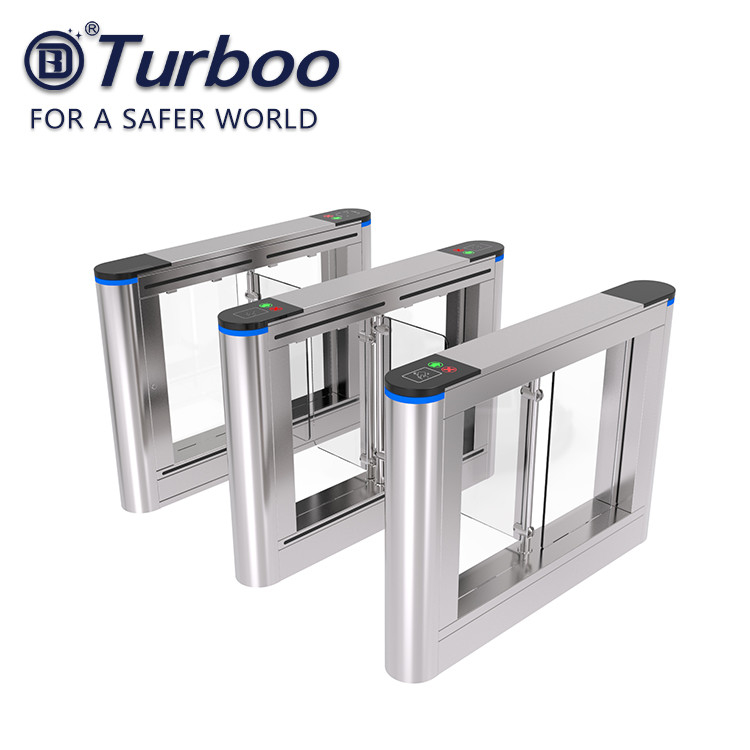

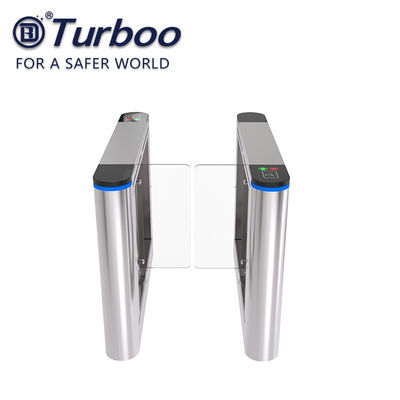

Pedestrian speed gate barrier access control turnstile Swing Barrier Gate
Description
H306 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.
| Model Number: | H306 |
| Product Size: | 1400*185*1020mm |
| Pass Width: | 600-900mm |
| Net Weight: | 65kg |
| Thickness: | 1.2mm |
| Material: | SUS 304 Hailine 400# |
| Top cover Material: | Acrylic+1.5mm SUS304 |
| Filling Panel Material: | 10mm Transparent Acrylic |
| Arm Material: | 10mm Transparent Acrylic |
| Driver: | Brushed Motor |
| Infrared Sensor: | 5pairs |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 35w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
Features and Benefits
1.Support connection fire alarm
2.Opening function in case of power off
3.Service life 5-8 years
4.Multiple intelligent anti-clamping
5.Support sound and light alarm
6.Provide maintenance guidance
Our advantage:
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
