Pedestrian Barrier Gate
Created with Pixso. Indoor Barrier Flap Pedestrian Barrier Gate Safety Security Face Recognition Turnstile Terminal

Indoor Barrier Flap Pedestrian Barrier Gate Safety Security Face Recognition Turnstile Terminal

Brand Name: Turboo
Model Number: H203N
MOQ: 2 PCS
Price: Negotiable
Delivery Time: 7 days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Guangdong China(Mainland)
Certification:
ISO9001 CE
Product Size:
1400*300*990mm
Pass Width:
550mm
N.W.:
68kg
TOP COVER Thickness:
1.5mm+1.2mm
Material:
SUS304 Hairline 400#
Infrared Sensor:
5 Pairs
MCBF:
5,000,000cycles
Arm Material:
15mm Acrylic With LED Light Bar
Machine Core:
DC Brushed Motor
Working Environment:
Indoor Only
Packaging Details:
Wooden Case Package
Supply Ability:
1000 units per month
Highlight:

Security Face Recognition Turnstile Terminal

,

Face Recognition Pedestrian Barrier Gate

,

Flap Pedestrian Barrier Gate

Product Description

Barrier Flap Pedestrian Barrier Gate Safety Security Face Terminal Recognition Turnstile Indoor Use



The turnstile model H203N indoor use flap barrier turnstile is an attractive access control security turnstile that is easily capable of handling high volume and abusive conditions.



The structure is made of Stainless SUS#304 material, with a
thickness of 1.5mm and 1.2mm, and it is foldable to form a shape. It possesses properties suitable for both exterior and interior use within a building.

Automatic flap barrier gate offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building.



Flap Gate Model
H203N
Barrier Turnstile Size
1400x300x990mm
Gate Material
1.5mm top cover + 1.2mm cabinet, SUS304
Flap Barrier Gate Pass Width
550mm only
Passage direction
Bi-directional
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working voltage
24V
Working humidity
30%~95%
Flap barrier Working temperature
-20℃~+75℃
Flap barrier gate Working environment
Indoor use only
Flap barrier turnstile Communication interface
RS485, Dry contact
Turnstile Mechanism
DC Brushed Motor
Security Turnstile Infrared sensor
5 pairs
Flap gate MCBF
5,000,000 Cycles
Application
Station, Sea ports, GYM, Shool, etc






Pedestrian Barrier Gate Features and Benefits as below:



● luxurious position for card tapping or attaching devices with status indicator lights.


● The width of the device is only 30 cm.


● The status of the operation is indicated by changing lights that inform the user throughout the process.


● It supports various installation formats, including both single-wing and double-wing configurations.


● It supports a maximum width of up to 90 cm for the lane.


● It can be connected to external devices for remote access and control in various formats.


● It features a maximum of 5 pairs of high-security sensors divided into 3 working groups.


● It offers a wide range of 13 selectable operating modes for customization.


● It supports bi-directional operation, allowing movement in two directions.

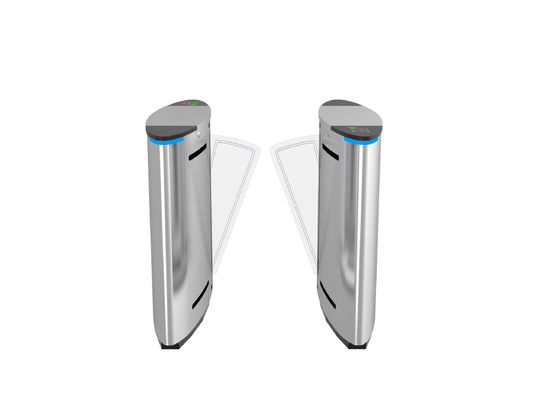

Indoor Barrier Flap Pedestrian Barrier Gate Safety Security Face Recognition Turnstile Terminal 0
