Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate

Place of Origin Guangdong
Brand Name Turboo
Certification CE
Model Number EL128
Minimum Order Quantity 2pcs
Price Negotiation
Packaging Details Wooden box
Delivery Time 7-10 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50pcs/week
Product Details
Product Size 480*280*960mm Pass Width 550mm
Net Weight 42kg Material 1.0mm 304 SUS Hairline #400
Mechanism Solenoid Lock Pass Rate 30-35p/m
Power Supply 100-240V(AC) Operational Voltage 24V(DC)
Max Power Consumption 35w Working Temperature -25 To +70 ℃
MCBF: 5,000,000cycles Unlock Time 0.2s
Frequency: 50-60HZ
High Light

waist height turnstile

,

pedestrian gate access control

Leave a Message
Product Description

Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate





Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 0

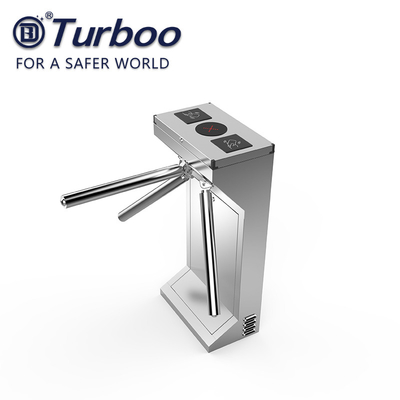

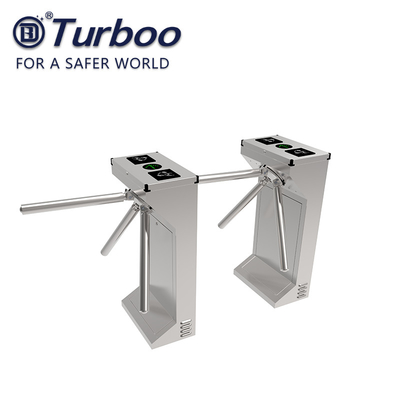

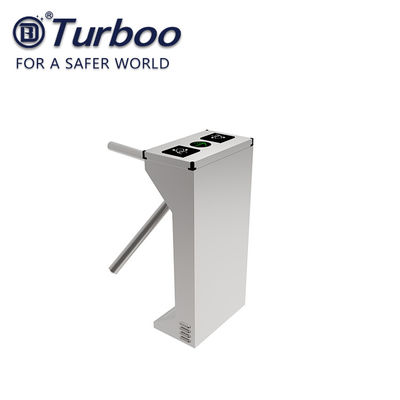

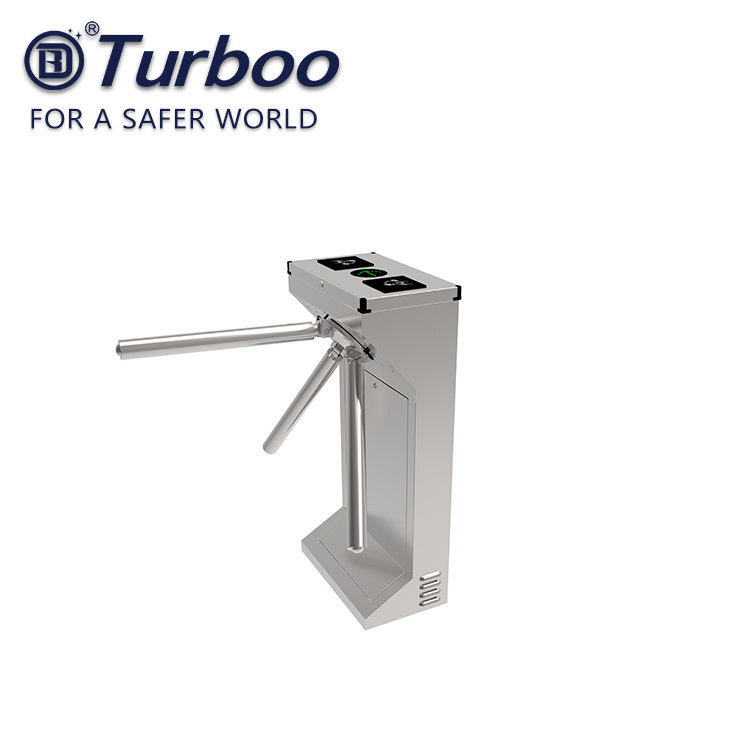

EL128 Tripod turnstile gate is a gate channel with simple shape, high cost performance, high safety and reliability, which can effectively realize single pass.The lock head and lock rod of the Tripod turnstile gate are made of 304 stainless steel, and the lock rod and lock head are welded evenly, beautiful, not easy to fall off,Dust-proof and waterproof ability,is of great adaptability to the environment, suitable for indoor and outdoor.



Model Number: EL128
Product Size: 480*280*960mm
Pass Width: 550mm
Net Weight: 42kg
Material: 1.0mm 304 SUS Hairline #400
Mechanism: Solenoid Lock
Infrared Sensor: NA
Throughput rate: 30-35p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles
Unlock Time: 0.2s



Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 1Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 2Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 3



Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 4



The design of the movement is reasonable and reliable, the internal hydraulic device automatically buffering, smooth operation, long service life.
With the function of power down pole, can also add a remote control for pole down control, easy to manage and deal with emergencies.
There is LED indicator light on the cover of the box. When the card is used, green arrow will indicate the direction of passage.If brush illegal card, then prompt Red Cross LED light.
"With memory" and "without memory" functions can be set (when setting "with memory", it can be used for the occasion when the group ticket of the scenic spot is too many people).
With automatic reset function, that is, after obtaining the power over the gate, there is no power over the gate within the set time, the tripod turnstile gate automatically canceling the power, and the lock state is restored.
Waterproof, sun protection, cold and high temperature resistant.
With a personalized installation interface, compatible with IC ID card and other smart CARDS.
With uniform and standard external electrical interface, it can be freely connected with various reading and writing equipment.
It can be extended to automatic identification system to realize the functions of access control, attendance and charge.
Can be used with other types of products.



OPERATING MODES:
1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS:

1.. Housing: Made in stainless steel AISI 304 o AISI316.

2.. Barrier swings-Acrylic, PC , stainless steel frame.



Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 5

Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 6



Factory:



Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 7



Showroom:



Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 8



Testing Room:



Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 9



Project Case:



Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 10



Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 11



Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 12

Stainless Steel RFID Fingerprint Security Tripod Turnstile Gate , 100-240V Access Control Tripod Turnstile , Tripod Gate 13



1. How about your company’s actual strength?



We are the top 3 in turnstile field in China. We have more than 100 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 5000 square meters in total.


2. Shall we do promissory note settlement?


We can accept confirmation, irreversible promissory note of 15 days at most.


3. How about the lead time?


Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.


4. How long is your warranty period?


13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.

:
5. How about your package?


Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
