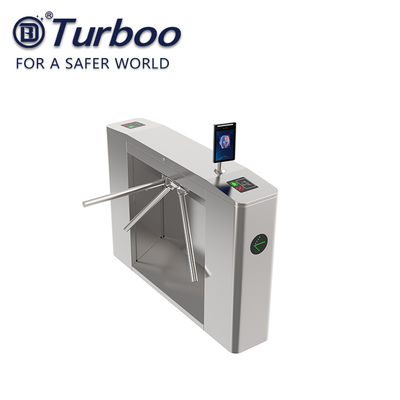

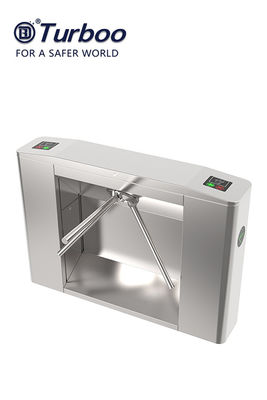

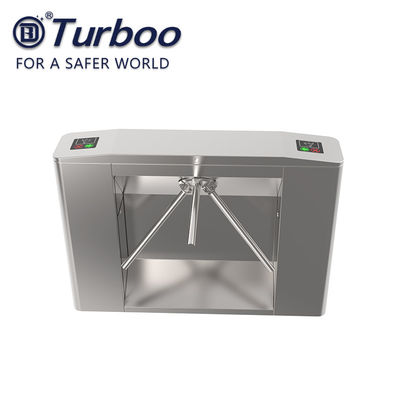

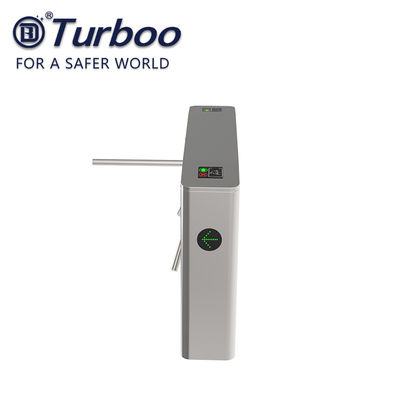

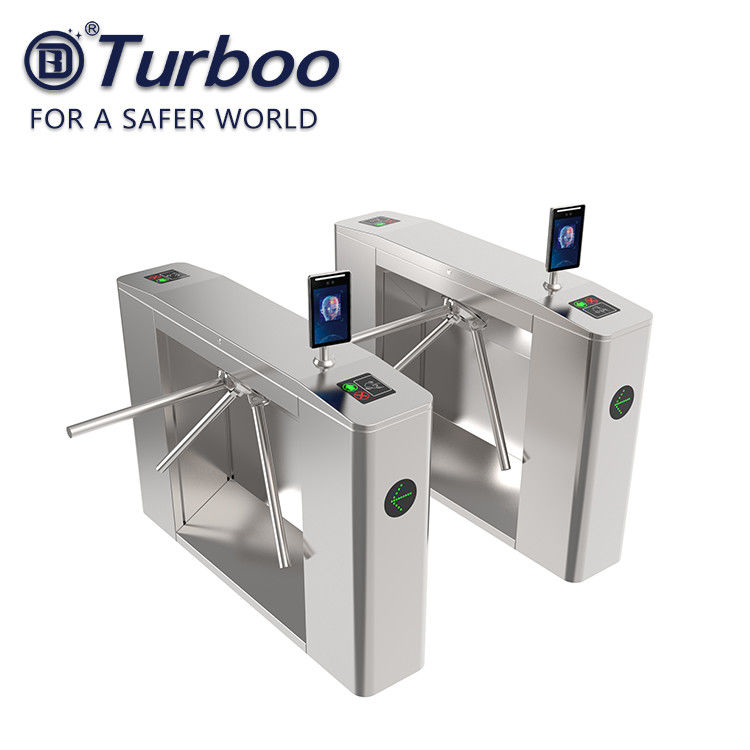

RFID Three Arm Tripod Turnstile Gate , Vertical Tripod Turnstile For School

Place of Origin Guangdong, China (Mainland)
Brand Name Turboo
Certification CE
Model Number K149
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details Wooden Case Package
Delivery Time 2 weeks
Product Details
Metrial 304 Stainless Steel Or 316 Stainless Steel Thickness Full 1.5mm
Weight 62kg (Tripod Turnstile) Passage Width ≤650mm
Input 220V,50HZ Or 110 V ,50HZ Size 1400*280*980mm
High Light

pedestrian gate access control


turnstile security systems

Leave a Message
Product Description

Rfid Three Arm Tripod Turnstile Gate For School/Library/Stadium Using
Automatic access control system card reader waist height electronic tripod turnstile
Tripod turnstile
The standard tripod turnstile series are made of 304 stainless steel, which is rustproof, durable, and can resist external destroy. Its structure of cuboid framework and the arm not only provide people with civilized and orderly transit manner but also prevent the illegal in and out effectively. Meanwhile, m the emergency, the arm will drop automatically. According to different control modules, this series can be divided into full-auto type, semi-auto type and manual type.Our turnstiles are used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access security.
Features and Benefits
1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable;
2. Running stable, little noise and no mechanical impact;
3. Self-checking-power-on function, if power on, turnstile will auto get to be held
4. Various working means can be set in the control panel menu, namely bi-direction card reading passing, or one direction card
reading passing and another passing limits, or one direction card reading passing and another free passing and more;
5. If power off, arm will fall automatically while power on later, arm should be lift by hand, first press the arm with a little force and then lift it manually;
6. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements;

7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer
far control and management can be realized by computer;
8. It will count the persons who have been passed through automatically and will show the number by LED directly(LED is optional);
9. Passing direction will be shown by LED and passengers will know which direction is allowed to pass;

10. Card reading memory or card reading without memory function can be set in the control panel menu according to your
11. If working with software, the total-in-population can be set to satisfy special request;
12. Re-position function. after card reading, if passenger not through within the specific time, time and the limit passing time

length can be set;
13. Card mounting is available;
14. Uncompleted wheel turning system is adopted for locking the turnstile in zero, and unlocking will be more reliable and accurate;


Our advantage


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
6. Our LED indicator imported from American Bridgelux and Taiwan Epistar led chip.
7. We deal with the cover by original drawing which is better than manual drawing.
8. It usually take us at least 8 procedures to weld and polish the edge so that it looks glossy and feels much smooth.
9. We fasten the wire by Cabling Channel. It can protect the wire so well and make it look tidy.
Product Description
Product description for Turnstile gate HC149 access control rfid three arm turnstile for schoollibrarystadium

Technical DataUnitHC149
Passage widthmm<650
Throughput ratep/m35
Power supplyV(ac)100-240
Operational voltageV(dc)24
Max power consumptionw30
prectection levelip>44
Working temperaturedegree-25 to +70
Dimension excluding barsmm1400X280X980
Net weight including barsKg62
