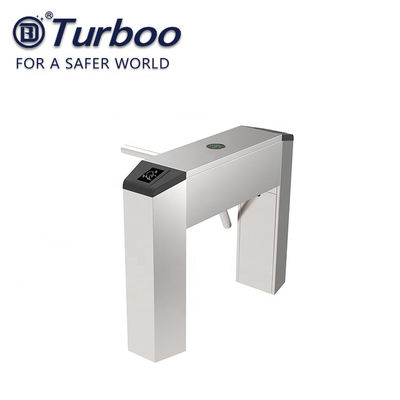

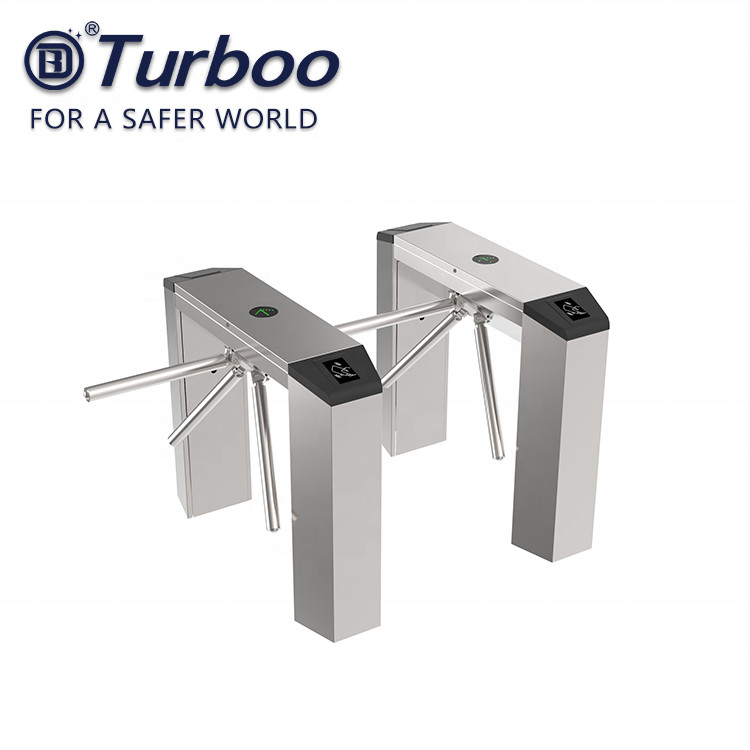

304 Stainless Steel Tripod Turnstile Gate / Turnstile Entry Security Systems

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number E142
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms L/C, T/T
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material 304 Stainless Steel Thickness Full 1.2mm Or Full 1.5mm
Passage Width 550mm Package Wooden Box Package
Input 220V,50HZ Or 110 V ,50HZ Testing 3 Million No Fault
Driving Voltage 24 V Environment -25~+70
High Light

pedestrian gate access control

,

turnstile security systems

,

304 Stainless Steel Tripod Turnstile Gate

Leave a Message
Product Description

Full or semi automatic pedestrian access control tripod turnstile security gate





All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries, The unique dropping arm feature provides a fail safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in. for example, a reception area. Our turnstiles are used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.



Features and Benefits



1. Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.
2. A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
3. Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
4. Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.
5. Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
6. Single or bi-directional function in mechanical and electrical versions.
7. Automatic reset of barrier arms after each passage.
8. Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.
9. Adjustable time out delay.



Operating modes



1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked



Materials

1. Housing: In stainless steel AISI 304 or AISI316.
2. Barrier arm- stainless steel bar.
