Durable Retractable Flap Barrier Turnstile Biometric Access Control System

Brand Name: Turboo
Model Number: E242
MOQ: 2pcs
Price: Negotiation
Delivery Time: 7 days
Payment Terms: L/C, T/T,
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Size:
1400x280x980mm
Material:
304 Stainless Steel
Input:
220V ,50Hz
Package:
Wooden Box
Temperature:
-25~+70℃
Transit Speed:
35 Persons/min
Reliability Of The Core:
3 Million ,no Fault
Time Needed For Opening:
0.2 Seconds
Packaging Details:
Wooden box
Supply Ability:
1000 units per month
Highlight:

drop arm turnstiles

,

security access gates

,

Durable Flap Barrier Turnstile

Product Description

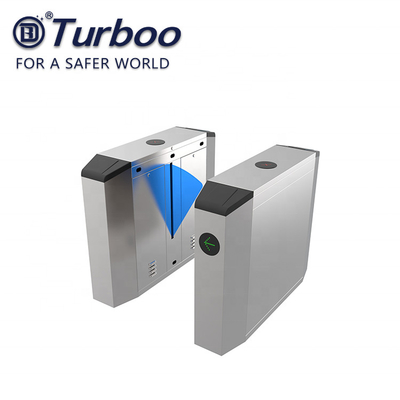

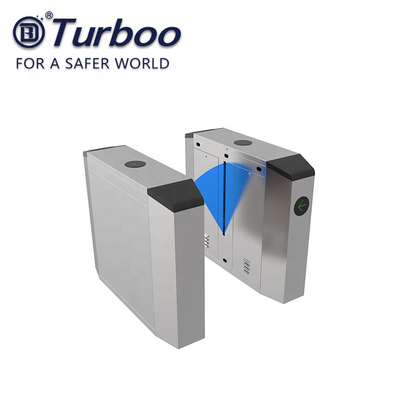

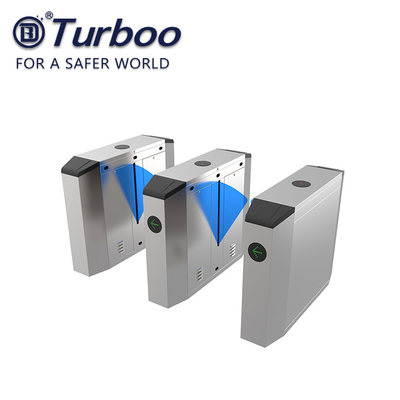

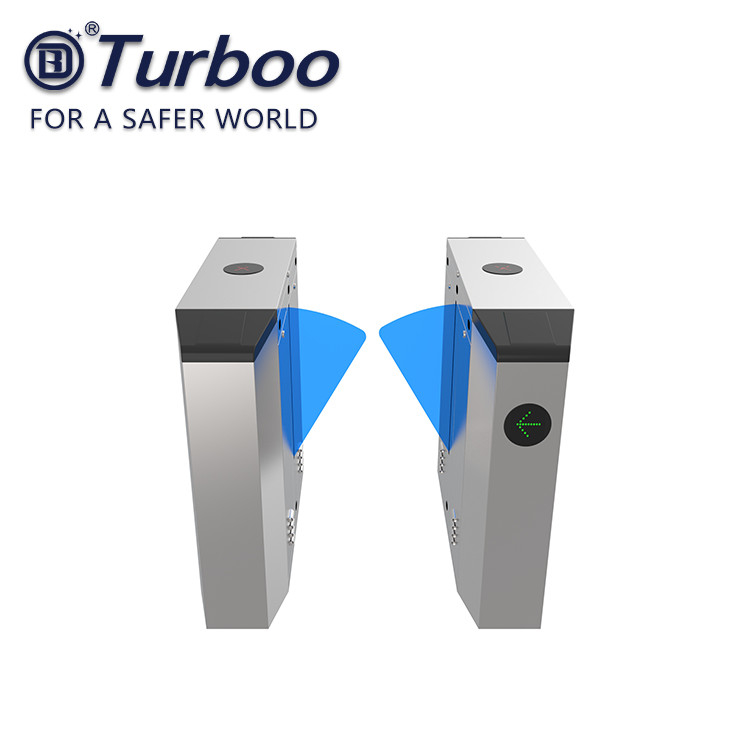

Retractable biometric flap gate barrier turnstile for access control system



All the gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries, interfaced with a PC through a RS232(RS485,TCP-IP)line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in. for example, a reception area. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.



Technical Data E242
Dimension 1200x280x980mm
Unlock time 0.2s
Passage width ≤550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 50kg
Input 12v dry contact





Features and Benefits



1. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

3. Display has been in use for statistics and numbers

4. With voice and strobe light alerts

5. A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

6. Double anti-clipping function, photocell antic lipping and mechanical anti-clipping

7. Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading

8. The barrier can be set to delay closing in 1-60s after a valid card-reading
