Brand Name: | Turboo |
Model Number: | H203 |
MOQ: | 1 PC |
Price: | Negotiation |
Delivery Time: | 7-15 working days |
Payment Terms: | L/C, T/T, |

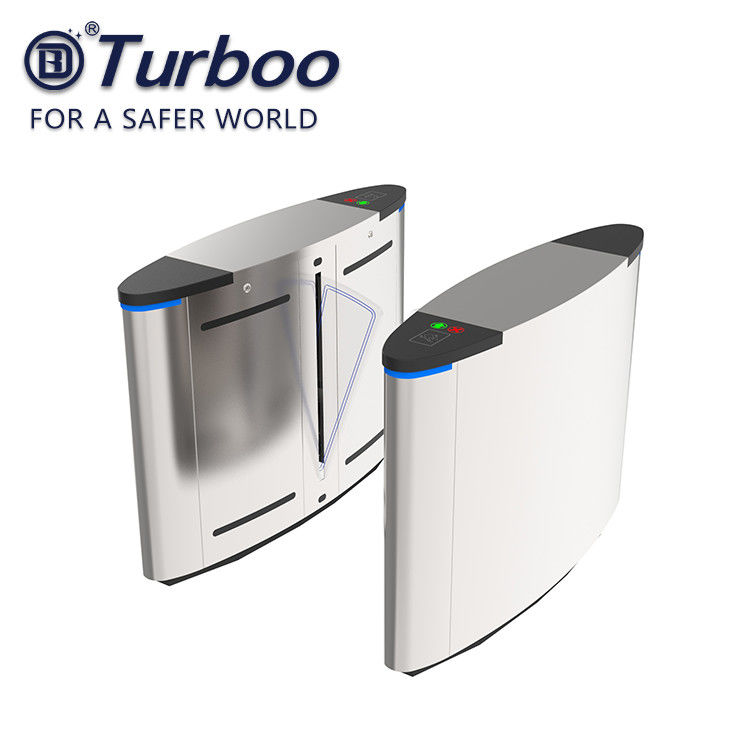

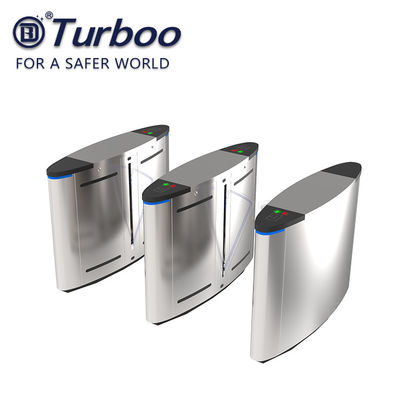

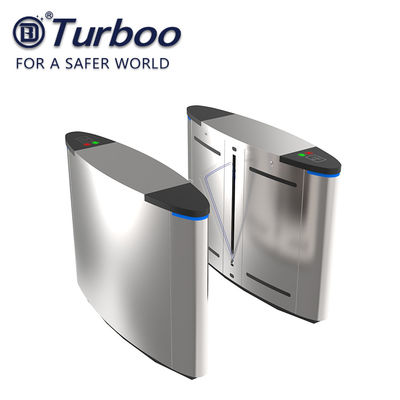

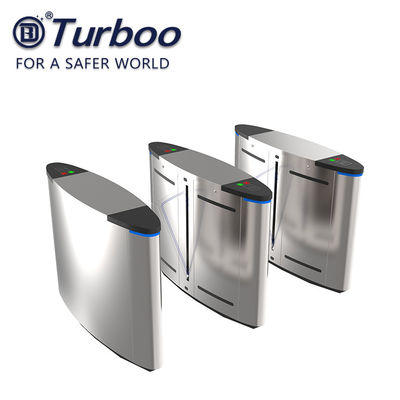

Half Height Integrated Automatic Flap Barrier Turnstile With Face Recognition Access control gate turnstile , flap barrier gate , pedestrian barrier gate , flow control gate , SUS304 Stainless steel
1. Discroption:
H203 flap barrier turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
2. Parameter:
Model Number: | H203 |
Product Size: | 1400*300*990mm |
Pass Width: | 550mm |
Net Weight: | 75kg |
Body material | 1.2mm stainless steel |
Top cover Material: | 8mm Acrylic+ 2.0mmSUS304 Hair Line stainless steel |
Wing Panel Material: | 15mm Transparent Acrylic |
Driver: | Brushed motor |
Infrared Sensor: | 5 pairs |
Pass rate: | 35-40p/m |
Power Supply: | 100-240V(AC) |
Operational Voltage: | 24V(DC) |
Power Supply | 10K 30W |
Frequency: | 50-60hz |
Working Temperature: | -25 to +70 ℃ |
Access Controller | 24V 120W Controller box, Tidy wiring |
MCBF: | 5,000,000cycles |
3. Features:
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.
• Display has been in use for statistics and numbers
• A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.
4.Communication
• Dry contact relay with 12 volt or 24 volt pulse
• Rs485, or Tcp-lp communication with computer
5. Operating Mode:
1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked
![]() |
