Automatic Tri - Channel Playground Security Turnstile Gate With Card Reader
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Metrial | 304 Stainless Steel Or 316 Stainless Steel | Thickness | Full 1.0mm |
|---|---|---|---|
| Size | 1200*280*980mm | Weight | 35kg (Turnstile) |
| Passage Width | ≤550mm | Package | Wooden Case Package |
| Testing | 3 Million No Fault (Turnstile) | Input | 220V,50HZ Or 110 V ,50HZ |
| Driving Voltage | 24 V | Environment | -25~+70 |
| High Light | waist height turnstile,turnstile security systems,Tri Channel Security Turnstile Gate |
||
Product Description

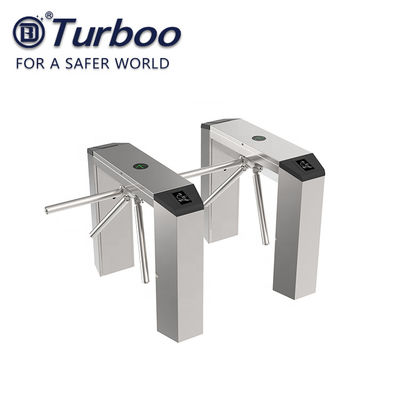

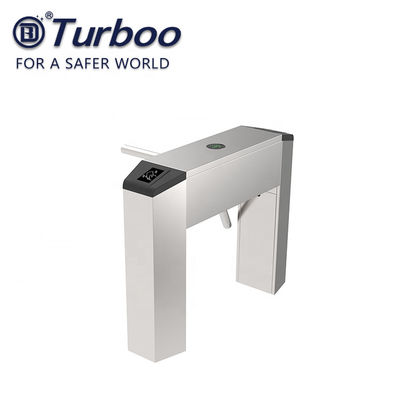

Tripod Turnstile Gate Automatic Tri-Channnel Playground Security Turnstile Gate
• Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.
• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.
• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
• Single or bi-directional function in mechanical and electrical versions.
• Automatic reset of barrier arms after each passage.
• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.
• Adjustable time out delay.
Our advantage
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
6. Our LED indicator imported from American Bridgelux and Taiwan Epistar led chip.
7. We deal with the cover by original drawing which is better than manual drawing.
8. It usually take us at least 8 procedures to weld and polish the edge so that it looks glossy and feels much smooth.
9. We fasten the wire by Cabling Channel. It can protect the wire so well and make it look tidy.
Product Description
| Technical Data | Unit | E142 |
| Passage width | mm | <550 |
| Throughput rate | p/m | 35 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 30 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 1200X280X980 |
| Net weight including bars | Kg | 35 |
