Tripod Turnstile Gate
Created with Pixso. Custom Semi - Auto RFID Access Control Turnstile Gate , Waist High Turnstile

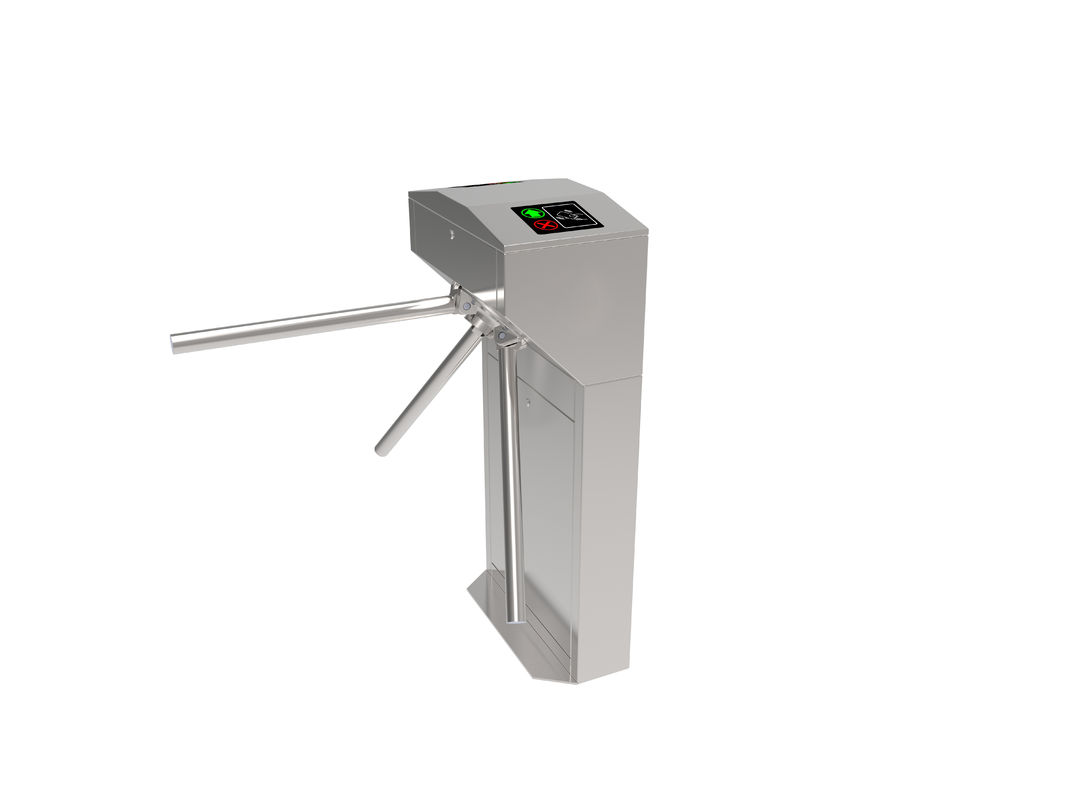

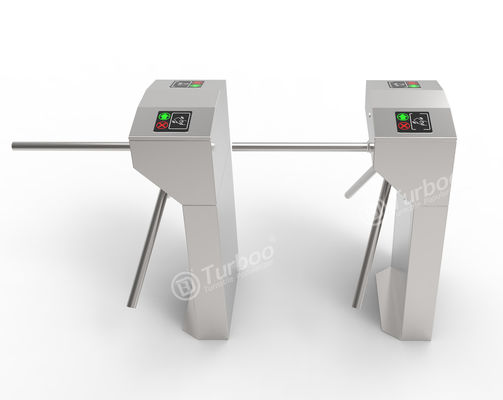

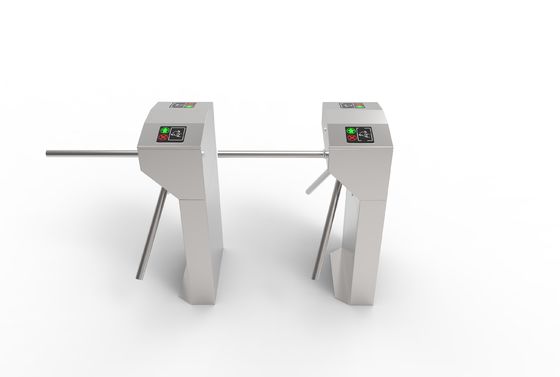

Custom Semi - Auto RFID Access Control Turnstile Gate , Waist High Turnstile

Brand Name: Turboo
Model Number: HL145
MOQ: 1 PC
Price: Negotiation
Delivery Time: 1 Week
Payment Terms: T/T, L/C,
Detail Information
Place of Origin:
SHENZHEN ,China
Certification:
CE,ISO9001
Thickness:
Full 1.2mm Or Full 1.5mm
Size:
480*280*980mm
Passage Width:
560mm
Package:
Wooden Case Package(Tripod Turnstile)
Testing:
3 Millions No Fault
Input:
220V,50HZ Or 110 V ,50HZ
Driving Voltage:
24 V
Environment:
-25~+70
Packaging Details:
Wooden case package,1450*330*1130MM
Supply Ability:
1000 units per month
Highlight:

biometric security system

,

security access gates

,

RFID Access Control Turnstile Gate

Product Description

Wholeslae custom Semi-Auto rfid access control tripod turnstile gate



Features and Benefits



• Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system  and achieve access attendance, fees or function.

• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.

• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Adjustable time out delay.



Communication



• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer



Technical Data Unit HL145
Passage width mm <560
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 480X280X980
Net weight including bars Kg 49


Custom Semi - Auto RFID Access Control Turnstile Gate , Waist High Turnstile 0Custom Semi - Auto RFID Access Control Turnstile Gate , Waist High Turnstile 1Custom Semi - Auto RFID Access Control Turnstile Gate , Waist High Turnstile 2Custom Semi - Auto RFID Access Control Turnstile Gate , Waist High Turnstile 3
