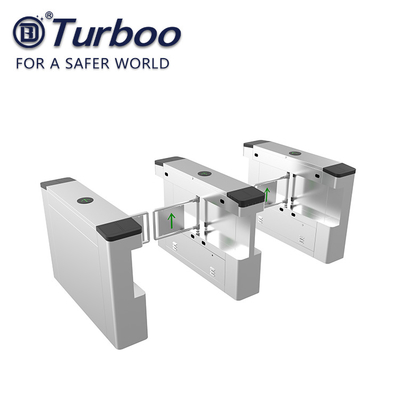

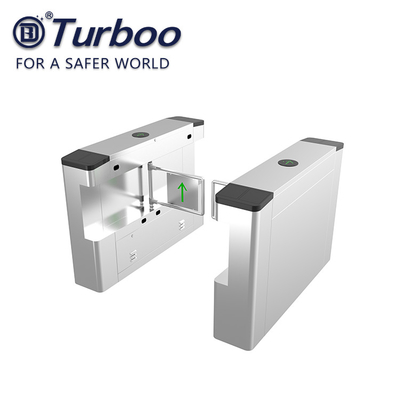

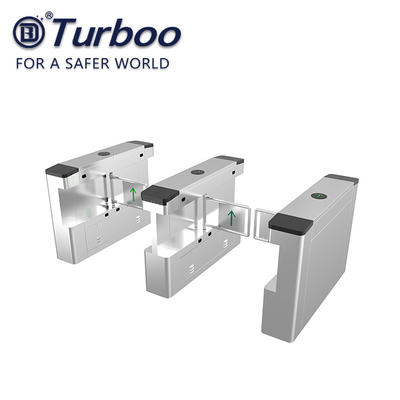

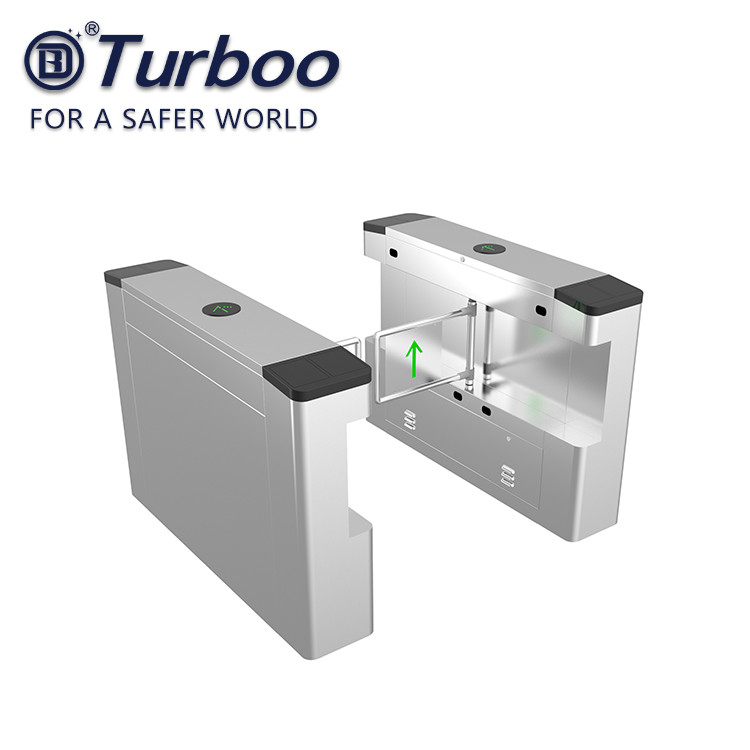

Swing Barrier Gate / Access Control Turnstile Gate High Brightness Indicator

Place of Origin Guangdong
Brand Name Turboo
Certification CE
Model Number Y348
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden box/ Heavy carton package
Delivery Time 2 weeks
Payment Terms L/C, T/T,
Supply Ability 1000 units per month
Product Details
Size 1200x280x980mm Material 316/304 Stainless Steel
Input 220V ,50Hz Package Wooden Box
Temperature -25~+70℃ Transit Speed 35 Persons/min
Reliability Of The Core 3 Million ,no Fault Time Needed For Opening 0.2 Seconds
High Light

biometric security system

,

security access gates

Leave a Message
Product Description
Secure Passage Factory Used Swing Barrier Turnstile Gate Machine



Product Description

Swing barrier gate series are intelligent passage management equipment , researched, developed and produced by our company.The equipment is integrated with dedicate mechanical transmission, microprocessor control and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.

Features and Benefits



1. Can be integrated with all kinds of access control systems,survilience system. time attendance and clocking system etc.
2. Unidirectional or bidirectional access control can be achieved via external button or remote control.
3. Auto –reset, swing arm will auto close within certain time(multi grade time adjusting) after open,
4. Mechanical anti-jam, the swing arm will not close if it detects people or objects inside the aisle.
5. All-round humanized self-protection.When people or objects blocks it’s movement ,system will continuously detect 1-5 times( each time of 5s )and stay in normal close state, part opponents are under dormant state.When system cannot detect reset signal(arm hits the housing),system will auto detect1-5times(each time of 5s),by then, arm return auto back to normal lock state(note :even if the reset optocoupler is damaged, system still works , motor or circuit won’t get burnt. )
6. Open and close speed can be adjusted from 0.8-2s with 16 grades.
7. Normal open and normal close can be controlled by external button.(for group pass)
8. High brightness indicator, clearly show even in daytime or under sunshine.
9. Humanized passing indicator :flashing green arrow for authorized passing, dark under normal state.
10. Arm drop when power off to meet the fire safety requirements.
11. Swing arms can set synchronously for turnstiles with double movement.



OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked
