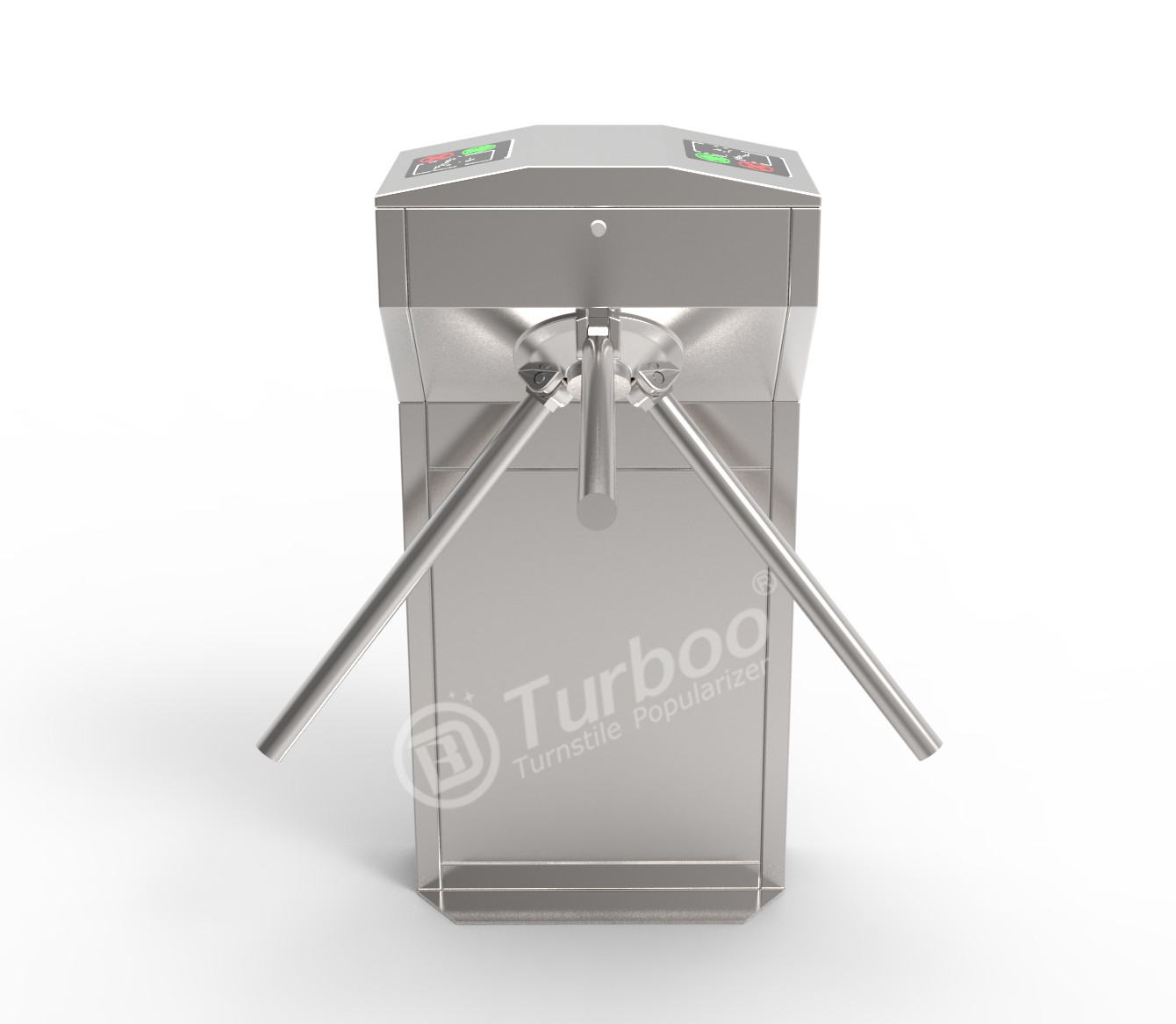

Vertical Full Welding Tripod Turnstile Gate Pedestrian Access Control

Name: Vertical Full Welding Tripod Turnstile Gate Pedestrian Access Control
Brand: Turboo Automation Co., Ltd
SKU: HL145
Availability: InStock

Brand Name:	Turboo
Model Number:	HL145
MOQ:	1 PC
Price:	Negotiable
Delivery Time:	1 Week
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN ,China

Certification:

CE,ISO9001

Thickness:

Full 1.2mm Or Full 1.5mm

Size:

475*280*980mm

Passage Width:

550mm

Package:

Wooden Case Package(Tripod Turnstile)

Testing:

3 Millions No Fault

Input:

220V,50HZ Or 110 V ,50HZ

Driving Voltage:

24 V

Environment:

-25~+70

Packaging Details:

Wooden case package

Supply Ability:

1000 units per month

Highlight:

waist height turnstile

pedestrian gate access control

Full Welding Tripod Turnstile Gate

Product Description

Electronic Turnstile Gates Automatic Access Control System Card Reader Waist Height Electronic Tripod Turnstile

Features and Benefits

• Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.

• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.

• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.

• Adjustable time out delay.

Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer

Product description

Technical Data	Unit	HL145
Passage width	mm	<550
Throughput rate	p/m	35
Power supply	V(ac)	100-240
Operational voltage	V(dc)	24
Max power consumption	w	30
Frequency	hz	50-60
prectection level	ip	>44
Working temperature	degree	-25 to +70
Dimension excluding bars	mm	475X280X980
Net weight including bars	Kg	49

Vertical Full Welding Tripod Turnstile Gate Pedestrian Access Control 0
