RFID Access Control Tripod Turnstile Gate / Three Arm Turnstile For Library

Place of Origin Guangdong, China (Mainland)
Brand Name Turboo
Certification CE
Model Number K149
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden Case Package
Delivery Time 1 week
Payment Terms L/C, T/T
Supply Ability 1000 units per month
Product Details
Metrial 304 Stainless Steel Or 316 Stainless Steel Thickness Full 1.6mm
Weight 63kg (Tripod Turnstile) Passage Width ≤550mm
Input 220V,50HZ Or 110 V ,50HZ Size 1400*280*980mm
High Light

waist height turnstile

,

turnstile security systems

,

rfid three arm turnstile

Leave a Message
Product Description

Tripod Turnstile Gate Access Control Rfid Three Arm Turnstile For School/Library/Stadium





Features and Benefits



• Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.

• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.

• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.

• Adjustable time out delay.



Our advantage



1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.

2. We use Baoxin Stainless steel, the best brand in China.

3. Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”.

4. We take 3M glue imported from American instead of the glass glue which other counterparts use

5. Germany “Optibelt” and American “Gates” is the belt we are using now.

6. Our LED indicator imported from American Bridgelux and Taiwan Epistar led chip.

7. We deal with the cover by original drawing which is better than manual drawing.

8. It usually take us at least 8 procedures to weld and polish the edge so that it looks glossy and feels much smooth.

9. We fasten the wire by Cabling Channel. It can protect the wire so well and make it look tidy.



Product Description



Product description for Turnstile gate HC149 access control rfid three arm turnstile for schoollibrarystadium



Technical Data Unit K149
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1400X280X980
Net weight including bars Kg 63

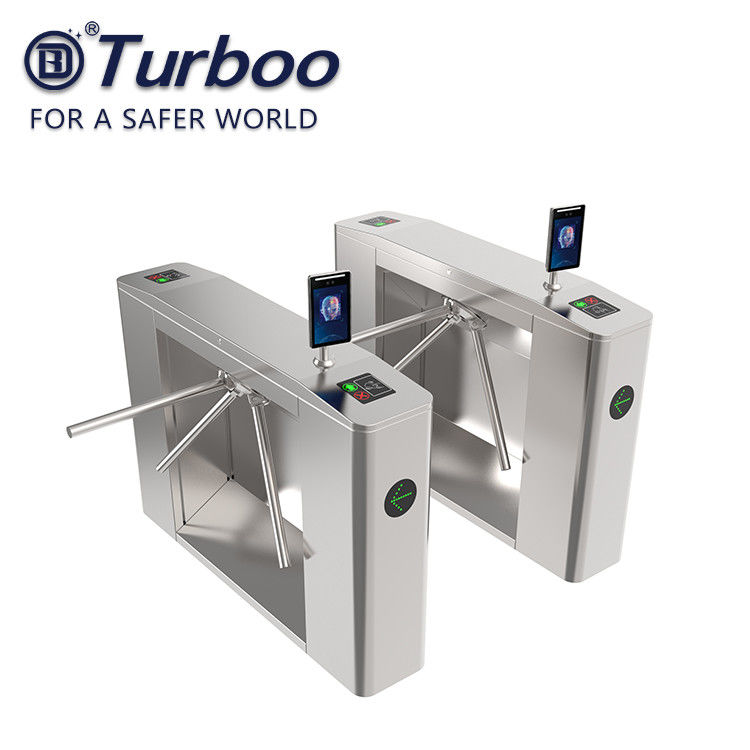

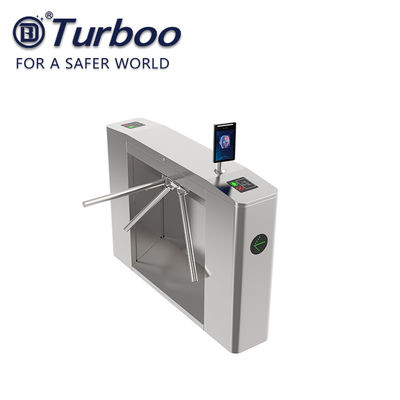

RFID Access Control Tripod Turnstile Gate / Three Arm Turnstile For Library 0RFID Access Control Tripod Turnstile Gate / Three Arm Turnstile For Library 1

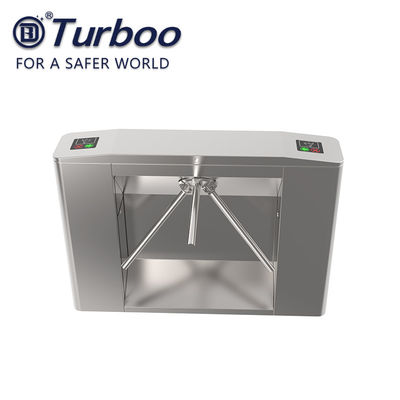

RFID Access Control Tripod Turnstile Gate / Three Arm Turnstile For Library 2

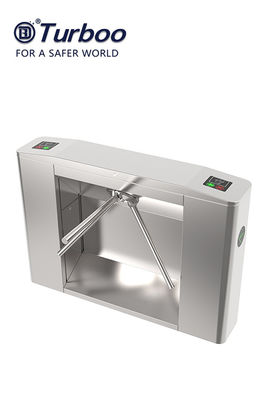

RFID Access Control Tripod Turnstile Gate / Three Arm Turnstile For Library 3
