Access Control Pedestrian Barrier Gate / Vertical Tripod Turnstile RFID Card Reader

Place of Origin Guangdong
Brand Name Turboo
Certification CE
Model Number YL121
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Wooden box/ Heavy carton package
Delivery Time 1 week
Payment Terms L/C, T/T,
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Size 480x280x980mm Material 304/316 Stainless Steel
Input 220V ,50Hz Package Wooden Box
Temperature -25~+70℃ Transit Speed 35 Persons/min
Reliability Of The Core 3 Million ,no Fault Time Needed For Opening 0.2 Seconds
High Light

mechanical swing gate


access control turnstiles


Tripod Pedestrian Barrier Gate

Leave a Message
Product Description

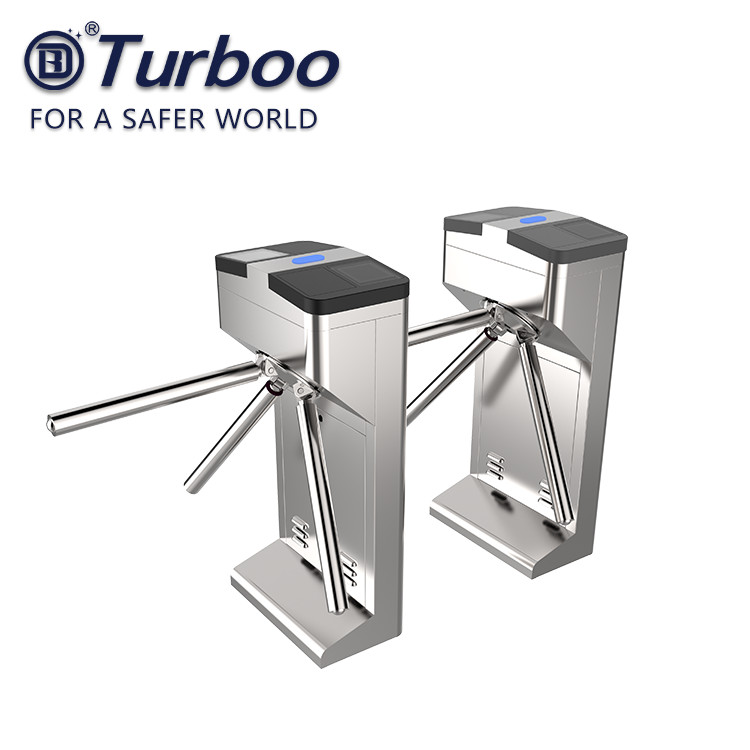

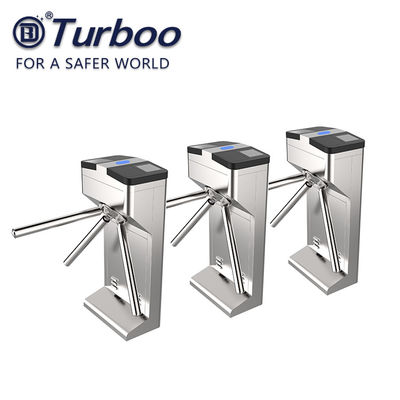

Barrier Gate Access Entrance Control Tripod Gate RFID Card Used Turnstiles for Pedestrian
Product Description

Turboo tripod turnstiles gates offer a compact, cost-effective, fast operating, easy to use, reliable entrance solution for internal or external use in areas where there is a large and constant flow of people.

The advantages of using a Turnstile compared to a conventional Gate include the better utilization of manpower, increased reliability and improved security. This mechanism allows a single employee to enter into the premises only after verification through the Access Control Module that is integrated onto the Turnstile.


Features and Benefits


1.Alloy aluminum or stainless steel full rain-proof box, compared with the through function of wing brake swing and other pedestrian passage equipment, three-roll gate is more inexpensive.


2, With a personalized installation interface (such as card reader). The installation of indicator lamp

ensures that the control gate equipment of the system integrator is simple and convenient when installed.


3. The movement of the three-bar turnstile has an automatic regulating hydraulic shock absorber, and the sound is very low when the three-bar brake is used. No impact, the brake rod automatically decelerates back to the center. The core surface is plated with yellow dichromate.


4.Can be programmed with a gate control, one or two direction control (set by the user).




1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked


Technical Data YL121
Dimension 480x280x980mm
Unlock time 0.2s
Passage width ≤550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 40kg
Input 12v dry contact
