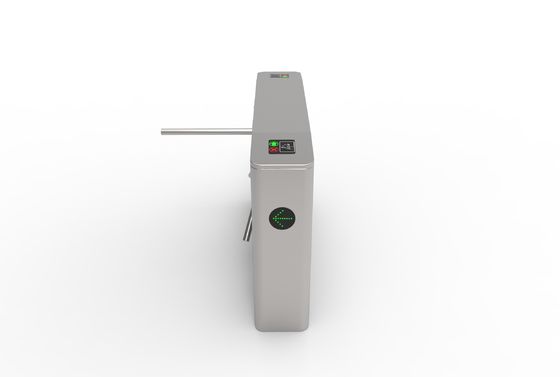

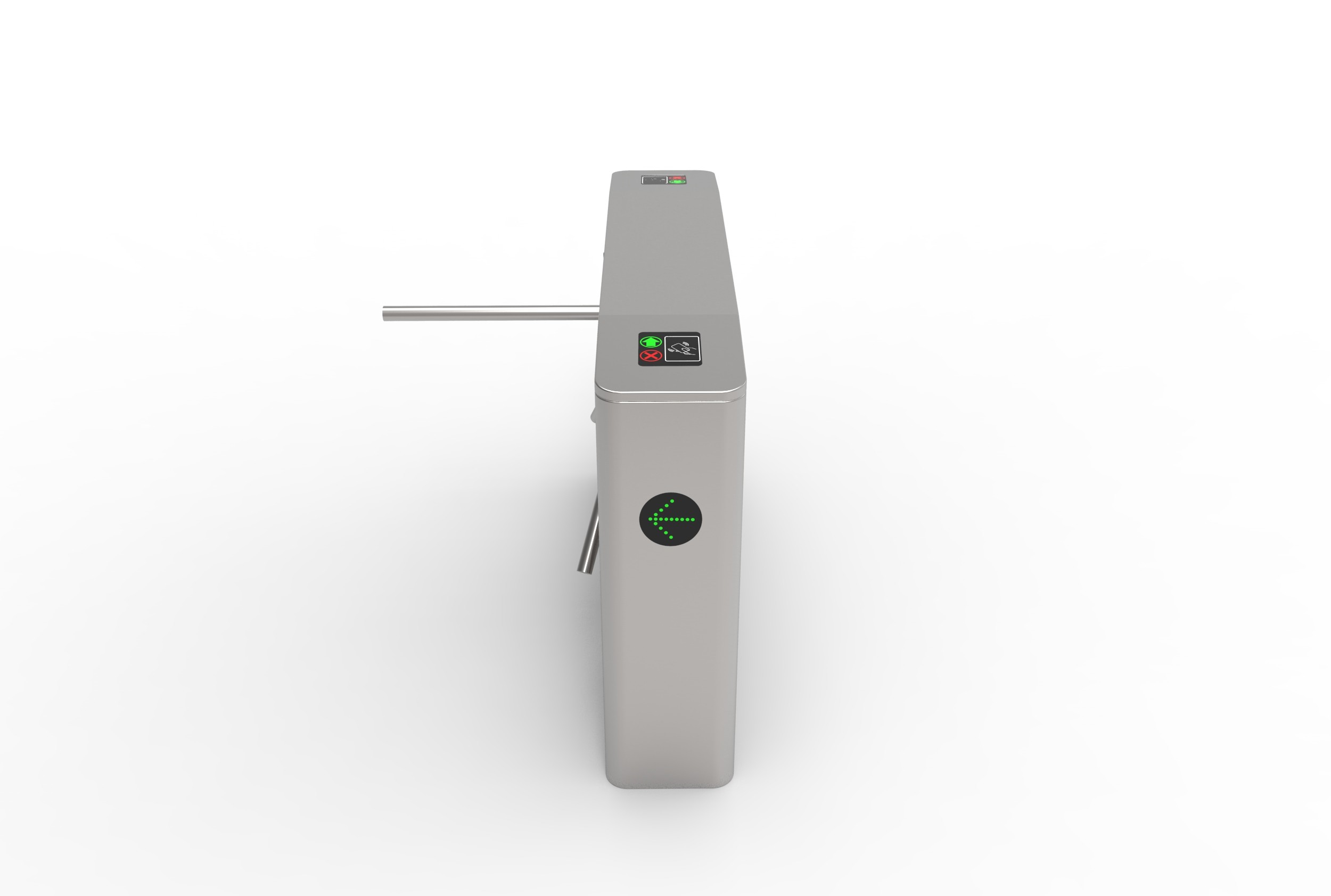

550mm Passage Width Manul / Automatic Bridge Tripod Access Control System In China

Place of Origin Guangdong, China (Mainland)
Brand Name Turboo
Certification CE
Model Number K149
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden case package
Delivery Time 1 week
Payment Terms T/T, L/C
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Metrial 304 Stainless Steel Or 316 Stainless Steel Thickness Full 1.5mm
Weight 62kg (Tripod Turnstile) Passage Width ≤550mm
Input 220V,50HZ Or 110 V ,50HZ Size 1400*280*980mm
High Light

waist height turnstile

,

pedestrian gate access control

,

access control three arm turnstile

Leave a Message
Product Description

550mm passage width manul/automatic bridge tripod access control system from turnstile manufacture in China





Features and Benefits

  • Long-life performance, high operation dependability and fast response.
  • The whole system runs smoothly, low noise, no mechanical impact.
  • Self-test function, when power on, system restoration automatic.
  • Single directional or Bi-directional is selectable.
  • LED indicator.
  • Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.
  • When power off, tripod turnstile arms will drop down automatically, which is complying with fire safety requirements.


Our advantage

1. We can provide most competitive price and best quality because we are leading  turnstile manufacture in China

2. Japan imported stainless steel.we produce with best material

3. Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”.

4. We take 3M glue imported from American instead of the glass glue which other counterparts use

5. Germany “Optibelt” and American “Gates” is the belt we are using now.

6. Easy to install all kinds of access control system





Product Description

Product description for Turnstile gate HC149 access control rfid three arm turnstile for schoollibrarystadium



Technical Data Unit K149
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1400X280X980
Net weight including bars Kg 62
