| Brand Name: | Turboo |
| Model Number: | E142 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C, T/T |

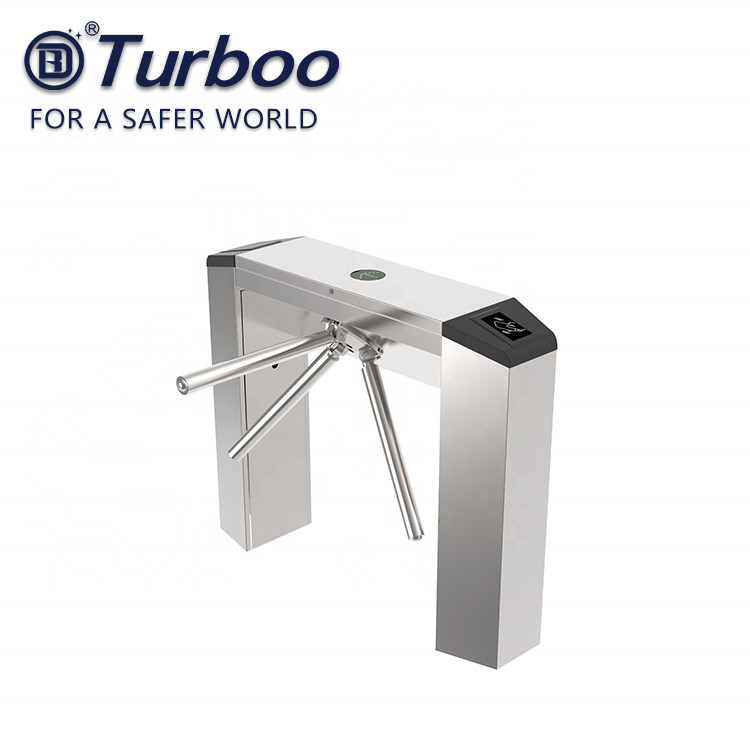

Stainless Steel Turnstiles 304 Stainless Steel Semi Auto Tripod Access Control Turnstile
Features and Benefits
• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.
• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
• Single or bi-directional function in mechanical and electrical versions.
• Automatic reset of barrier arms after each passage.
• Adjustable time out delay.
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
6. Our LED indicator imported from American Bridgelux and Taiwan Epistar led chip.
7. We deal with the cover by original drawing which is better than manual drawing.
8. It usually take us at least 8 procedures to weld and polish the edge so that it looks glossy and feels much smooth.
9. We fasten the wire by Cabling Channel. It can protect the wire so well and make it look tidy.
| Technical Data | Unit | E142 |
| Passage width | mm | <550 |
| Throughput rate | p/m | 35 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 30 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 1200X280X980 |
| Net weight including bars | Kg | 36 |
