Brand Name: | Turboo |
Model Number: | H322 |
MOQ: | 1 PC |
Price: | Negotiation |
Delivery Time: | 2 weeks |
Payment Terms: | L/C, T/T |

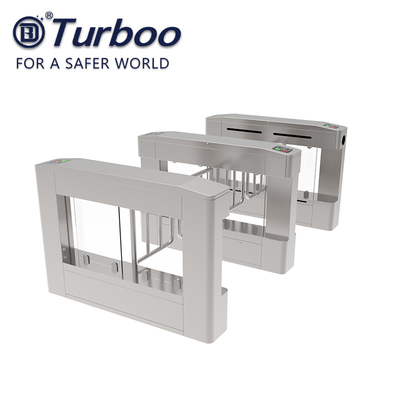

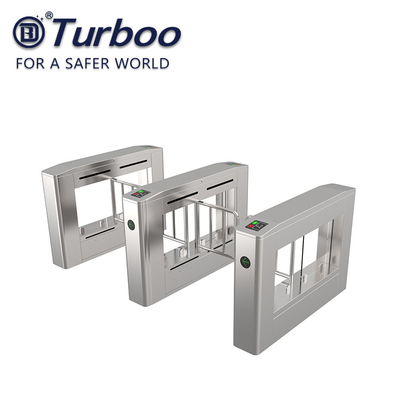

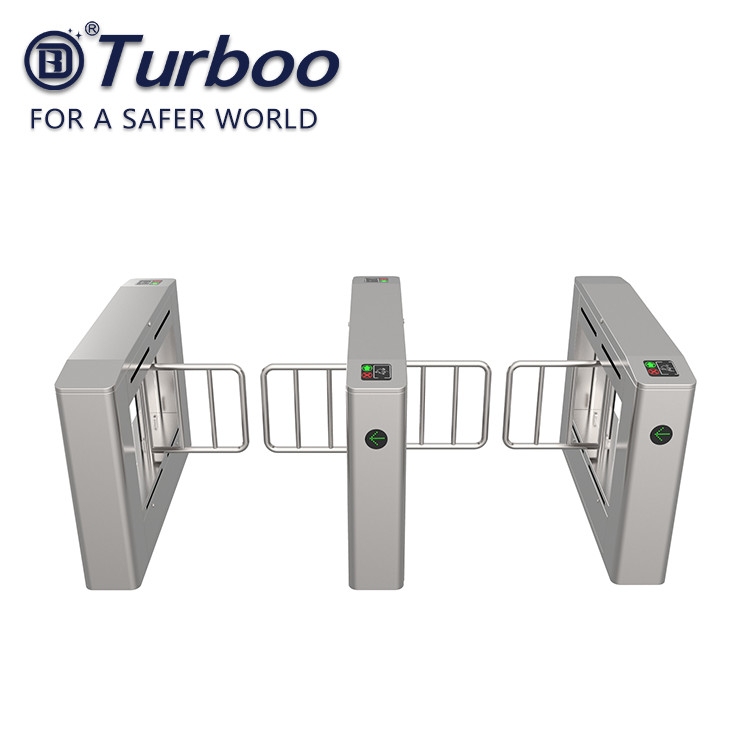

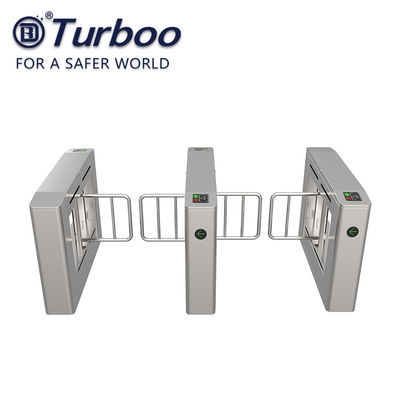

Waterproof Automatic rfid Swing Gate Barrier for high entrance exit turnstile
Features and Benefits
1. Provided the function of automatical card collection, working efficiency can be improved.
2. Available forms: Readable magnetic card, barcode, IC card.
3. Provided the function of self-diagnosis and alarm prompt, convenient for users to maintain and to use.
4. With automatic reset function: after reading the card effectively, if the user does not pass in the specified time period, the system will automatically cancel the user's access rights.
5. Anti-Intrusion function, the boom will lock automatically without receiving the signal of opening.
6. After cutting the electricity the facility, the arms will fall down automatically, and formed a safety passage.
7. Each time pass only for one person. Avoided passing through by following the former person.
8. The control board equipped with functions of counting and memory.
9. High compatibility. Compatible for the facilities and subassemblies of other brands.
Swing gate
The flap barrier organically integrated mechanism, electronic, microprocessor control and a variety of identification technologies. It's easy to integrated IC card, ID card, bar code platform, fingerprint and other devices. It could coordinated realize intelligent controls and management for channel by matching various identification system equipment and the using reliable security devices, alarm devices and direction indication.Available in indoor and outdoor areas, the LTT 313 EJD can be produced in stainless steel or in a wide range of colors from electrostatic powder paints in a color suitable for you. The greatest advantage of the mechanism is that the latch bearings are monobloc in the shell. There is no loosening or thawing in the tourniquet mechanism that works on pulses.
Technical Data | Unit | H322 |
Passage width | mm | <900 |
Throughput rate | p/m | 35 |
Power supply | V(ac) | 100-240 |
Operational voltage | V(dc) | 24 |
Max power consumption | w | 35 |
Frequency | hz | 50-60 |
prectection level | ip | >44 |
Working temperature | degree | -25 to +70 |
Dimension excluding bars | mm | 1400X250X980 |
Net weight including bars | Kg | 68 |
![]() |
