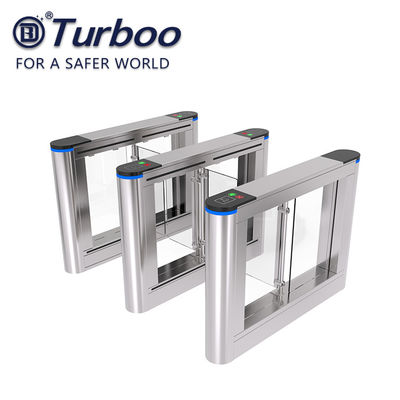

Infrared Sensors Optical Barrier Turnstiles Stainless Steel Swing Gate

name

Infrared Sensors Optical Barrier Turnstiles Stainless Steel Swing Gate

Brand Name:	Turboo
Model Number:	H306
MOQ:	1 PC
Price:	Negotiable
Delivery Time:	7-15 working days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, ISO9001

Size:

1400X185X1020

Transit Time:

35 Persons/min

Input:

100V 50Hz

Temperature:

-20~+75

Packaging Details:

Wooden case package

Supply Ability:

2000 units per month

Highlight:

security access gates

,

gate card reader

,

Infrared Sensors Optical Barrier Turnstiles

Product Description

Optical Barrier Turnstiles Supermarket Entrance And exit System Stainless Steel Swing Barrier

Features of Swing Gate:

Support bi-directional opening
Can integrate with access control system.
Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
Gate length can be easily customized to fit site requirement.
Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
Gate motor mechanism is self lock at open and close position.

Product details

Infrared Sensors Optical Barrier Turnstiles Stainless Steel Swing Gate 0

Product cases

Infrared Sensors Optical Barrier Turnstiles Stainless Steel Swing Gate 2

Infrared Sensors Optical Barrier Turnstiles Stainless Steel Swing Gate 3
