Tripod Turnstile Gate
Created with Pixso. Low Noise Drop Arm Turnstiles Pedestrian Barrier Gate With Stable Operations

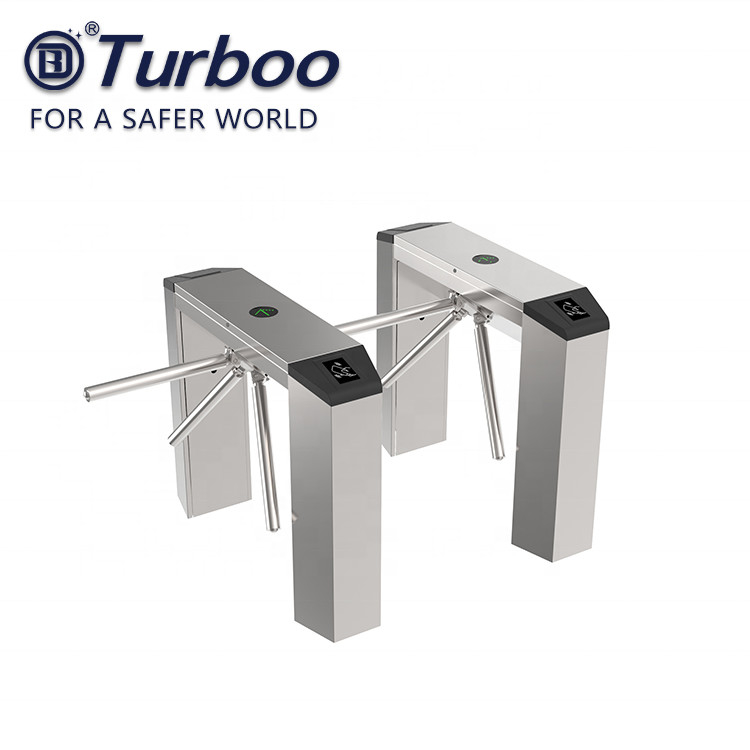

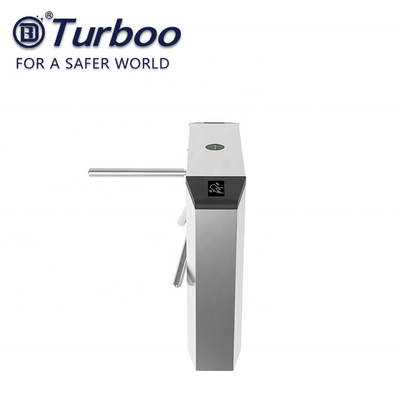

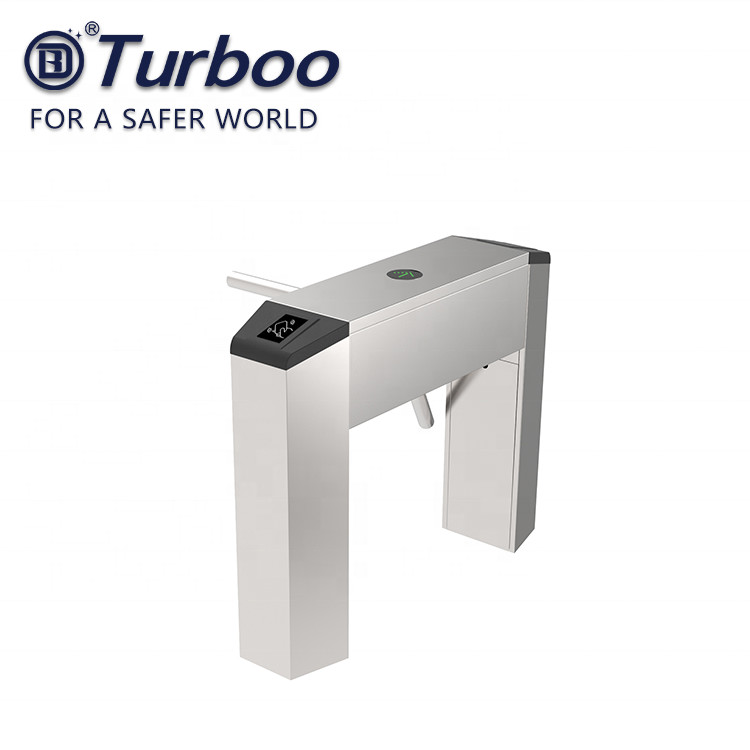

Low Noise Drop Arm Turnstiles Pedestrian Barrier Gate With Stable Operations

Brand Name: Turboo
Model Number: E142
MOQ: 1 PC
Price: Negotiable
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
CE
Metrial::
304 Stainless Steel Or 316 Stainless Steel
Thickness:
Full 1.0mm
Size:
1200*280*980mm
Weight:
35kg (Turnstile)
Passage Width:
≤550mm
Package:
Wooden Case Package
Testing:
3 Million No Fault (Turnstile)
Input::
220V,50HZ Or 110 V ,50HZ
Driving Voltage:
24 V
Environment:
-25~+70
Packaging Details:
Wooden Case Package
Supply Ability:
1000 units per month
Highlight:

mechanical swing gate

,

turnstile gate systems

,

Low Noise Drop Arm Turnstiles

Product Description

Low noise with stable operations arm drop turnstile security gates



Features and Benefits


♦ Compatible with different identification systems cards, such as IC, ID card, fingerprint, QR Code and more (optional)"
♦ Equipped with international standard interface, enable to intergrate with other devices, and remote controlled by supervision computer
♦ The arm will drop automatically when power-off, turn to horizontal when power-on, pushing force is 0.3kg
♦ LED indicator, green arrow for entry free, red cross for passage locked.
♦ Reversed passing alarm function, it will alarm if pedestrian pass from opposite direction, or break-in
♦ Self-inspection and alarm function if break-down, normal-open/normal-close mode can be set up in control board.
♦ Automatically reset function. It will be locked if the pedestrian didn't pass through within preset time, the passing time is adjustable

Extension function:
♦ Voice prompt system can be added, for guiding pedestrian pass correctly ( optional)
♦ Automatic identification, counting function, pedestrian flow control, attendance check or fare collection. (optional)
♦ Control panel has memory function (optional)
♦ Arm length/pass width extendable
♦ Logic judgment by photocells
♦ Counting function of the controller, LED figure display function (optional)



Our advantage


1. Advanced safety features . Equipped with more than 10 pairs of military specification infrared sensors, which accurately monitor safety and security functions, including anti- passback, tailgating, illegal access, anti squeeze and orientation identification.
2. Speed Technology. Adjustable Opening/closing time for swing gates and wing gates can be as low as 0.35s .
3. Appearance. Class leading breakthrough on curved design appearance and surface treatment ahead of competitors .
4. Complete product line . Capable of manufacturing 6 lines of products, KBB is one of the top 3 manufacturers in this competitive field. Our products are fully compatible with all major worldwide projects and we offer a fast response be spoke service platform.



Product Description


Product description for Security Semi-automatic Tripod Turnstile HS Code Three Metal Rods Turnstile

Technical Data Unit E142
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1200X280X980
Net weight including bars Kg 35

Low Noise Drop Arm Turnstiles Pedestrian Barrier Gate With Stable Operations 0Low Noise Drop Arm Turnstiles Pedestrian Barrier Gate With Stable Operations 1Low Noise Drop Arm Turnstiles Pedestrian Barrier Gate With Stable Operations 2Low Noise Drop Arm Turnstiles Pedestrian Barrier Gate With Stable Operations 3
