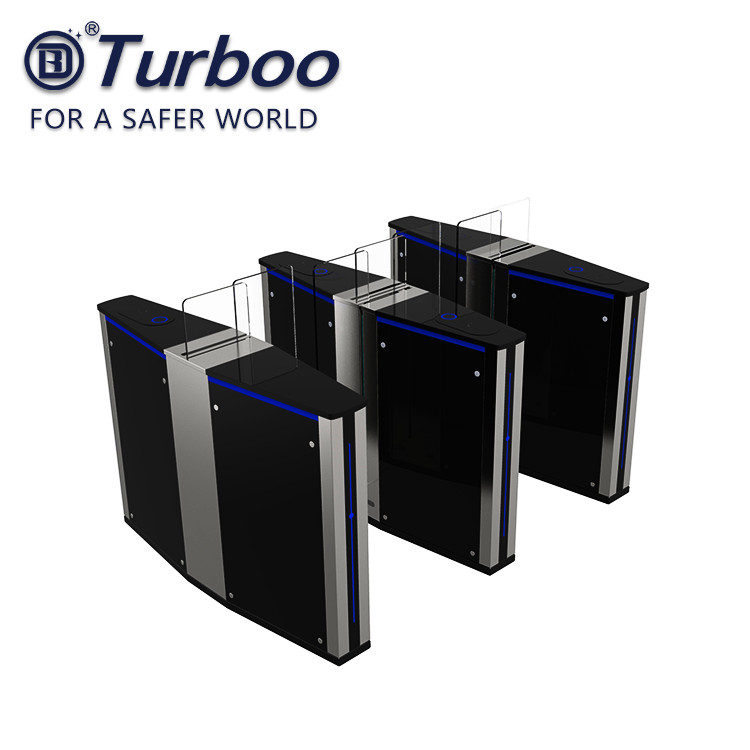

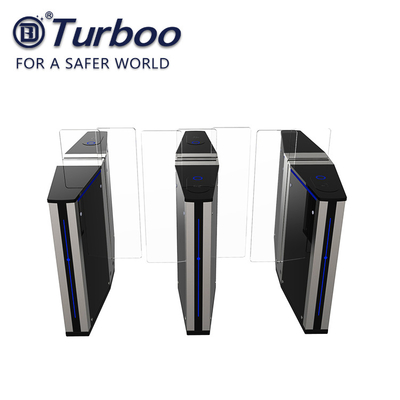

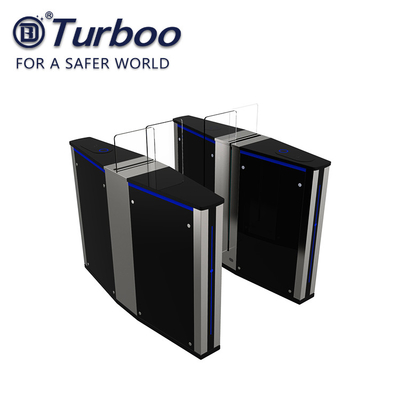

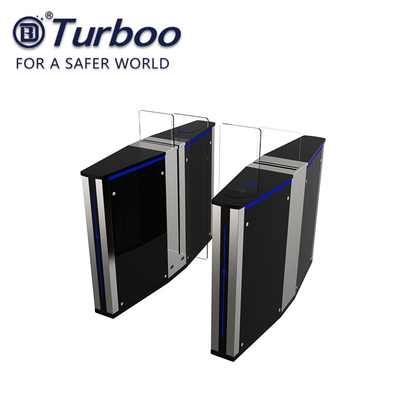

Security RFID identification Sliding gate for Office building

General description

Speedstile Swing Gate series are intelligent passage management equipment researched, developed and produced by our company. The equipment is integrated with delicate mechanical transmission, microprocessor control. It can be used for intelligent control and management of the passage after equipped with different read/write devices.

The outline of the product is formed after pressing the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.

 Main Functions and Features of the System

1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

2) Servo burshless motor

3) On-line or off –line mode(optional)

4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation

5) With direction indication, guiding passenger to entry and exit.

6) Self automatic locking to prevent forcely passing without the card

7) Light and sound alarm indication function, preventing illegal entry or irregular passing

9) Powerful on-line intelligent control mode, facilitating you:

10)The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

12) The processing mode in emergency or in special conditions.

13) Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.

14) Strong system expending capability, available to add new product at any time

15) Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection.

Main Technical Specifications

Material: SS304,thickness is no less than 1.5mm

Manufacturing Technique: CNC laser cutting

Barrier Material: Acrylic glass, SS304 and so on

Gate Opening and Closing time: ≤ 0.2S

Passing Speed: Normally open-50persons/min; Normally closed-50persons/min

Communication Connection: RS485 Communication

Power: AC220C±10V,50HZ

Motor: DC Brushless Motor

Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma

Infrared Sensors: 5 Pairs

Relative Humidity: <95%, No Densation

Operating Temperature: -25°C-70°C

Working environment: indoor only
