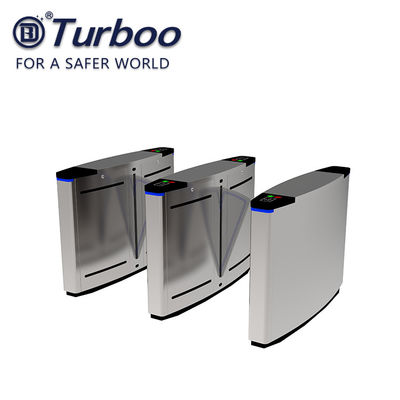

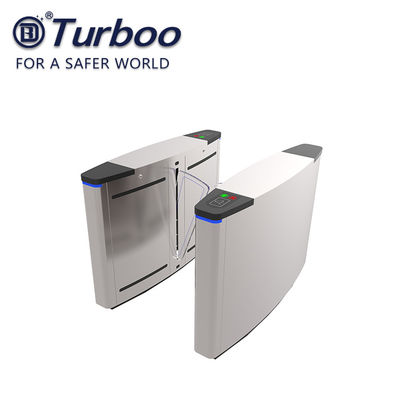

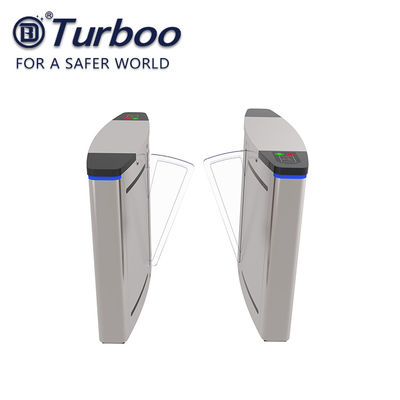

Bi - Directional Swing Optical Barrier Turnstiles Gate With 35p/M Pass Rate

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSize | 1410×300×1005mm | Unlock Time | 0.2s |
---|---|---|---|
Pass Rate | 35p/m | Pass Width | ≤550mm |
Input | 100V~240V | Driving Voltage | 24V |
Environment | -25~+70℃ | Power Consumption | 35W |
High Light | glass swing gate,gate card reader,Bi Directional Optical Barrier Turnstiles |
Entrance barriers security electronics automatic bi-directional swing gate/turnstiles
Features and Benefits
1. Designed reasonable and reliable movement, noise, smooth running, and long service life.
2. Access Prompt function:Red and green light prompt the passing information.
3. The programmable gates control state, with a variety of operating modes you can choose, you can set a one-way or two-way control
4. Installation with personalized interface, compatible with IC, ID cards and other smart cards.
5. Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements
6. The control panel with counting function, LED digital display function (optional)
7. The standard input and output interface, is the best choice for system integrators
8. With automatic reset function,namely to obtain permission lock after the set time.There is no lock,swing gates automatic cancellation of this authority back to the initial state.(the standard is gate turns on 5 seconds will be automatically reset)
9. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)
10. Sound, light alarm function: with trespassing, trailing alarm
11. Scour protection function ,when the gate signal is not received, the stick is automatically locked
12. Fault detection and alarm function, user-friendly maintenance and use
Technical Data | Unit | A221B |
Passage width | mm | <550 |
Throughput rate | p/m | 35 |
Power supply | V(ac) | 100-240 |
Operational voltage | V(dc) | 24 |
Max power consumption | w | 35 |
Frequency | hz | 50-60 |
prectection level | ip | >44 |
Working temperature | degree | -25 to +70 |
Dimension excluding bars | mm | 1410X300X1005 |
Net weight including bars | Kg | 87 |
