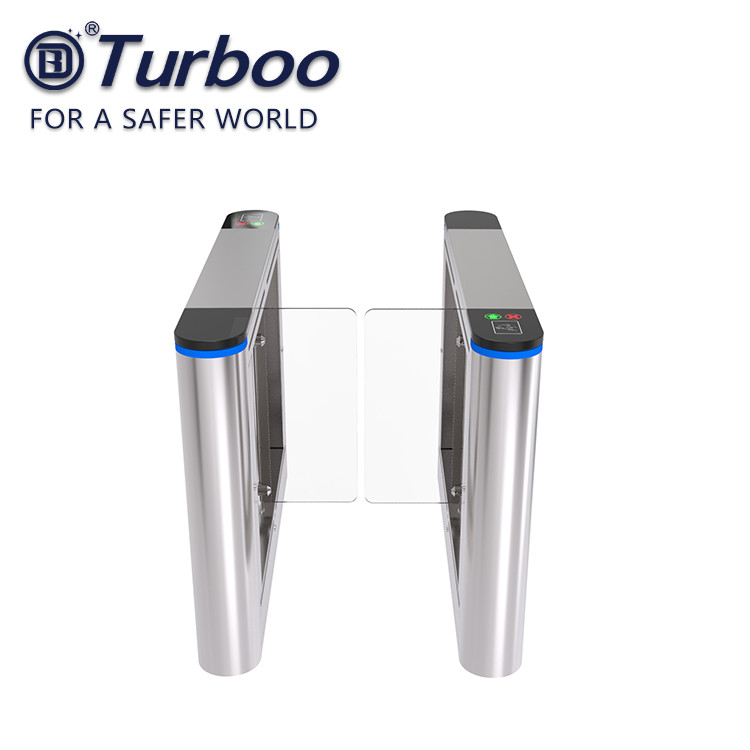

Fast Speed Gate Turnstile / Office Security Gates Stainless Steel Frame

Fast speed Swing Gate For Office Security Management using RFID reader swing barrier/ pedestrian gate/ swing barrier gates for office

Automatic pedestrian access control system waist high 304 stainless steel swing barrier gate with RFID card/fingerprint reader
Swing turnstile series with innovate design, it extensive use in metro, school, office, scenic, gym, factory, residential, supermarket etc.. It can support RFID, fingerprint, facial verification mode. Combine with infrared detector, temperature controller, can widely used in all kind of different environment.Swing turnstile series can option the crashproof function, turnstile integrated angle coder and clutch, can protect the door while people or bicycle crash it. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection.

Materials
               • Housing:Made in stainless steel AISI 304 o AISI316.
               • Barrier swings-Acrylic, PC, stainless steel frame.

Features and Benefits


Safety

The Speed Gate has a number of safety features and is one of a select few turnstiles manufactured that is CE marked. In addition, the Speed Gate features a dedicated emergency input for fire/life safety. If the emergency input is triggered (e.g. via fire alarm system), the barrier panels swing open in the exit direction and remain open until reset to allow free egress. In the event of power loss, the barrier panels can be moved freely with very minimal force.

Installation and Commissioning

Instead of having to “tweak” each and every turnstile (e.g. adjust individual home/end positions), the Proud products are nearly perfect right from the start. Proud takes great pride in keeping things simple for installers, minimizing deployment time and avoiding unneeded future complications. The Speed Gate’s standard operation settings are ideal for a major of applications, but adjustments can be easily made through included utilities.

Embedded IP-based Communication

Embedded IP-based communication and configuration functionality is built into all Speed Gates, making it possible to adjust core turnstile settings via a local and/or remote TCP/IP network session.

Integration with Access Control and Visitor Management Systems

The Speed Gate easily integrates with nearly any access control system. Each side of the turnstile allows interior (under the lid) installation of a mullion sized proximity reader at each end of the turnstile. The Speed Gate is an ideal complement to current visitor management systems. Instead of requiring surface mounting of bulky, omni-directional readers (as is the case with competitors’ products), Proud provides an option to interior mount a barcode image into the end of the cabinet.

Options & Customizations

The Speed Gate has over a dozen available options. Alternate lid colors and materials, color powder coated cabinets, barrier side panel etching, static or dynamic side panel illumination, multiple barrier heights, and an integrated barcode reader are just an example of some of the available options.

Control and Monitoring Software

Control and Monitoring Software is a desktop application typically installed at a guard or attendant desk that allows Speed Gates to be monitored and controlled from a single PC. Control and Monitoring has an intuitive graphic interface that gives desk attendant a current status of all turnstiles, including an immediate notification of alarm conditions. Control and Monitoring also includes the ability to set up scheduling templates that allow turnstile mode changes to be implemented automatically.

Our advantage

• 90%of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly

• We use Baoxin Stainless steel, the best brand in China

• Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”

• Technology Parameters
  Size	1350×185×1025mm
  Unlock time	0.2s
  Pass rate	35p/m
  Pass width	600~900mm
  Input	100V~240V
  Driving voltage	24V
  Environment	-25~+70℃
  Power consumption	35W
  Input	Dry contact



• Product details







  Product cases
