ISO9001 RFID card reader security turnstile with stable office access

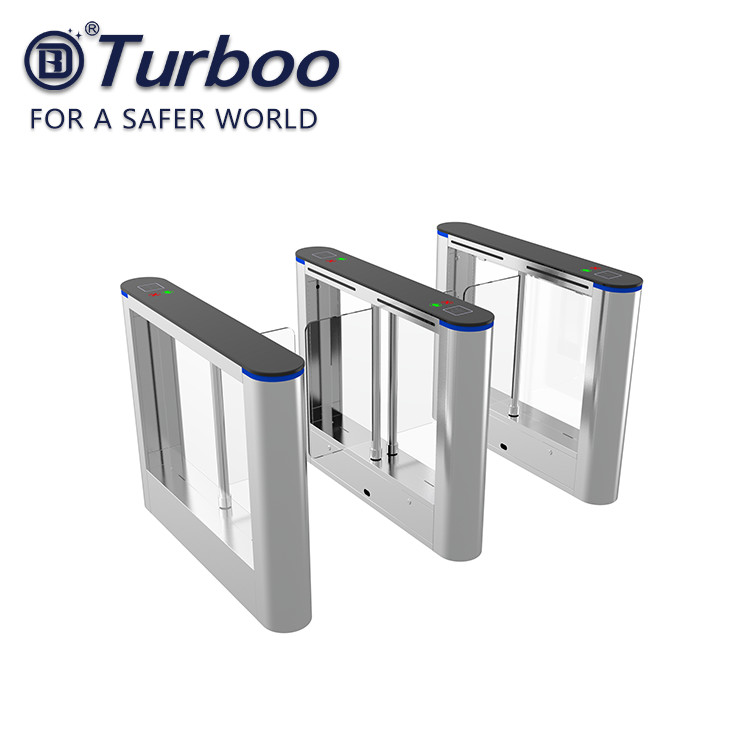

Turboo gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP)line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in. for example, a reception area. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby manaagement.

Materials

               • Housing:Made in stainless steel AISI 304 o AISI316.

               • Barrier swings-Acrylic, PC, stainless steel frame.

Features and Benefits

1) Functions of breakdown self-checking and alarm warning, very convenient for customers’ maintenance and use.

2) Program operation mode of equipments through the little button inside the main board.

3) Double Anti-Pinch function from both machine structure and induction. Stops automatically if there is something in the way during the return /rest of the doors. If there is default time delay, it will have its second return (till it comes back to where it should be), and the force is very weak

4) Anti-rushing function: without having received the signal of opening up, the doors lock automatically.

5) Doors can be adjusted into synchronization (only for double-locks)

6) Automatic returning/resetting function: when the barriers open up, if people do not pass by within the time allowed, system will cancel the right of pass for this time.

7) Adjust it to normal open or normal closed to meet the different requirements of different fields.

8) Can be linked to many kinds of card-reading equipments and work when it has received the signal of electricity relay switch.

9) One-way and two-way in and out control of passer

10) Carry out distant control and management by directly operating computer.

11) Automatic returning /resetting when there is time delay. Normally speaking, it returns/resets five seconds after its opening.

12) When the electricity is cut off, the access opens automatically, and closes automatically when the electricity is linked. Meet the requirements of fire-fighting.

13) Sound and lights alarming: including break-in and opposite direction intrusion, and so on.

Our advantage

• 90%of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly

• We use Baoxin Stainless steel, the best brand in China

• Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”

• Technology Parameters
  Size	1200×180×980mm
  Unlock time	0.2s
  Pass rate	35p/m
  Pass width	≤600mm
  Input	100V~240V
  Driving voltage	24V
  Environment	-25~+70℃
  Power consumption	35W
  Input	Dry contact
