L129 Tripod Turnstile Gate Hydralic Draper Driver 1.5mm Thickness With High Safety
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Size | 480*230*960mm | Pass Width | 550mm |
|---|---|---|---|
| Net Weight | 40kg | Thickness | 1.5mm |
| Material： | SUS304,HL400 | Arm Material | SUS303 |
| Driver： | Hydralic Draper | Pass Rate | 35p/m |
| Power Supply | 100-240V(AC) | Operational Voltage | 24V(DC) |
| Max Power Consumption | 50w | Working Temperature | -25 To +70 ℃ |
| MCBF： | 3,000,000cycles | Unlock Time | 0.2s |
| Frequency： | 50-60HZ | ||
| High Light | waist height turnstile,turnstile security systems,High Safety Tripod Turnstile Gate |
||
Product Description

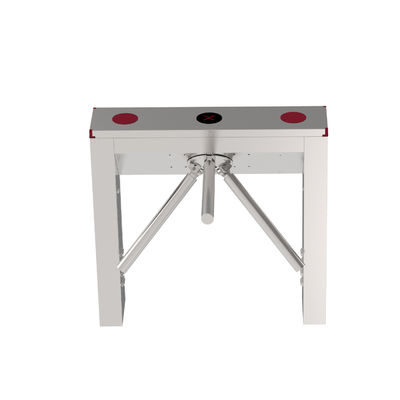

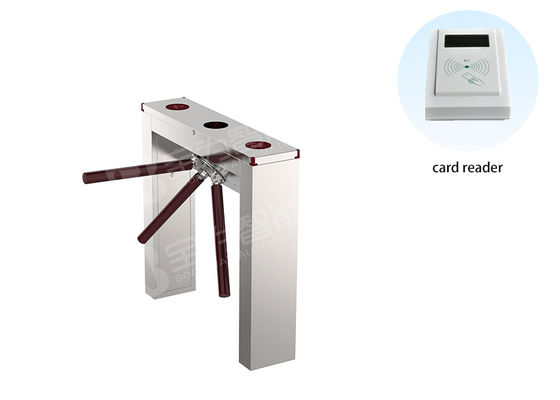

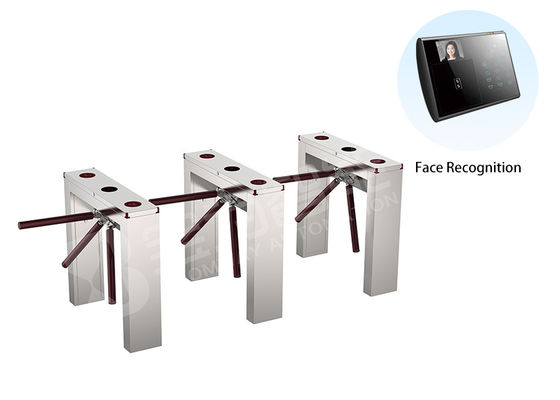

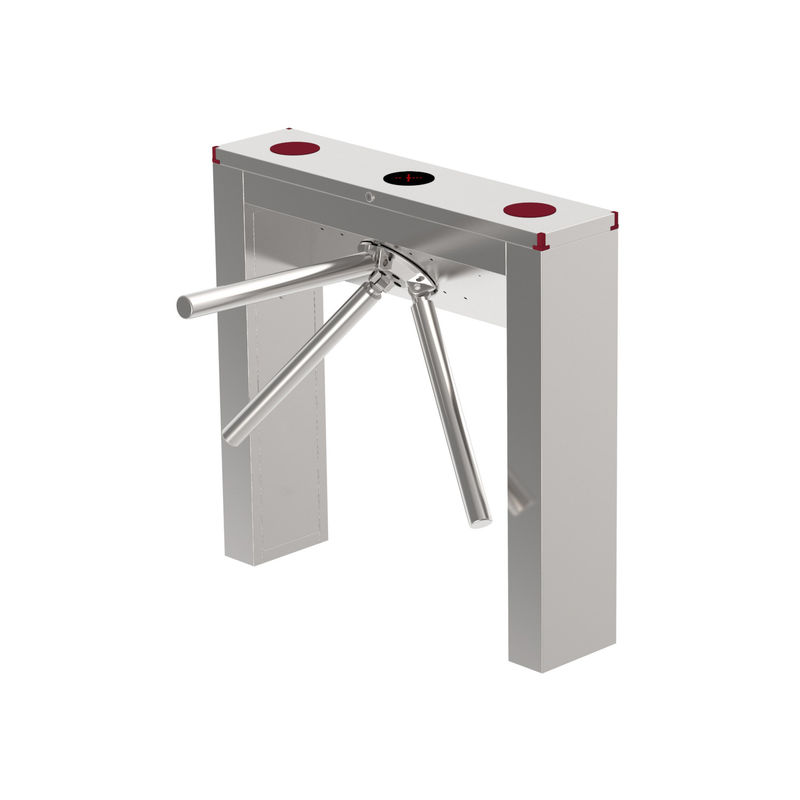

Hot sale L129 Tripod turnstile gate with high safety and reliability
L129 Tripod turnstile gate is a gate channel with simple shape, high cost performance, high safety and reliability, which can effectively realize single pass.The lock head and lock rod of the Tripod turnstile gate are made of 304 stainless steel, and the lock rod and lock head are welded evenly, beautiful, not easy to fall off,Dust-proof and waterproof ability,is of great adaptability to the environment, suitable for indoor and outdoor.
| Model Number: | L129 |
| Product Size: | 480*230*960mm |
| Pass Width: | 550mm |
| Net Weight: | 40kg |
| Thickness: | 1.5mm |
| Material: | SUS304 |
| Driver: | Hydralic Draper |
| Infrared Sensor: | NA |
| Throughput rate: | 35p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 50w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
| Unlock Time: | 0.2s |
OPERATING MODES
1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked
