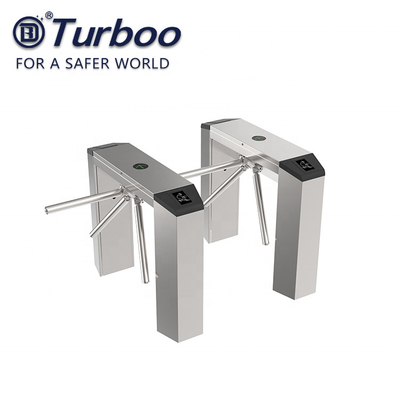

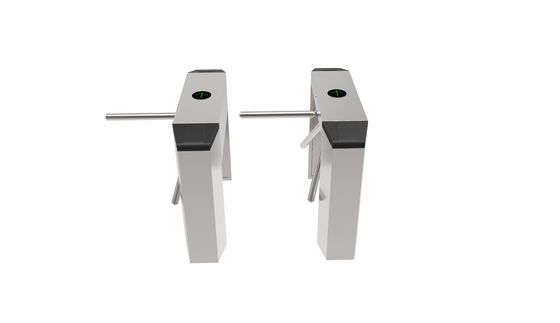

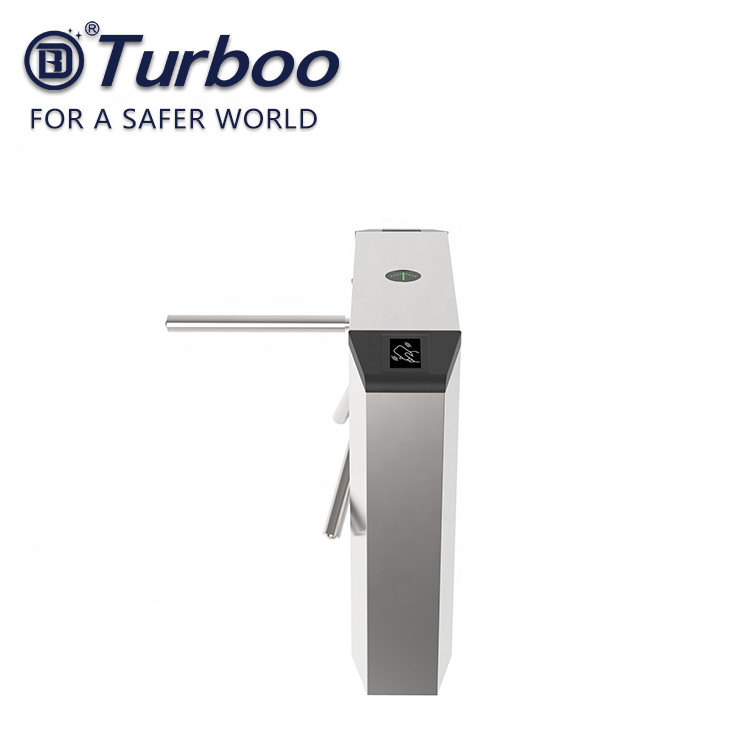

Card Reader Tripod Turnstile Gate Stainless Steel Arm Automatically Drop Down

Place of Origin China
Brand Name Turboo
Certification CE
Model Number E142
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Carton or Wooden Case Package
Delivery Time 5~10 Working Days
Payment Terms L/C, T/T
Supply Ability 1000 units per month
Product Details
Material 304 Hairline Polished Stainless Steel Passage Width 550mm
Install Place Indoor And Outdoor Thickness 1.0mm
Driving Voltage 24 V Environment -25~+70
High Light

waist height turnstile

,

pedestrian gate access control

,

SS Arm Tripod Turnstile Gate

Leave a Message
Product Description

Three Arm Stainless Card Reader Steel Tripod Turnstile Gate ,Arm Automatically Drop Down







Product Description



waist-high tripod turnstiles are extensively used in factories, stadiums, amusement parks, mass transit stations, office lobbies, casinos, ski-resorts ,etc. From a security standpoint, they lead the patrons to enter single-file ,so security personnel have a clear view of each patron. This enables security personnel to efficiently isolate potential trouble or confiscate any prohibited materials



Model No. E142
Dementions 1200*280*960mm
Material 304 Stainless Steel+PC
Surface Finished Hairline finished
Net Weight 35 KG
Arm Length 510mm
Passage Width 550mm
Driver Solenoid lock+mechanism+drapper
Pass rate 30-35 persons/minute
Inout voltage 100-240V
Operating humidity ≤95% no condensation
Working voltage 24V
Frenquency 50HZ
MCBF 5 milions cycles
Warranty 12 months



Features and Benefits



Lower Noise

Tripod Turnstile is Designed to operated accurately and smoothly.The liquid shock-absorber

positioning enables fluent and quiet mechanical movements.

Passage Module

The bi-directional passage is controlled by control panel.Each direction can be set to

different modules as folows:

1.Control module(Only open when receiving signal of legal passing)

2.No passage module(no passage is permitted)

3.Free passage module(all passagers are allowed to passage.)

Normally Open & Nornally Close Mode

Tripod Turnstile can shift between normally open and normally close modes by changing

paramerters setting.Tripod Turnstile will be auto lock up after personnel passed when

system under normally close mode.

Power Outage

Users can choose free passage or no passage module during power outage by adjusting solenold position.

Traffic Light

Passage is allowed when the light turnst green,and no passage is permitted when the light turns red.

Dropped Arm Mechanism

The tripod turnstile will auto drop its arm and become emergency exit passage when receiving power

outage or fire alarm inputs.

LED Passage Lights

The LED passage lights will guide personnel through the passages when people pass the recognition systems.

TCP/IP(Option)

Each passage has independent IP address,User Can use TCP/IP to remote control the tripod turnstile.
