Automatic Access Control Pedestrian Turnstile , Security Swing Gate 100-240V
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Size | 1500*150*980mm | Pass Width | <=900mm |
|---|---|---|---|
| N.W. | 65kg | Thickness | 1.5mm |
| Material | SUS 304 Polish 400# Snow Line | Top Cover Material | Acrylic+Metal Plate |
| Input Voltage | 100-240V | Pass Rate | 35-40 Persons/minute |
| High Light | speed gate systems,glass security barriers |
||
Product Description
Automatic System Turnstile / Access Control Barrier Gate / SUS304 Speed Gate Turnstile
Description

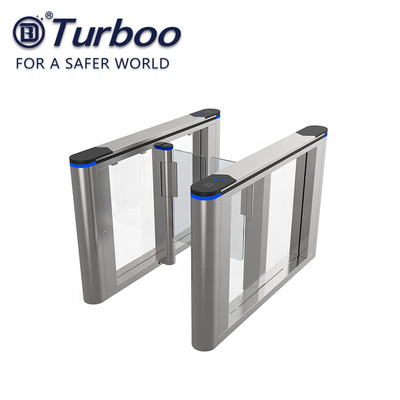

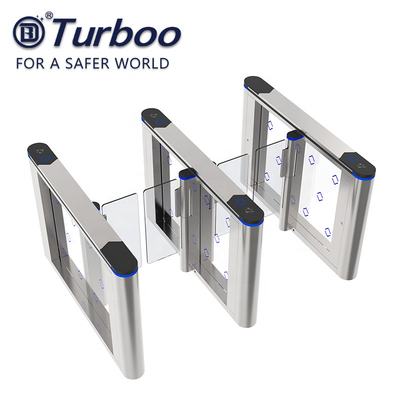

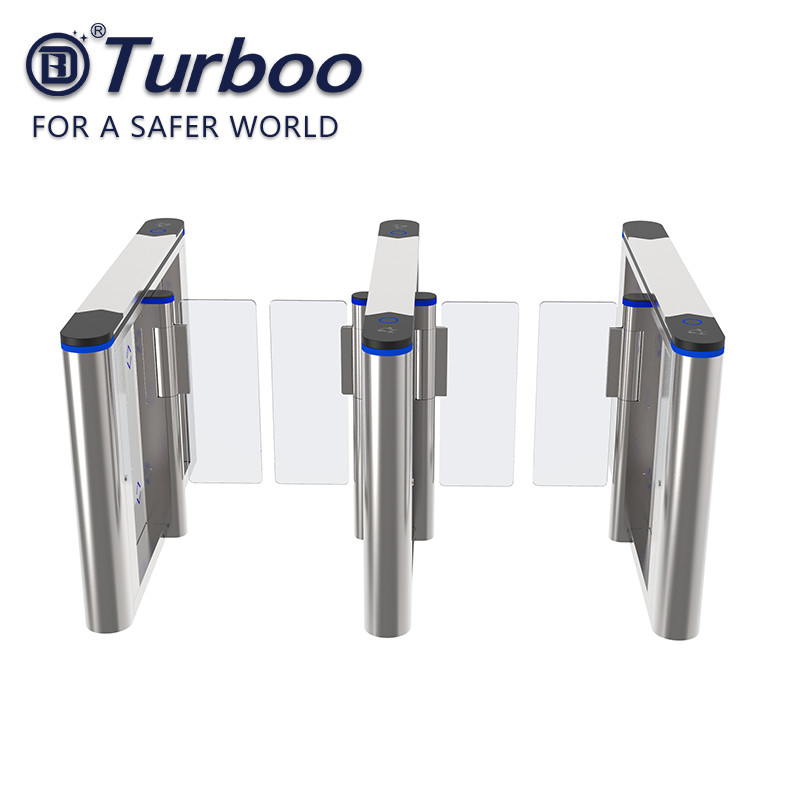

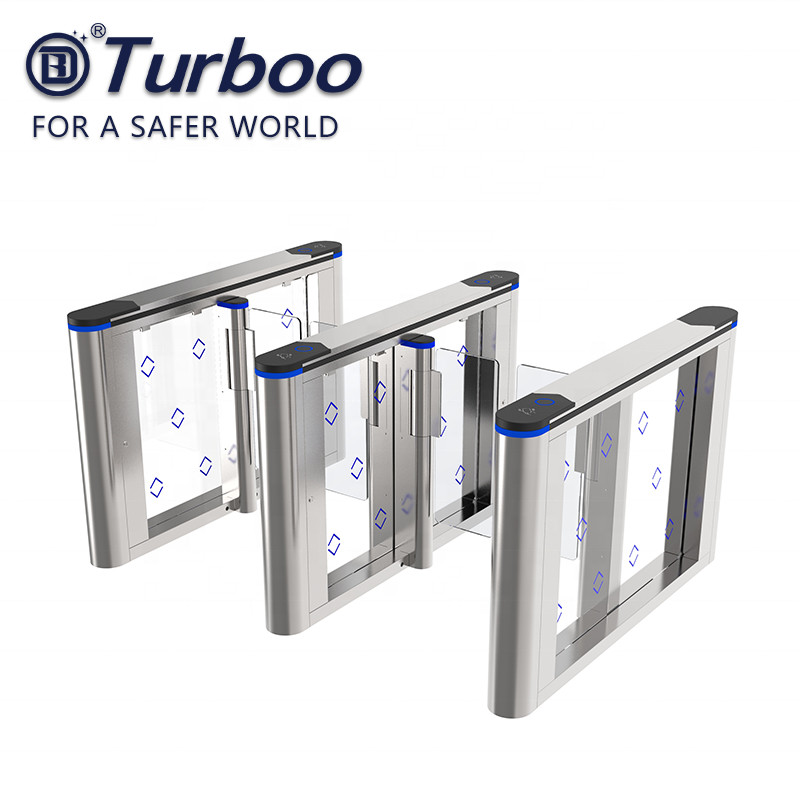

B302 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.
| Model Number: | B302 |
| Product Size: | 1500*150*980mm |
| Pass Width: | <=900mm |
| Net Weight: | 65kg |
| Thickness: | 1.5mm |
| Material: | SUS304,Polish 400# Snow Line |
| Top cover Material: | Acrylic+Metal plate |
| Filling Panel Material: | 10mm Transparent Acrylic+Light bar |
| Arm Material: | 10mm Transparent Acrylic |
| Driver: | Servo Motor |
| Infrared Sensor: | 6pairs |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 100w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
Feature:
-
Traffic light indicating passenger access
-
Automatic detection for malfunctions
-
Input interface available for dry contact and switch signal connection
-
Adjustable auto-delay closing
-
Infrared photocells for safety access
-
Alarm for unauthorized access and no access
-
Auto-closing when power on
-
Free access when power off
-
Adjustable access directions
-
Emergency interface available
Our advantage:
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now
