Tempered Glass Swing Barrier Gate Servo Brushless Motor 1.5mm Thickness For Handicap

Place of Origin Shenzhen,China
Brand Name Turboo
Certification CE,ISO9001
Model Number A315
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Carton or Wooden Case Package
Delivery Time 7-15 Working Days
Payment Terms L/C, T/T
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material SUS304 Stainless Steel+Tempered Glass Motor Servo Brushless Motor
Power Supply MW Brand Application Indoor
Thickness 1.5mm Voltage 100V-240V
Driving Voltage 24 V Size 186*1050mm
High Light

security entrance systems


drop arm turnstiles

Leave a Message
Product Description

900mm Passage Width Of One Wing Tempered Glass Swing Barrier Gate For Handicap




Handicap Swing Barrier Definition:

P type swing gate is the simplest & most affordable way to provide access control for people with special needs, disabled personals, trolleys & materials. This equipment come with latest PWM technology which can be controlled by push button or interfaced with various entrance control system

Model Number: A315
Product Size: Φ180*1000mm
Pass Width: 600-900mm
Net Weight: 40kg
Material: SUS 304 surface Hairline 400
Top cover Material: 2.0mm SUS304 mirror surface
Arm Material: 8mm Temperated Glass
Driver: Brushless Servo Motor
Pass rate: 35-40p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles





• Space-saving, compact and modern design, the ideal choice for sites where limited space is available.


• Whisper quiet, low noise operation.


• Allows to integrate additional equipment, both as a built-it and with the external fixation.


• The swing gate should open automatically in the event of power failure on safety grounds. It makes it easier to evacuate people in case of emergency.


• Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.


• Configured with high-quality DC brushless motor and high-performance encoder imported. It carries servo control system, advanced motor control technology and precise positioning technology, to truly achieve precise control and stable performance, improve the opening & closing speed and throughput rate.


• Equipment developed with an eye on user safety and security, without exposed screws or sharp edges to
prevent accidents


• With optimized mechanical structure design, it has higher fatigue resistance and impact resistance. It can ensure high stability when the turnstile is working under extra high traffic, and maintain its long-term normal operation

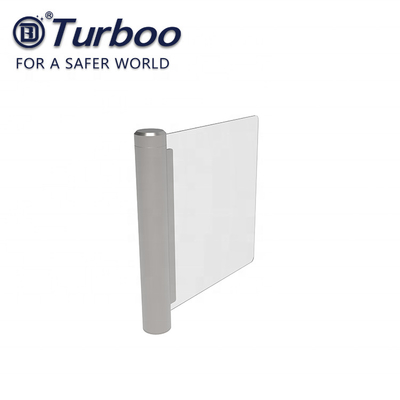

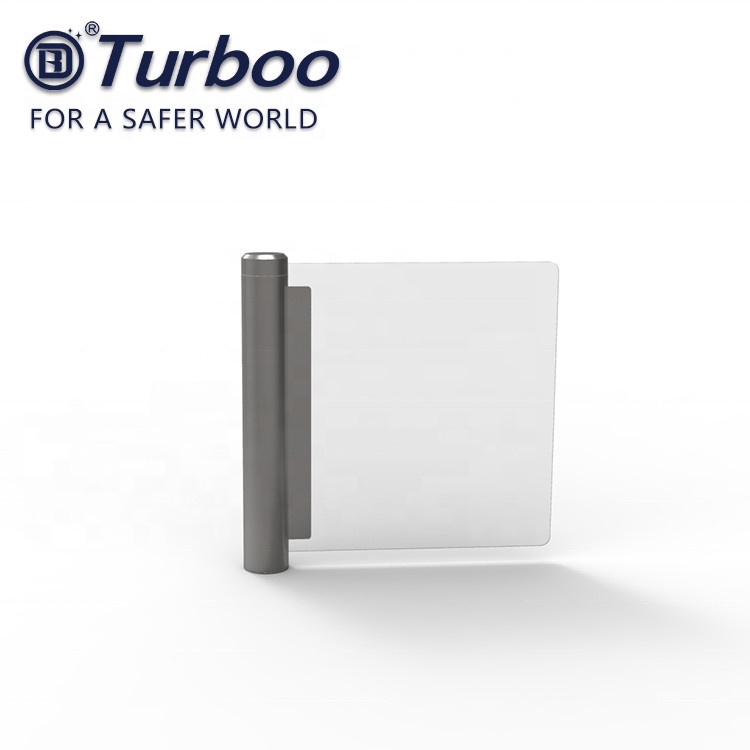

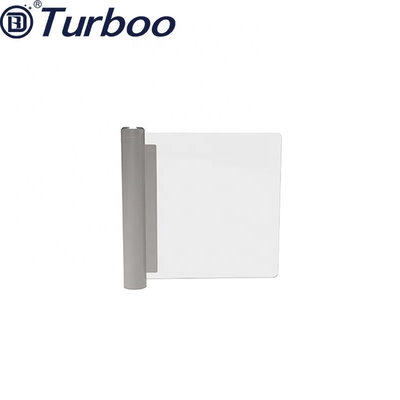

Tempered Glass Swing Barrier Gate Servo Brushless Motor 1.5mm Thickness For Handicap 0

Project Case

Tempered Glass Swing Barrier Gate Servo Brushless Motor 1.5mm Thickness For Handicap 1
