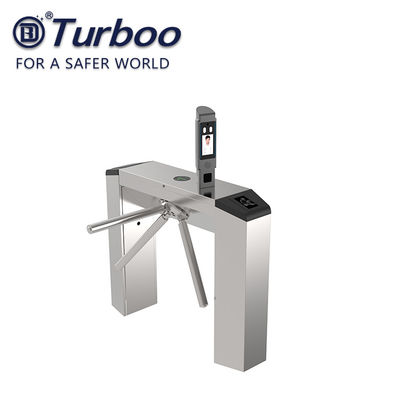

100-240V Tripod Barrier Gate 304 SUS Office Building Pedestrian Access Control

Place of Origin Guangdong China(Mainland)
Brand Name Turboo
Certification CE ISO9001
Model Number E142
Minimum Order Quantity 2 pcs
Price Negotiable
Packaging Details Wooden Case Package
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 1000 units per month
Product Details
Product Size 1200*280*960mm Pass Width <=550mm
Material 1.0mm 304 SUS Hairline #400 Input Voltage 100-240V
Working Voltage 24V Pass Rate 30-35 Persons/minute
Operating Time 0.2 Seconds MCBF 5,000,000 Cycles
Motor Brushless Motor Communication Interface RS485,Dry Contact
Working Temperature -25 To +70
High Light

waist height turnstile

,

pedestrian gate access control

,

304 SUS Tripod Barrier Gate

Leave a Message
Product Description

304 SUS Pass Width 550mm Tripod Turnstile Gate for Office Building Pedestrian Access Control Tripod Barrier





All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. Our turnstiles are used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection
and lobby access control.



Model Number: E142
Product Size: 1200*280*960mm
Pass Width: <=550mm
Net Weight: 35kg
Material: 1.0mm SUS 304 Hailine 400#
Mechanism: Solenoid lock
Pass rate: 30-35p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles



Feature:



• Use of RFID IC cards, ID cards, Barcode or magnet-ic cards as automatic identification system and achieve access attendance, fees or function.
• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will auto-matically rotate forward by motor power until the arm arrives in home position.
• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
• Single or bi-directional function in mechanical and electrical versions.
• Automatic reset of barrier arms after each passage.
• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.
