Semi - Automatic Tripod Turnstile Gate Access Control Tourniquet RFID Operated

Place of Origin China
Brand Name Turboo
Certification CE,ISO9001
Model Number Y148
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Carton or Wooden Case Package
Delivery Time 5~10 Working Days
Payment Terms L/C, T/T
Supply Ability 2500 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SUS304 Hairline Finished Stainless Steel Passage Width 550mm
Environment Indoor And Outdoor Thickness 1.2mm
Driving Voltage 24 V Temperaturet -25~+70
Machine Core Semi-automatic Movement Rotating
High Light

waist height turnstile

,

pedestrian gate access control

,

RFID Operated tripod barrier gate

Leave a Message
Product Description

RFID Operated Turnstile Tourniquet With Access Control Professional Tripod Turnstile

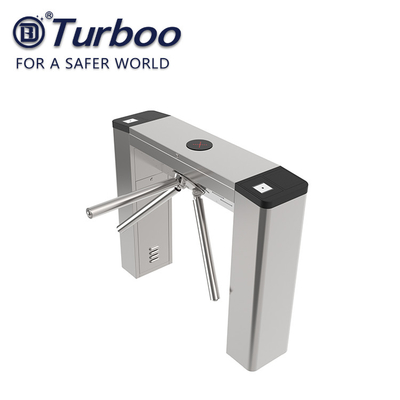

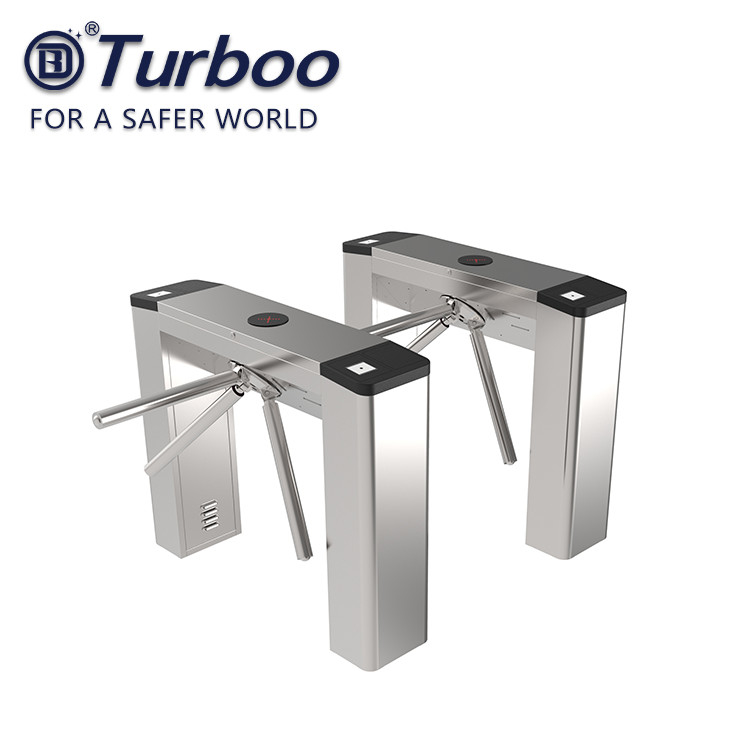

Y148 is a dual-lane tripod turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes Y148 highly durable. Y148 is also surprisingly compact and designed to operate in small workspaces. Y148 tripod arms are normally held in a locked position, thus denying access to the secured side. Upon Y148’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its tripod arms unlock, thus allowing users passage to the secured side. Option for built-in REX button allows users to conveniently exit the secured side without needing to use their access card or fingerprint.

Tripod Applications:

Using tripod turnstiles is a popular choice when checking tickets at sports stadiums,amusement parks, and university facilities. They eliminate the need for attendants at entrances and provide a means to count the number of pedestrians entering into a facility. These turnstiles paired with card readers and electronic operation are the most popular choice for subway systems and can be found in most of them.

Model No. Y148
Dementions 1200*560*980mm
Material 304 Stainless Steel
Surface Finished Hairline finished
Net Weight 80 KG
Arm Length 510mm
Passage Width 550mm
Driver Solenoid lock+mechanism+drapper
Pass rate 30-35 persons/minute
Inout voltage 100-240V
Operating humidity ≤95% no condensation
Working voltage 24V
Frenquency 50HZ
MCBF 5 milions cycles
Warranty 12 months
