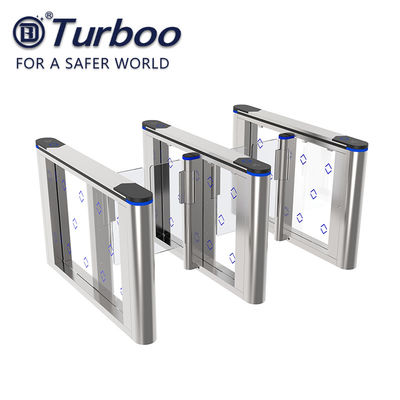

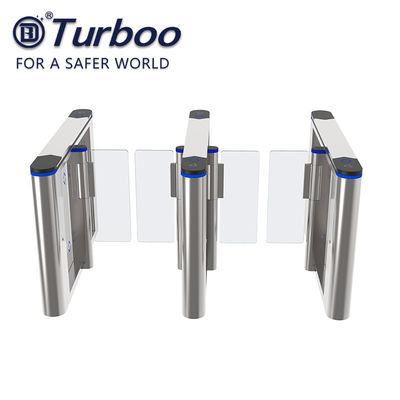

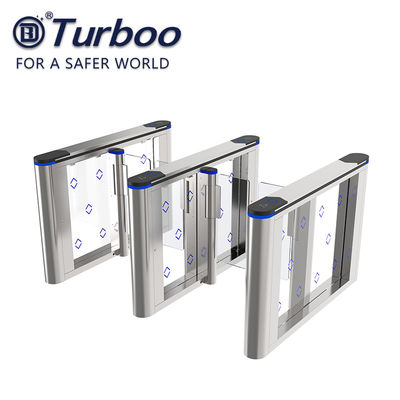

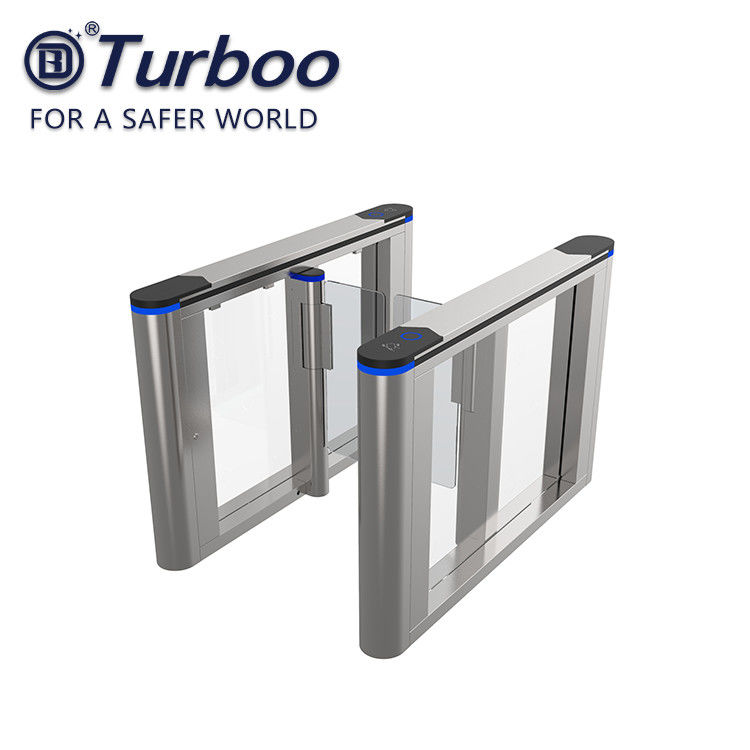

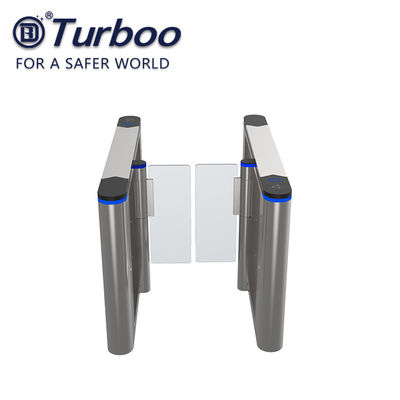

SUS304 Stainless Steel Speed Gate Turnstile , Security RFID Reader Barrier

Place of Origin Guangdong China(Mainland)
Brand Name Turboo
Certification CE ISO9001
Model Number B302
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden Case Package
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 1000 units per month
Product Details
Product Size 1500*150*980mm Pass Width 600-900mm
N.W. 62kg Thickness 1.5mm
Material 1.5mm Imported SUS 304 Polish 400# Top Cover Material Acrylic And 1.5mm SUS 304
Input Voltage 100-240V Working Voltage 24V
Pass Rate 35-40 Persons/minute Operating Time 0.2 Seconds
MCBF 5,000,000 Cycles Infrare Sensor 6 Pairs
High Light

speed gate systems

,

glass security barriers

Leave a Message
Product Description

SUS304 Speed Gate Turnstile , Security RFID Reader Barrier , Servo Pedestrian Gate for Office Building







Description



Speed gate is developed for high-end users, with safe and efficient, intelligent use, high-quality, sturdy and durable. It collect industry experience and wisdom of all employees in one for many years, providing users with a complete product solution and quickly create high-quality channel products. We adhere to the customer as the center, we adhere carefully to provide users with high-quality products. B302 are designed to enhance security and optimize manpower at your entrance points. These systems will provide you with efficient and elegant control of individual access to your premises. They are straightforward to install, easy to understand as impel to maintain. The products can be widely applied to the following usages, such as industrial enterprises, Living garden, building offices, shops, museums, security installations, prisons, nuclear power plants airport, railways, seaports, exhibition centers, ski resorts, fitness



Model Number: B302
Product Size: 1500*150*980mm
Pass Width: 600-900mm
Net Weight: 62kg
Thickness: 1.5mm
Material: 1.5mm imported SUS 304 Polish 400#
Top cover Material: Acrylic and 1.5mm SUS 304
Filling Panel Material: 10mm Acrylic with Led light bar
Arm Material: 10mm Acrylic
Driver: Servo Motor
Infrared Sensor: 6pairs
Pass rate: 35-40p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles







FEATURES AND BENEFITS



Safety first: In the fire or power-off, the door can be free to open and ensure unimpeded



Various Interfaces: I/O, RS232/485,CAN interfaces, which it is convenient to control signal input, and provides convenient centralized fire control interface.



Two working modes: NC and NO, which is easy to deal with peak and normal use.



Multiple control modes: There are unidirectional, bidirectional, free passage and authorization passage to meet fully the users ‘needs, which consist of nine control modes;



Precise positioning: precise positioning by photoelectric sensors, the work cycle of door is regular and precise positioning to ensure correct position after long work;



Indicator control: the indicator is able to show three status of front and back indicator (allow through, no through, system maintenance).Also which show the passage direction and passage status (A to pass,B to pass,no through), According to reasonable indicator control, which is convenient for users to management.



Machine core control:the two sides machine core work with coordination and synchroniztion, and the control system provide convenient management functions. the passage controller can control the machine core of all functions and settings of all parameters, which is reasonable for consisting of the various components of the machine core operation flow, and which is more intelligent and safety to design a access control function;





Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.



2. We use Baoxin Stainless steel, the best brand in China.



3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.



4. Germany “Optibelt” and American “Gates” is the belt we are using now.
