RS485 Face Recognition 35 Person/Min Swing Barrier Gate 0.2s
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 2.0mm Cold Roller Steel With US Powered Coating | Passage Width | 600-900mm |
|---|---|---|---|
| Install Place | Indoor | Driving Voltage | 24 V |
| Environment | -25~+70 | Passing Speed | 35 Person/min |
| Interface | RS485,TCP/IP,Dry Contact,Switch Signal | Application | Company,hotel |
| Motor | Brusless / Brushed Optional | Warranty | 12 Months |
| High Light | 35 Person/Min Swing Barrier Gate,RS485 Swing Barrier Gate,0.2s Face Recognition Barrier Gate |
||
Product Description

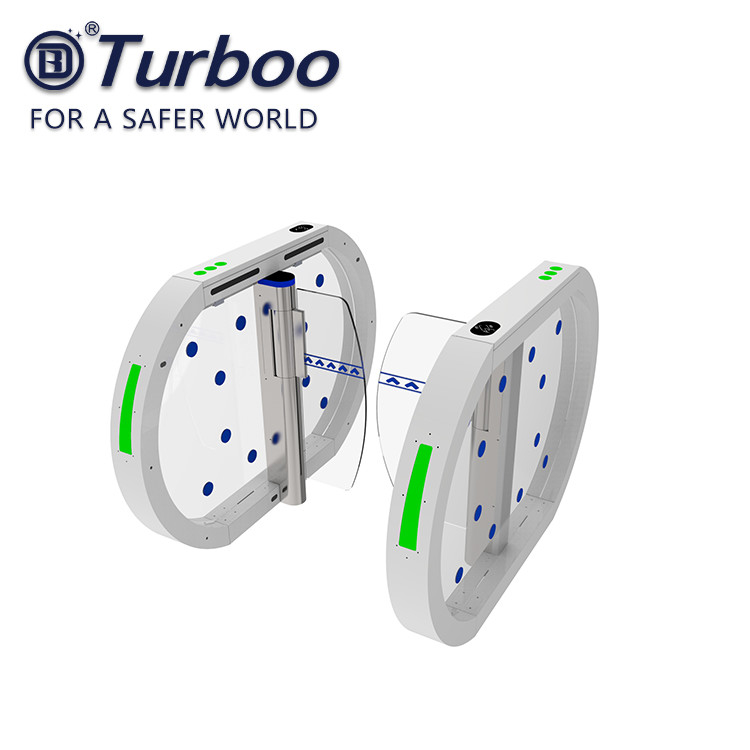

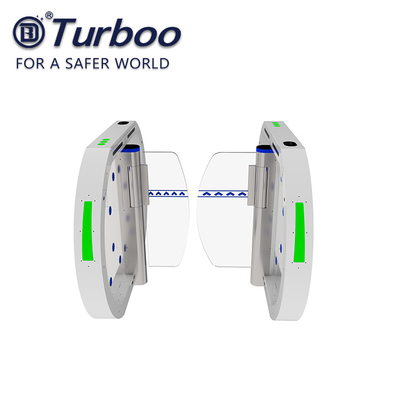

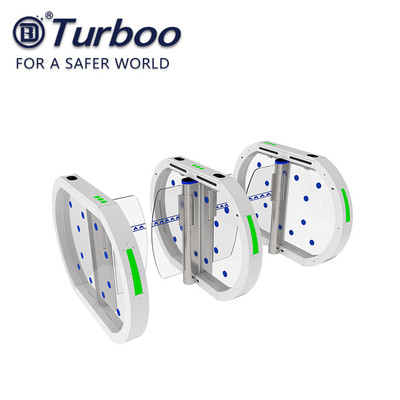

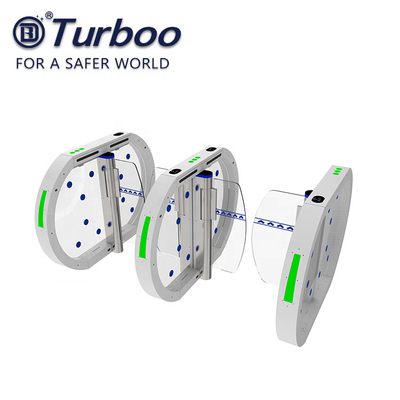

Automatic Swing Barrier Gate Half Waist Turnstile Gate with Access Control System Face Recognition
Product Description
| Technical Data | Unit | B3011 |
| Passage width | mm | <600 |
| material | s/s | 304 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 35 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 1400X120X980 |
| Net weight including bars | Kg | 55 |
Our advantage
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. More than 20,000 sq.m area plant, abundant stock, short delivery time;
3. Top 3 suppliers of raw material and spare aprts, like Baoxin and Japan Imported Stainless steel, Germany belts and motors, MEANWELL power supply etc.
4. Long Lifecycles: Brushless Servo Motors need least maintenance and provides more than 5,000,000 cycles MCBF.
5. High Intergrated: Compatible with most access control systems and credentials like RFID Cards,Barcodes,QR codes, Fingerprints, Face recognition,etc.
6. Easy Operation: Our own developed mainboard for easy operation and maintenance.
7. Wide Applications: widely applied for Banks,offices,Library,University and other high end places.
8. Timely technical support and after sales.
Features and Benefits
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading
