Brushless Motor 14 Pairs Swing Barrier Gate 600mm Width

Place of Origin Guangdong China(Mainland)
Brand Name Turboo
Certification CE ISO9001
Model Number K324
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden Case Package
Delivery Time 10 days
Payment Terms L/C, T/T
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Size 1500*200*980mm Pass Width 600mm
Material 1.5mm SUS 304 Polish 400# Snow Line Top Cover Material Acrylic+SUS 304
Input Voltage 100-240V Working Voltage 24V
Pass Rate 35-40 Persons/minute Operating Time 0.2 Seconds
Infared Sensro 14 Pairs Motor Brushless Motor
MCBF 5,000,000 Cycles Communication Interface RS485,Dry Contact
High Light

Brushless Motor Swing Barrier Gate

,

14 Pairs Swing Barrier Gate

,

600mm Width Pedestrian Swing Gate

Leave a Message
Product Description

Indoor and Outdoor Used , 600-1300mm pass width 240V Swing Barrier Gate





Description

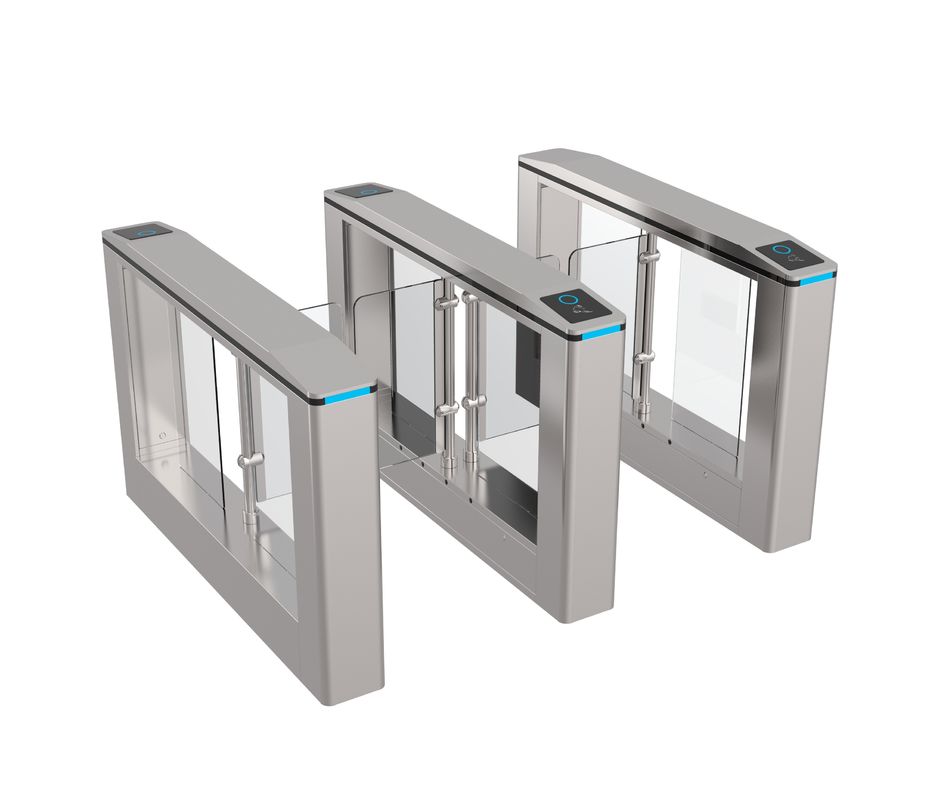

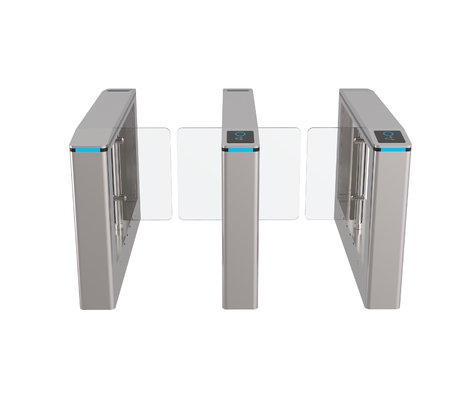

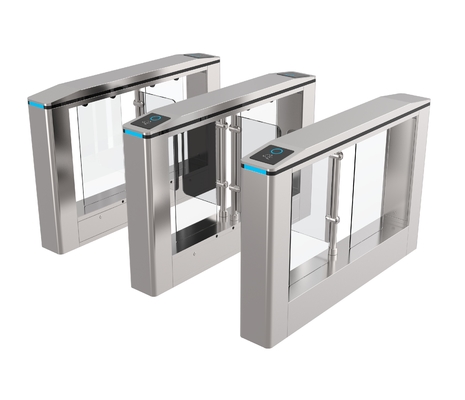

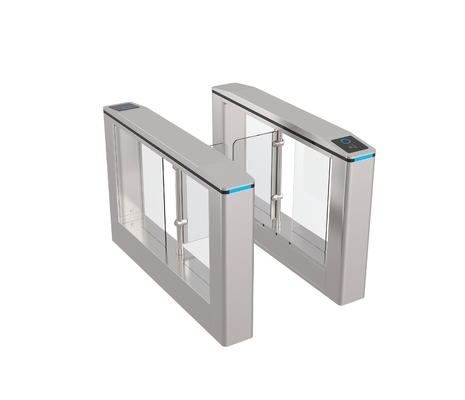

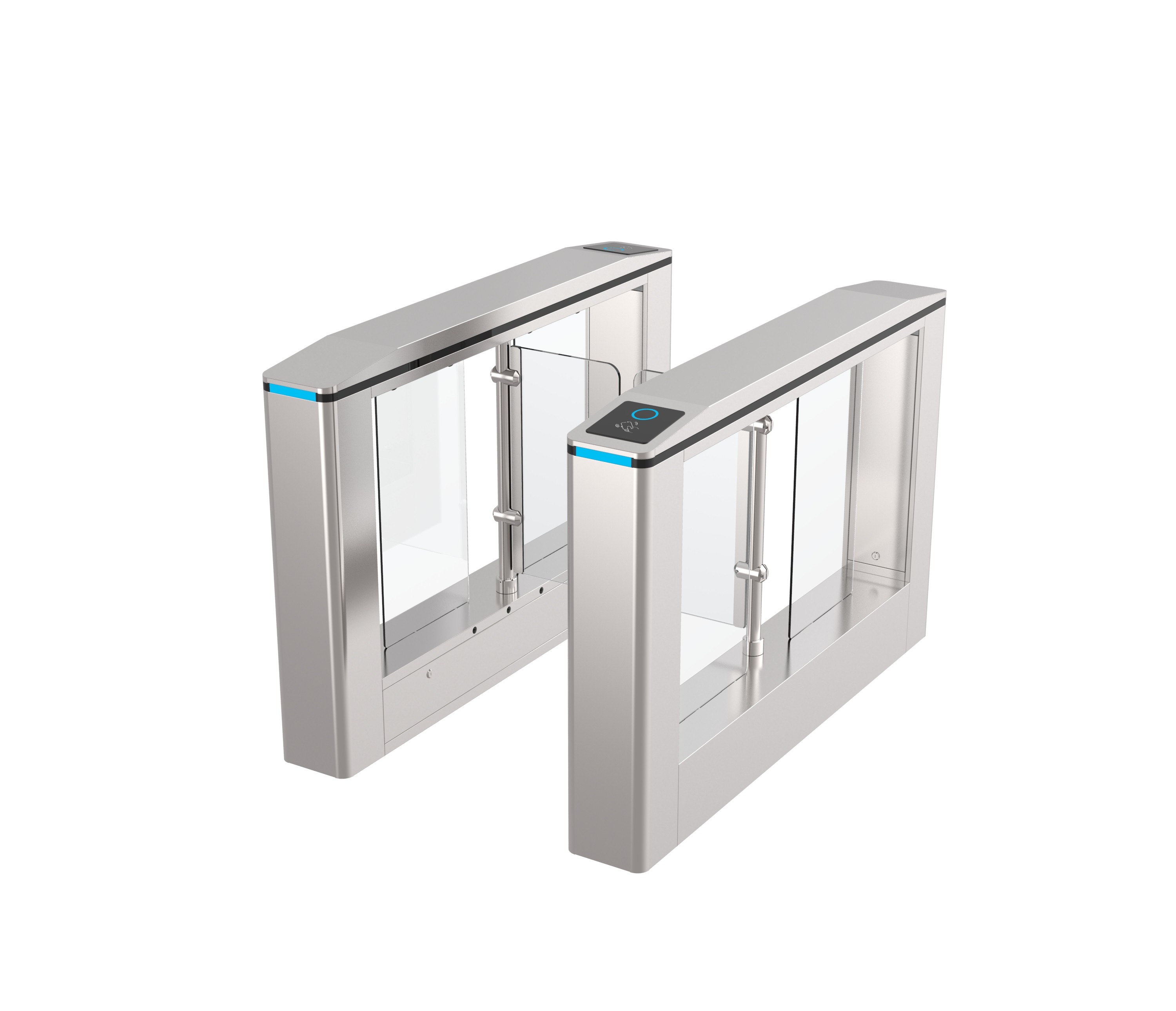

K324 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing. It could be used indoor and outdoor



Model Number: K324
Product Size: 1500*200*980mm
Pass Width: 600mm
Net Weight: 65kg
Thickness: 1.5mm
Material: SUS 304 Hailine 400#
Top cover Material: Acrylic+1.5mm SUS304
Filling Panel Material: 10mm Transparent Acrylic
Arm Material: 10mm Transparent Acrylic
Driver: Brushless Motor
Infrared Sensor: 14 pairs
Pass rate: 35-40p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles



Feature

  • Traffic light indicating passenger access

  • Automatic detection for malfunctions

  • Input interface available for dry contact and switch signal connection

  • Adjustable auto-delay closing

  • Infrared photocells for safety access

  • Alarm for unauthorized access and no access

  • Auto-closing when power on

  • Free access when power off

  • Adjustable access directions

  • Emergency interface available

Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.

2. We use Baoxin Stainless steel, the best brand in China.

3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.

4. We take 3M glue imported from American instead of the glass glue which other counterparts use.

5. Germany “Optibelt” and American “Gates” is the belt we are using now.
