Tripod Turnstile Gate
Created with Pixso. RFID Fingerprint Solenoid Lock Tripod Turnstile Gate SUS304

RFID Fingerprint Solenoid Lock Tripod Turnstile Gate SUS304

Brand Name: Turboo
Model Number: EL128
MOQ: 1 PC
Price: Negotiation
Delivery Time: 7-10 days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Product Size::
480*280*960mm
Pass Width::
550mm
Net Weight::
42kg
Material::
1.0mm 304 SUS Hairline #400
Mechanism::
Solenoid Lock
Pass Rate:
30-35p/m
Power Supply::
100-240V(AC)
Operational Voltage::
24V(DC)
Max Power Consumption::
35w
Working Temperature::
-25 To +70 ℃
MCBF::
5,000,000cycles
Unlock Time::
0.2s
Frequency::
50-60HZ
Packaging Details:
Wooden box
Supply Ability:
1000 units per month
Highlight:

Solenoid Lock Tripod Turnstile Gate

,

RFID Fingerprint Tripod Turnstile Gate

,

SUS304 Access Control Turnstile Gate

Product Description

SUS304 RFID Fingerprint 220V Security Tripod Turnstile Mechanism





EL128 Tripod turnstile gate is a gate channel with simple shape, high cost performance, high safety and reliability, which can effectively realize single pass.The lock head and lock rod of the Tripod turnstile gate are made of 304 stainless steel, and the lock rod and lock head are welded evenly, beautiful, not easy to fall off,Dust-proof and waterproof ability,is of great adaptability to the environment, suitable for indoor and outdoor



Model Number: EL128
Product Size: 480*280*960mm
Pass Width: 550mm
Net Weight: 42kg
Material: 1.0mm 304 SUS Hairline #400
Mechanism: Solenoid Lock
Infrared Sensor: NA
Throughput rate: 30-35p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles
Unlock Time: 0.2s




OPERATING MODES:


1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS:



1.. Housing: Made in stainless steel AISI 304 o AISI316.

2.. Barrier swings-Acrylic, PC , stainless steel frame.

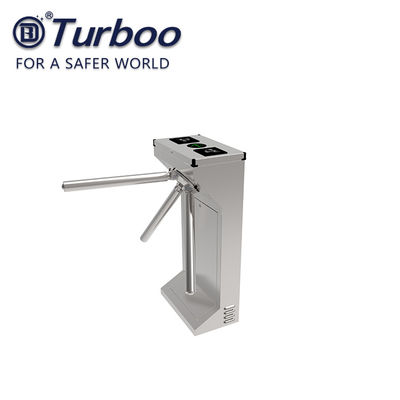

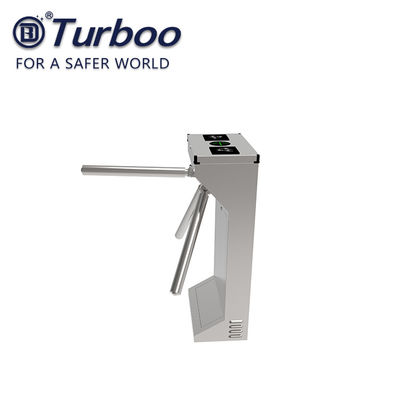

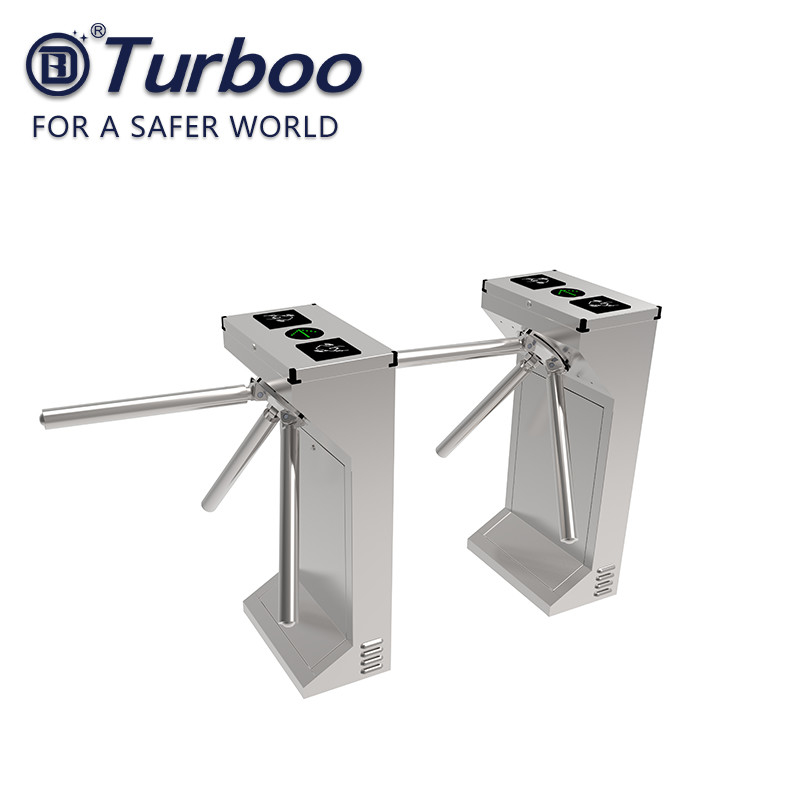

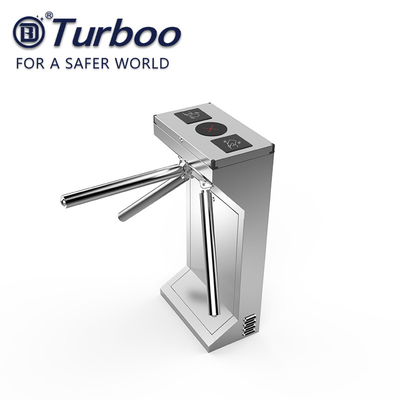

RFID Fingerprint Solenoid Lock Tripod Turnstile Gate SUS304 0RFID Fingerprint Solenoid Lock Tripod Turnstile Gate SUS304 1RFID Fingerprint Solenoid Lock Tripod Turnstile Gate SUS304 2RFID Fingerprint Solenoid Lock Tripod Turnstile Gate SUS304 3
