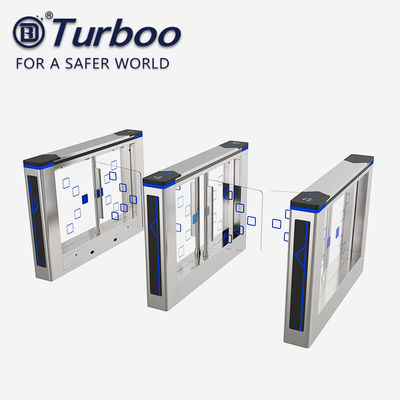

Optical Swing Barrier Gate Turnstile With Brushless Motor Wide Pass 900mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Size | 1400*185*980mm | Pass Width | 900mm |
|---|---|---|---|
| Material | 1.5mm Imported SUS 304 Snow Line Polish 400# | Top Cover Material | Acrlic With SUS |
| Input Voltage | 100-240V | Working Voltage | 24V |
| Pass Rate | 35-40 Persons/minute | Operating Time | 0.2 Seconds |
| Infared Sensro | 5 Pairs | MCBF | 5,000,000 Cycles |
| Motor | Brushless | ||
| High Light | Optical Swing Barrier Gate Turnstile,900mm Barrier Gate Turnstile,900mm Swing Barrier Gate |
||
Product Description
Optical Swing Barrier Gate Turnstile with Brushless Motor Wide Pass 900mm
Description
A327 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.
| Model Number: | A327 |
| Product Size: | 1400*185*980mm |
| Pass Width: | 900mm |
| Net Weight: | 69kg |
| Thickness: | 1.5mm |
| Material: | 1.5mm imported SUS 304 snow line Polish 400# |
| Top cover Material: | Acrlic with SUS |
| Filling Panel Material: | 10mm Acrylic |
| Arm Material: | 8mm Tempered Glass |
| Driver: | Brushless Motor |
| Infrared Sensor: | 6 pairs |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 35w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
OPERATING MODES:
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked
Our advantage:
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Meanwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
