| Brand Name: | Turboo |
| Model Number: | EL128 |
| MOQ: | 1 PC |
| Price: | Negotiation |
| Delivery Time: | 7-10 days |
| Payment Terms: | L/C, T/T |

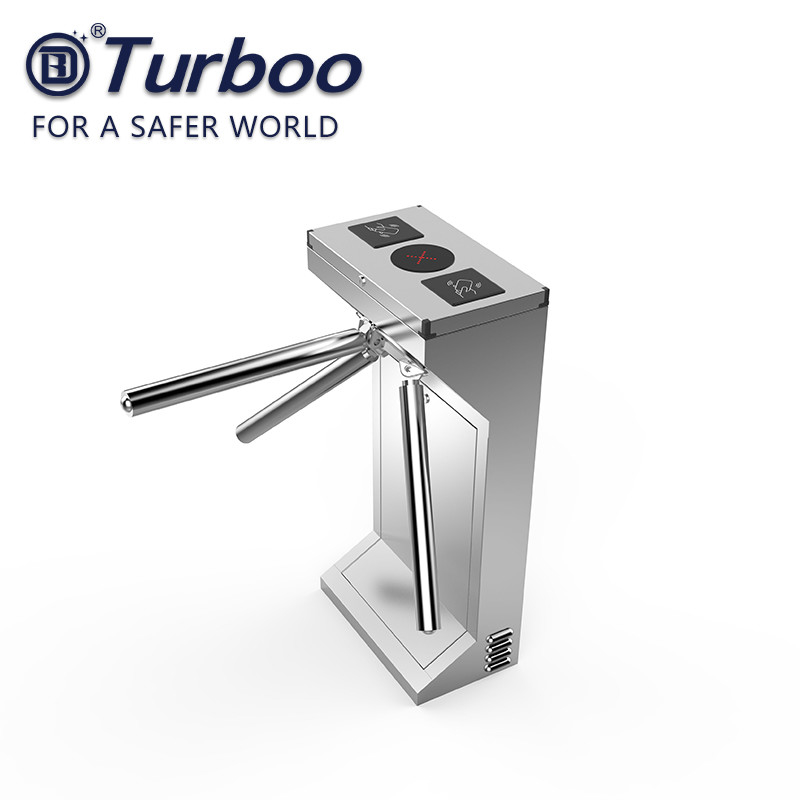

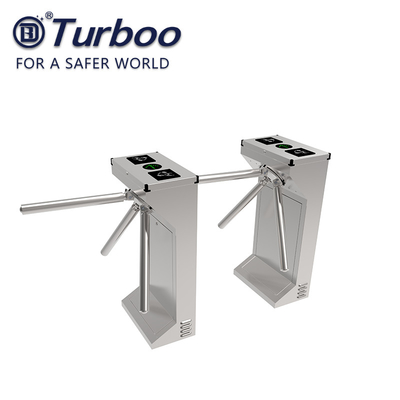

EL128 Tripod turnstile gate is a gate channel with simple shape, high cost performance, high safety and reliability, which can effectively realize single pass.The lock head and lock rod of the Tripod turnstile gate are made of 304 stainless steel, and the lock rod and lock head are welded evenly, beautiful, not easy to fall off,Dust-proof and waterproof ability,is of great adaptability to the environment, suitable for indoor and outdoor.
| Model Number: | EL128 |
| Product Size: | 480*280*960mm |
| Pass Width: | 550mm |
| Net Weight: | 42kg |
| Material: | 1.0mm 304 SUS Hairline #400 |
| Mechanism: | Solenoid Lock |
| Infrared Sensor: | NA |
| Throughput rate: | 30-35p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 35w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
| Unlock Time: | 0.2s |
OPERATING MODES:
1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked
MATERIALS:
1.. Housing: Made in stainless steel AISI 304 o AISI316.
2.. Barrier swings-Acrylic, PC , stainless steel frame
