3 Arms Tripod Turnstile Gate Arm Drop Semi Automatic Turnstile With Hydraulic Damper

Place of Origin Guangdong China(Mainland)
Brand Name Turboo
Certification ISO9001 & CE & RoHS
Model Number Y148
Minimum Order Quantity 1 PC
Price Bargain
Packaging Details Wooden Case Package
Delivery Time 7 days
Payment Terms L/C, T/T
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material 1.2mm SUS304 Hairline 400# Size 1200*280*980mm
Unlock Time 0.2s Pass Width 550mm
Pass Rate 35p/m Operational Voltage 24V
Power Supply 100-240V(AC) Environment -25~+70℃
Power Consumption 35W Communication RS485 & Dry Contact
High Light

3 Arms Tripod Turnstile Gate


Arm Drop Tripod Turnstile Gate


3 Arms Semi automatic Turnstile

Leave a Message
Product Description

3 Arms Tripod Turnstile Gate Arm Drop Semi-automatic Turnstile with Hydraulic Damper
Tripod Turnstile gate is a robust, and Time-tested half height turnstile model design popular among organizations worldwide. It has a compact overall housing. More than a thousand personnel pass through turnstile gates daily, therefore it is crucial to select a turnstile that robust and compatible with your pedestrian access control needs.
They are often deployed as a compact access control alternative to a more extensive Full height turnstile solution in various facilities, such as Schools, Medical Facilities, Exhibition & Convention Centers, Museums, Amusement parks and Fitness facilities.
Tripod Turnstile Description
Y148 model tripod turnstile gate can be widely used in Outdoor public place,Scenic area,Factory,Residential area for access management.
The 3 arm tripod turnstile can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries,interfaced with a PC through a RS232(RS485,TCP-IP)line

Tripod Turnstile Model Number:Y148
3 arm gate Size:1200*280*980mm
Turnstile Pass Width:550mm
Net Weight:40kg
Turnstile Cabinet Thickness:1.2mm
Top cover Material of Turnstiles:sus304
Gate Arm Material:sus201
Turnstile Driver:mechanism
Infrared Sensor:N/A
Pass rate:30-35p/m
Power Supply:100-240V(AC)
Operational Voltage:24V(DC)
Working Temperature:-25 to +70 ℃
MCBF:10,000,000 cycles

Access Control Turnstile Gate Features and Benefits
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• Anti-rust and Anti-corrosion
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• Automatic resent function, if doesn’t pass through within the given time, the permission will be automatically cancelled and the arm will be restored
Compatible with various control methods, including remote control, push buttons, IC or ID Card Reading Devices, etc.
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
Highlight LED indicator, indicate more eye-catching.

Our advantage:

1. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
2. We use Baoxin Stainless steel, the best brand in China.
3. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
4. Germany “Optibelt” and American “Gates” is the belt we are using now.
5. We take 3M glue imported from American instead of the glass glue which other counterparts use.

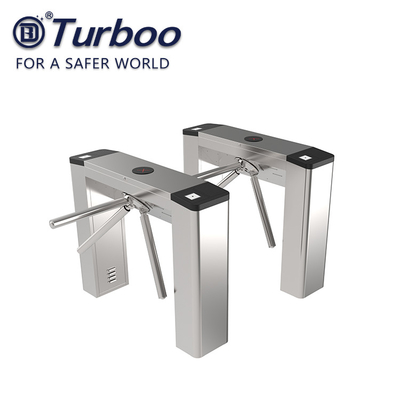

3 Arms Tripod Turnstile Gate Arm Drop Semi Automatic Turnstile With Hydraulic Damper 0

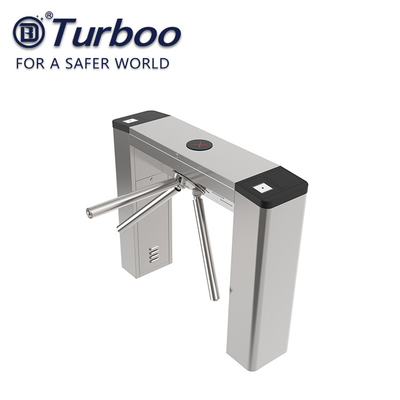

3 Arms Tripod Turnstile Gate Arm Drop Semi Automatic Turnstile With Hydraulic Damper 1

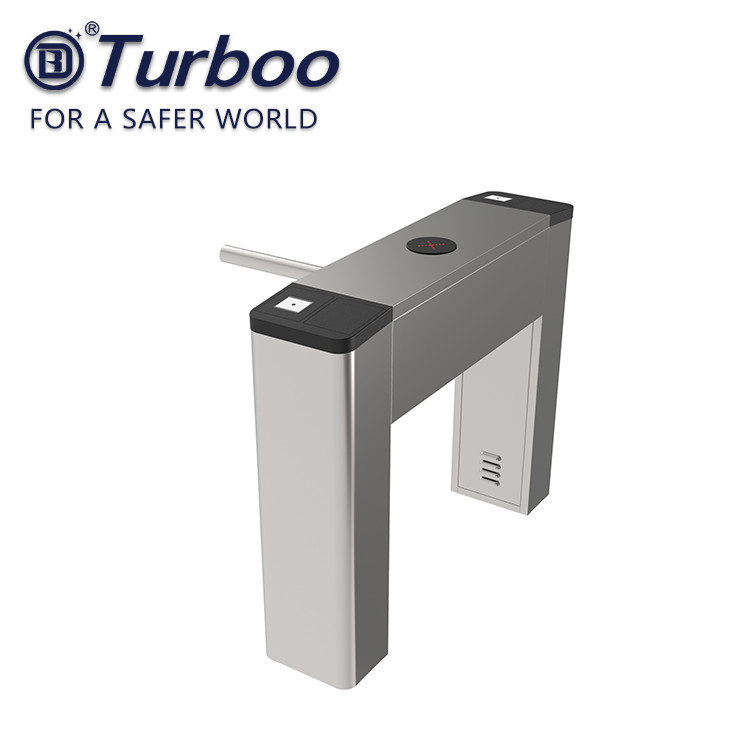

3 Arms Tripod Turnstile Gate Arm Drop Semi Automatic Turnstile With Hydraulic Damper 2
