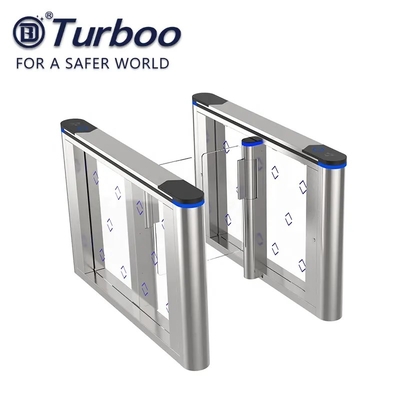

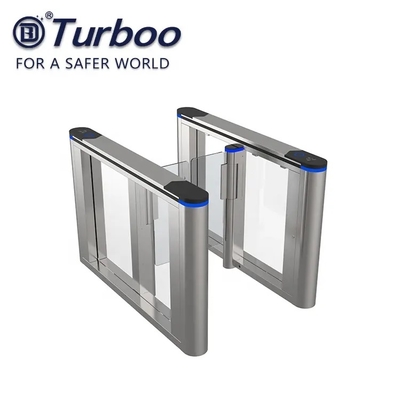

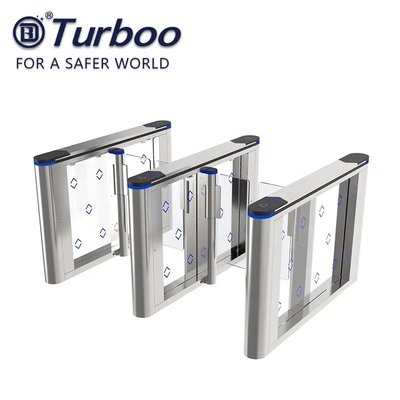

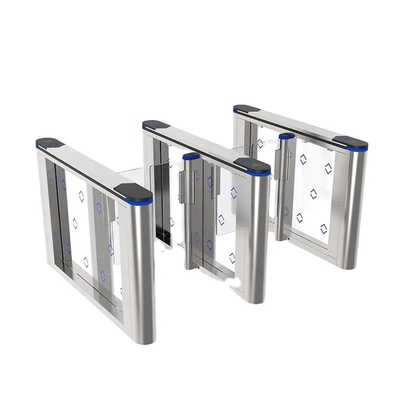

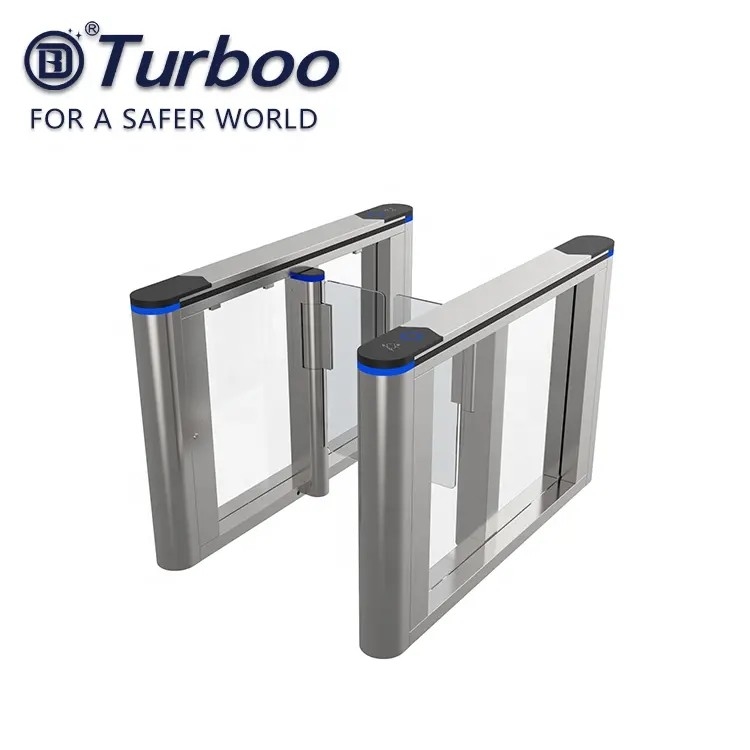

High Security Swing Turnstile Barrier Fully Automatic Access Control With QR Code Reader
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | B302 | Material | 1.5mm Imported SUS 304 Polish 400# Snow Line + Top Cover: Acrylic And 1.5mm SUS + Filling Panel: 10mm |
---|---|---|---|
Motor | Servo Brushless Motor | Machine Size | 1500*150*980mm |
Pass Width | 600~900mm | MCBF | 5,000,000 Cycles |
Power Input | AC100-240V; 50/60HZ | Passage Throughout | 35-40 Persons/minute |
Environment | -25~+70℃ | Application | Commercial Buildings, Community, Airports, Hotels, Gyms, Etc |
Warranty | One Year Or Two Years | ||
High Light | High Security Swing Turnstile Barrier,Fully Automatic Swing Turnstile Barrier,Commercial buildings Swing Turnstile Barrier |
High Security Fully Automatic Access Control QR code reader Swing Turnstile Barrier Speed Gate
Features and Benefits
Speed gate is the most correct choice for to be used in, especially holding entrances, banks, anywhere needs to have luxurious, precious and prestigious image. Bi-directional switching is possible. All kinds of transmission control devices such as card readers, fingerprint or face recognition, can be integrated into the turnstile via dry contact. Wings of the speed gate moves quickly under favor of the motor. Metal parts made of (304 AISI) stainless steel as well, also wings and top table manufactured from 10 mm tempered glass.
Swing gate technology allows for an extremely narrow and open pedestal design. The glass barriers swing down the length of the pedestal, closing behind an authorized person, thereby deterring any authorized entry or tailgating. The swing gate technology puts a premium on aesthetics and ease of use.
Swing Turnstiles offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The B302 is an attractive swing turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.
Communication
• Dry contact relay with 12 volt or 24 volt pulse
• Rs485, or Tcp-lp communication with computer
Technical Date | B302 |
Passage width | 600~900mm |
Throughput rate | 35-40persons/minute |
Power supply | 100-240V |
Operational voltage | 24V |
Operating time | 0.2S |
Frequency | 50-60hz |
Pretection level | 44ip |
Working temperature | -25~+70℃ |
Dimension | 1500*150*980mm |
Case Pictures
