Half Height Tripod Turnstile Gate Outdoor IP56 3 Arms Semi Automatic Turnstiles

Place of Origin Guangdong China(Mainland)
Brand Name Turboo
Certification ISO9001 & CE & RoHS
Model Number EF1213
Minimum Order Quantity 1 PC
Price Bargain
Packaging Details Wooden Case Package
Delivery Time 7 days
Payment Terms L/C, T/T
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Size 600*130*980mm Material 1.5mm Cold Rolling Sheet With Painting
Pass Width 550mm Unlock Time 0.2s
Pass Rate 35p/m Operational Voltage 24V
Environment -25~+72℃ Power Consumption 35W
Power Supply 100-240V(AC) Communication RS485 & Dry Contact
High Light

Tripod Turnstile Gate IP56


550mm Semi Automatic Turnstiles


3 Arms Semi Automatic Turnstiles

Leave a Message
Product Description

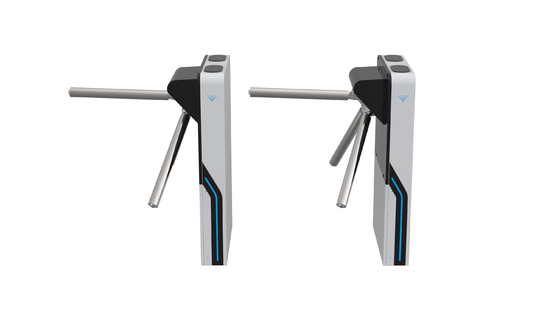

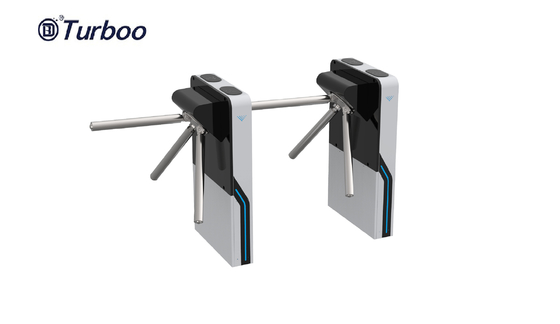

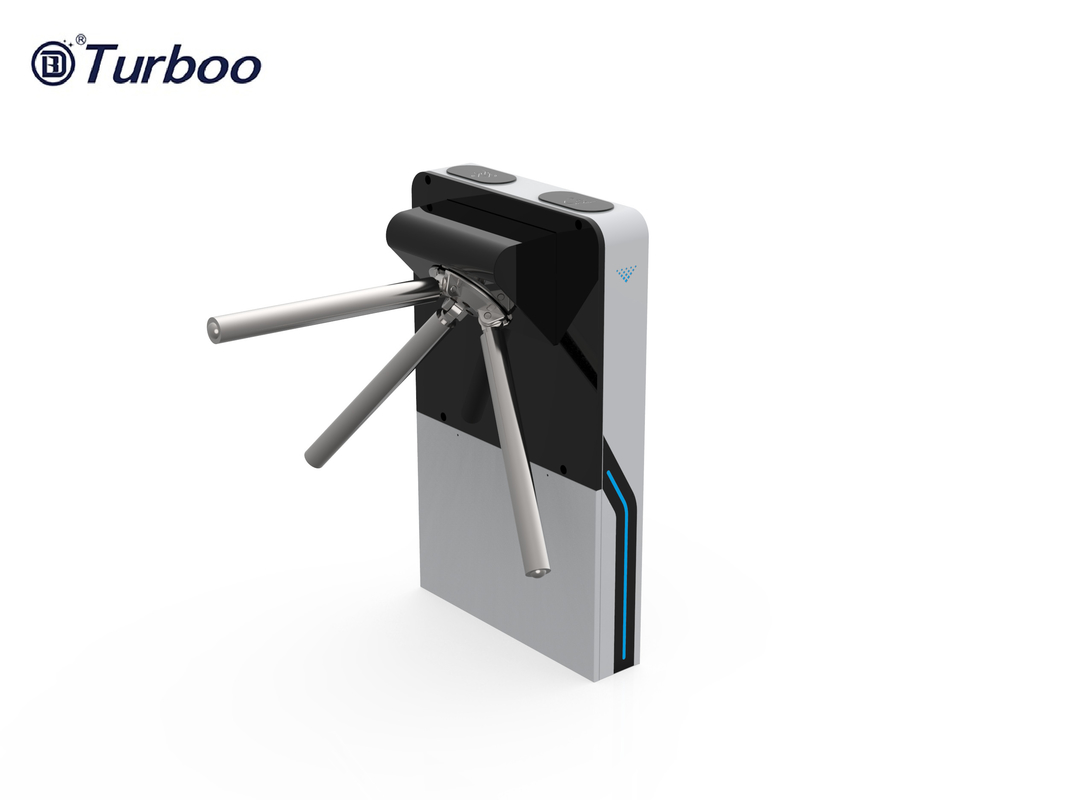

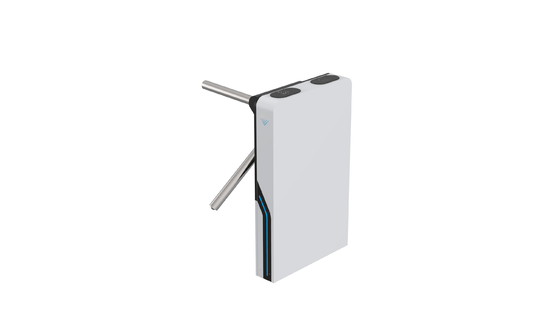

Half height Tripod Turnstile Gate 3 Arms Semi Automatic Turnstile Outdoor IP56
3 Arms Tripod Turnstile gate is a robust, this model it has a compact overall housing. and Time-tested half height turnstile model design popular among organizations worldwide.  More than a thousand personnel pass through turnstile gates daily, therefore it is crucial to select a turnstile that robust and compatible with your pedestrian access control needs.

They are often deployed as a compact access control alternative in various facilities, such as Schools, Amusement parks, Medical Facilities, Exhibition & Convention Centers, Museums, and Fitness facilities.
Half height turnstile Tripod Turnstile Description
Tripod turnstile gate can be widely used in Outdoor public place,Scenic area,Factory,Residential area for access management, and there is IP56 ceteficate.
The 3 arm tripod turnstile can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries,interfaced with a PC through a RS232(RS485)line

Tripod Turnstile Model Number: EF1213
3 arm half turnstile gate Size: 600*130*980mm
Tripod Turnstile Pass Width: 550mm
Tripod gate Net Weight: 40kg
Turnstile Cabinet Thickness: 1.5mm
Tripod turnstile Material: cold rolling sheet with painting
Top cover Material of Turnstiles: White color cold rolling sheet with painting
Gate Arm Material: SUS201
Tripod Turnstile Driver: mechanism
Infrared Sensor: N/A
Pass rate: 30-35p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Frequency: 50-60hz
Working Temperature: -25 to +72 ℃
MCBF: 10,000,000 cycles

Access Control Turnstile Gate Features and Benefits
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
There is LED indicator light on the cover of the box. When the card is used, green arrow will indicate the direction of passage.If brush illegal card, then prompt Red Cross LED light.
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
With automatic reset function, that is, after obtaining the power over the gate, there is no power over the gate within the set time, the tripod turnstile gate automatically canceling the power, and the lock state is restored.
• Automatic resent function, if doesn’t pass through within the given time, the permission will be automatically cancelled and the arm will be restored
Compatible with various control methods, including remote control, push buttons, IC or ID Card Reading Devices, etc.
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
Highlight LED indicator, indicate more eye-catching.

Our advantage:

1. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
2. We use Baoxin Stainless steel, the best brand in China.
3. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
4. Germany “Optibelt” and American “Gates” is the belt we are using now.
5. We take 3M glue imported from American instead of the glass glue which other counterparts use.
