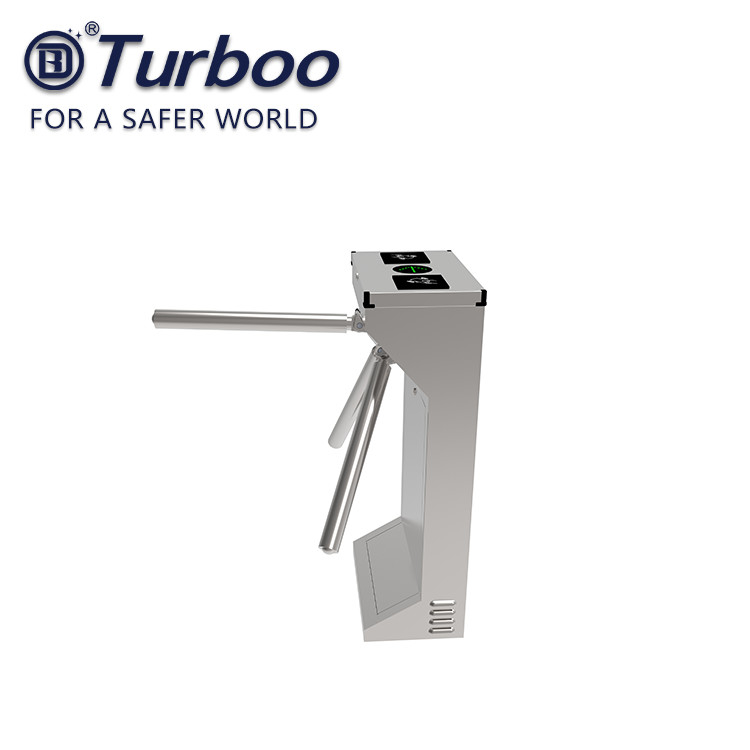

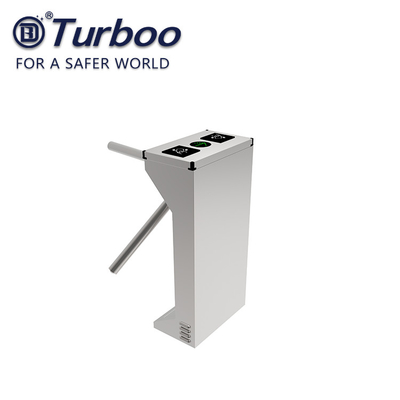

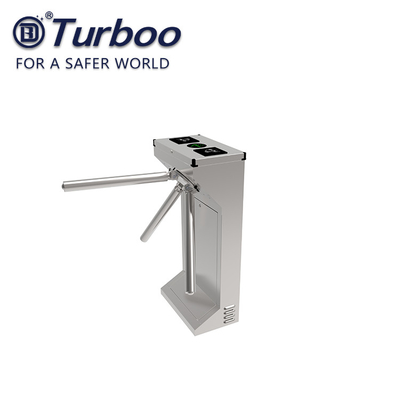

RS485 Tripod Turnstile Gate Stainless Steel For Football Stadium Ticket
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Size | 480x280x960mm | Material | 1.2mm SUS 304 Hairline 400# |
|---|---|---|---|
| Arm Material | SUS201 (SUS304 Opetional) | Thickness | 1.2mm |
| Pass | Bi-directional | Pass Width | 550mm Or Customized |
| Throughput Rate | 35p/m | Warranty | 12 Months |
| Arm Length | 510mm | Communication | RS485 Communication |
| High Light | RS485 Tripod Turnstile Gate,Stadium Ticket Tripod Turnstile Gate,Football Tripod Turnstile Gate |
||
Product Description
RS485 Tripod Turnstile Gate Stock Sell Stainless Steel Gate / Football Stadium Ticket Turnstile
Turboo 3 arms Tripod turnstile lock head and brake leverare made of 304 stainless steel, and thebrake rod and the lock head are evenlywelded, beautiful and never fall off. Most ofthe brake rods used in the same industry arecast iron pit lock screws. This structure isused for a long time. Will cause the brake rodto fall, rust, and the strength does not allowstainless steel.
Tripod turnstile classification: It is divided into mechanical, semi-automatic and fully automatic from the control mode of the movement
|
Tripod turnstile Model Number: |
EL128 |
|
Tripod turnstile Product Size: |
480*280*960mm |
|
Pass Width of 3 arms gate : |
550mm or customized |
|
Net Weight: |
35kg |
|
Thickness of 3 arms turnstile : |
1.2mm |
|
Vertial tripod turnstile Material: |
SUS304 hairline 400# |
|
Arm Material of tripod turnstile: |
SUS201( optional SUS304) |
|
Throughput rate: |
35p/m |
|
Power Supply: |
100-240V(AC) |
|
Operational Voltage: |
24V(DC) |
|
Max Power Consumption: |
35w |
|
Frequency: |
50-60hz |
|
Working Temperature: |
-25 to +70 ℃ |
|
MCBF: |
5,000,000cycles |
Tripod turnstile functions & features:
*The movement design is reasonable and reliable, the noise is small, theinternal hydraulic device is automatically buffered, the operation is stableand the service life is long.
* With power-off lever function, remote control can also be added for off-barcontrol, which is convenient for management and handling of unexpectedevents
* There is an LED indicator light on the lid of the box. When the card is validthere will be a green arrow indicating the direction in which it can pass; if thecard is illegal, the red LED will be prompted.
* It can be set to "with memory" or not with memory (when set to "withmemory", it can be used for occasions where there are too many grouptickets in the scenic spot).
* With automatic reset function, after obtaining the permission of opening thegate, there is no over-closing within the set time, and the three-roller gateautomatically cancels the current permission and returns to the locked state.
* Waterproof, sunscreen, cold resistant, high temperature resistant.
*With a personalized installation interface, compatible with IC, ID card andother smart cards.
* With a unified, standard external electrical interface, can be freely attachedto a variety of reading and writing devices, to facilitate system integration.
* Can be extended to an automatic identification system to achieve accesscontrol, attendance, charging and other functions.
Can be used with other types of channel products
